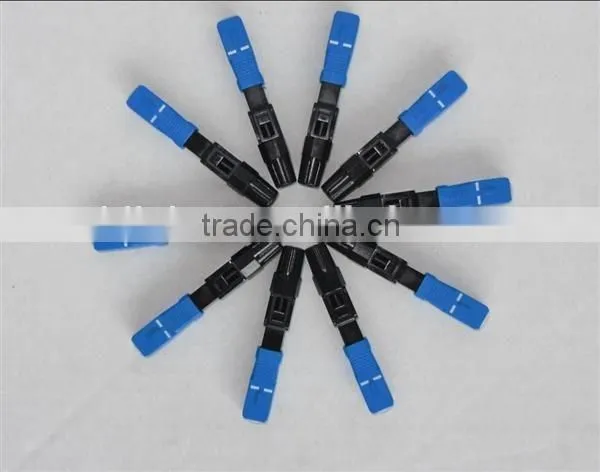

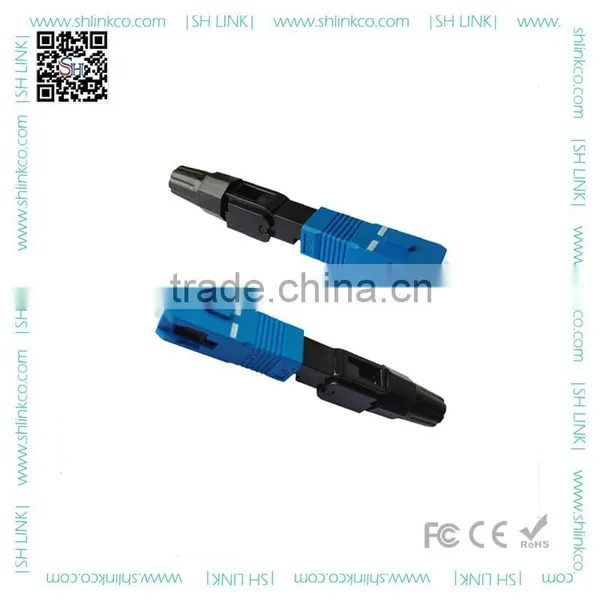

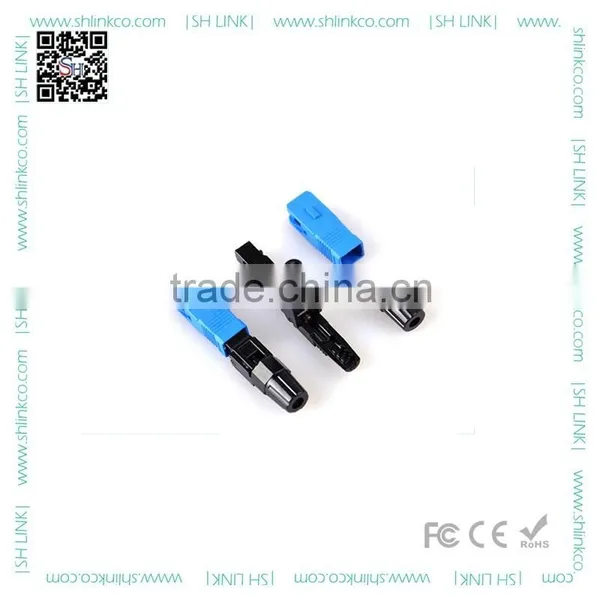

Factory supply passive accessories Fiber optic LC/FC/SC/ST/E2000 fast connector
Simple Description

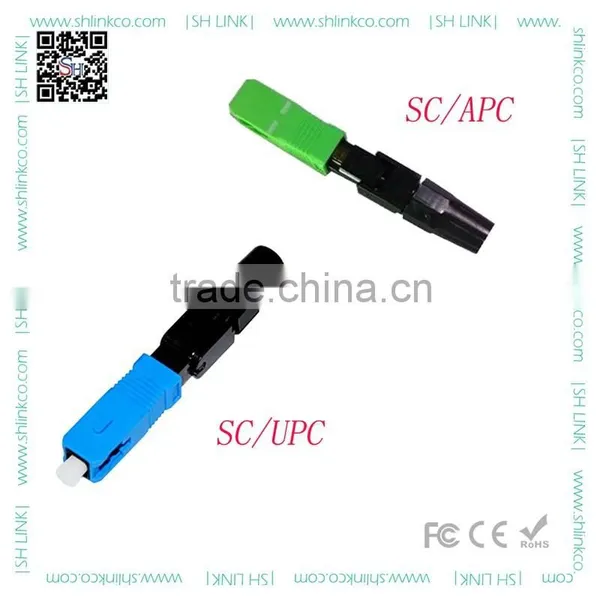

Fast connector is a good solution to the job site wiring and FTTH project. It has been widely applied to the construction site where needed fast connection. Fast connector is no need to be fixed by glue and without grinding to provide a quick help for line installation and FTTH project. SC/FC/ST/LC/MU/E2000/MTRJ...various fast connector are optional in SH Link.
Features
- Low insertion loss
- High return loss (low amounts of reflection at the interface)
- Ease of installation
- Low cost
- Reliability
- Low environmental sensitivity
- Ease of use
- Speed Installation
- Temperature: -40~85C
- Loss: <=0.3dB(MAX0.5)
- Weight:0.03kg
Specifications
Item |
Parameter |
|
Fiber type |
SM |
MM |
Insertion Loss |
≤0.5dB |
≤0.5dB |
Return Loss |
≤-50dB(PC)≤-60dB(APC) |
≤-25dB |
Mechanical Durability |
0.25 Db MAX. |
0.15 Db MAX. |
Durine |
NOM.≤90S |
|
Outer Diameter of cable |
0.9mm,2.0mm,3.0mm,2*3.0mm |
|
Working Temperature |
-40~+85℃ |
|
Storage temperature |
-40~+85℃ |
|
Applications
Fiber Optical connectors are used to join optical fibers where a connect/disconnect capability is required. Due to the polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are generally assembled onto optical fiber in a supplier’s manufacturing facility. However, the assembly and polishing operations involved can be performed in the field, for example, to make cross-connect jumpers to size.
Most optical fiber connectors are spring-loaded, so the fiber faces are pressed together when the connectors are mated. The resulting glass-to-glass or plastic-to-plastic contact eliminates signal losses that would be caused by an air gap between the joined fibers.
Every fiber connection has two values:
1. Attenuation or insertion loss
2. Reflection or return loss.
Specific Application
to open FTTH optical terminal to terminal
connection box, cabinet, terminal box terminal
recovery, maintain the broken fiber and other accidents.
LAN, Wan, data and video transmission
the construction and maintenance of the terminal user access.
optical access mobile base station

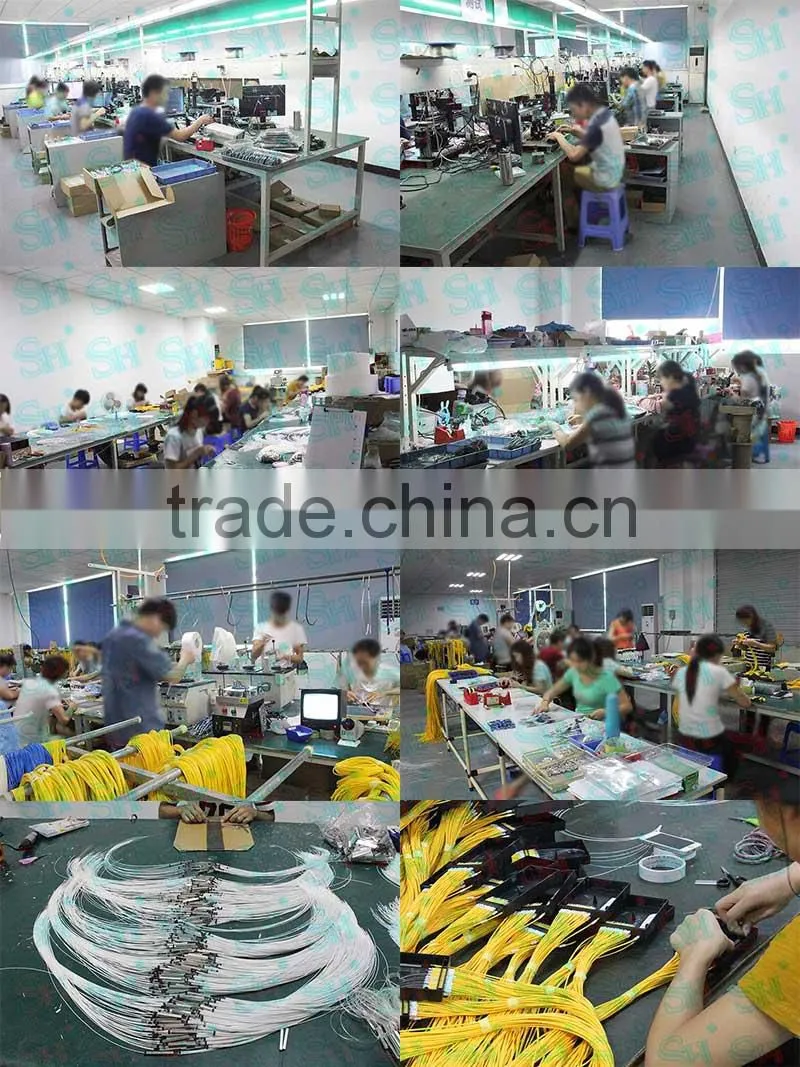

Factory

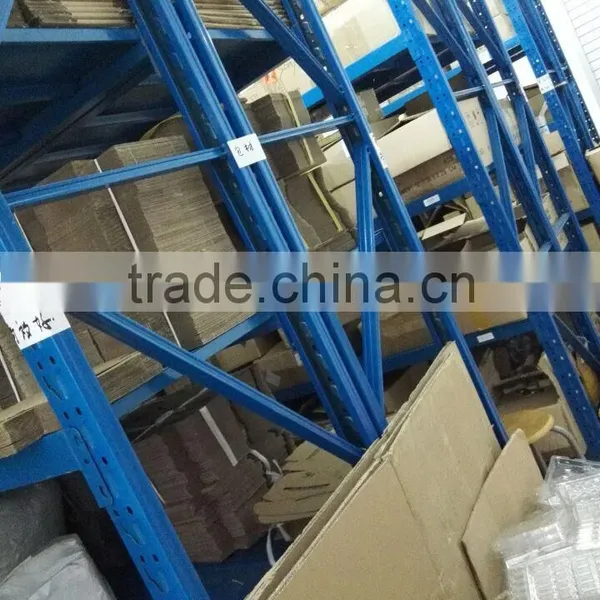

Shipping
Various transportations are available, we'll arrange one according to your request.
FAQ
1. Are you a factory?
Yes, we are a factory.
2. What's your MOQ?
To better achieve customers' satisification, we accept sample orders, even one pc.
3. What's your lead time?
Generally, the lead time is 2~4 days for samples, 5~10 days for bulk order. It will be reconfirmed after the order is placed.
4. Do you accept OEM/ODM services?
Yes, OEM/ODM services are available. Customised order are welcome.
5. How can I apy?
