Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > G657A 1x4 PLC Splitter ABS Box

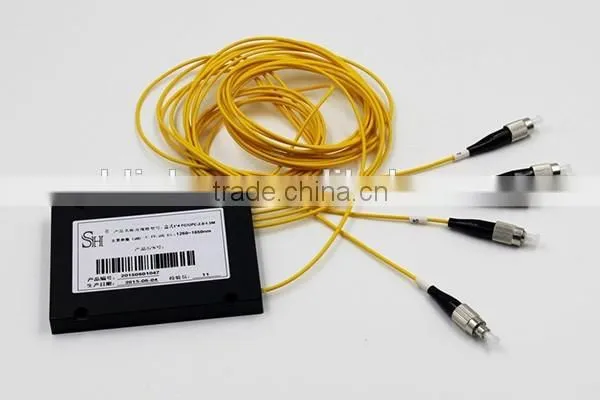

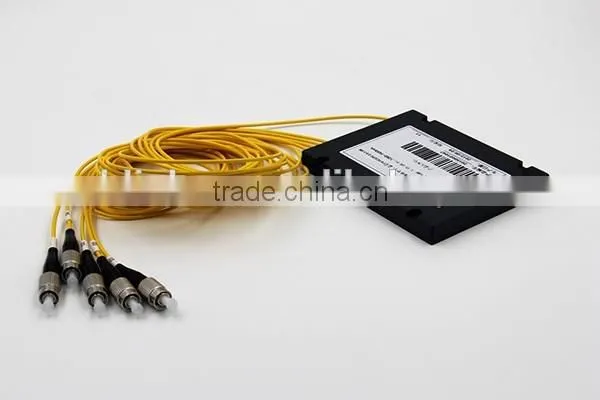

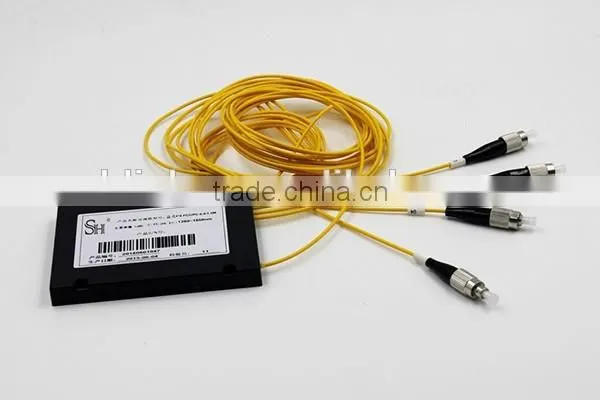

G657A 1x4 PLC Splitter ABS Box

G657A 1x4 PLC Splitter ABS Box thumbnail-3

G657A 1x4 PLC Splitter ABS Box thumbnail-4

G657A 1x4 PLC Splitter ABS Box thumbnail-5

G657A 1x4 PLC Splitter ABS Box thumbnail-6

US$ 8.80 - 8.90 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

SH-PLC1B4

Contact Supplier Request Quote Chat Now

Shenzhen SH Link Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SH

Model Number SH-PLC1B4

Hot selling 1x4 PLC Splitter ABS Box

Product Description

SH PLC splitter in ABS box package offers the input and output of 2.0 or 3.0 fiber, and different connector options like SC, FC, LC, or ST etc. and polishing of PC, UPC, or APC.

PLC (Planar Lightwave Circuit) Splitter, adopting semiconductor technology (lithography, etching, develope technology), offers accurate and even splits with minimal loss in an efficient package. It complies with Telcordia GR-1209-CORE and Telcordia GR-1221-CORE-, widely used in fiber optic cabling.

Features

> Compact package, suitable for density applications

> Wide temperature range (-40 to 85 °C), allowing to deploy in the areas of extreme climate

> Split ratio up to 64, providing a high reliability

> Wide range of wavelengths (1260 – 1650 nm), easy to adjust

> Low insertion loss and Polarization Dependent Loss

> Fiber input: 0.9 mm, 2.0mm or 3.0mm fiber available

> Fiber output: 0.9 mm, 2.0mm or 3.0mm fiber available

> FC, SC, ST, LC…available

Application

> Fiber to the point (FTTX)

> Fiber to the home (FTTH)

> Passive optical networks(PON, GEPON)

> Local area networks (LAN)

> Cable television (CATV)

> Telecommunication Networks

Specification

Parameter	Port Configuration
Parameter	1X2	1X4	1X8	1X16	1X32	1X64
Fiber Type	G.657A
Connector	FC, SC, ST, LC…
Operating Wavelength(nm)	1260~1650
Insertion Loss(dB)	3.8	7.1	10.2	13.5	16.5		20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5		2.0
Return Loss (dB)	55	55	55	55	55		55
PDL (dB)	0.2	0.2	0.2	0.25	0.3		0.35
Directivity (dB)	55	55	55	55	55		55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5		0.8
Temperature Dependent Loss(-40~+85°C)	0.4	0.4	0.4	0.5	0.5		0.5
Operating Temperature (°C)	-40~+85°C
Storage Temperature (°C)	-40~+85°C

Product

Delivery

standard carton box and neutral packing

1-3 days for samples; 5-10 days for bulk orders
