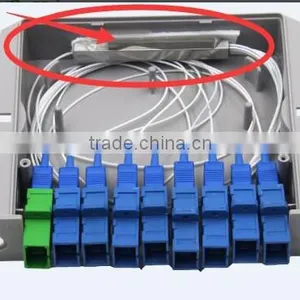

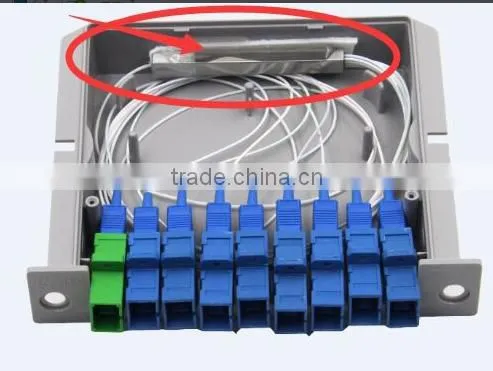

Hot Selling 1x8 Plug-in Box SC PLC Splitter
PLC (Planar Lightwave Circuit) Splitter, adopting semiconductor technology (lithography, etching, developer technology), offers accurate and even splits with minimal loss in an efficient package. It complies with Telcordia GR-1209-CORE and Telcordia GR-1221-CORE-, widely used in fiber optic cabling.

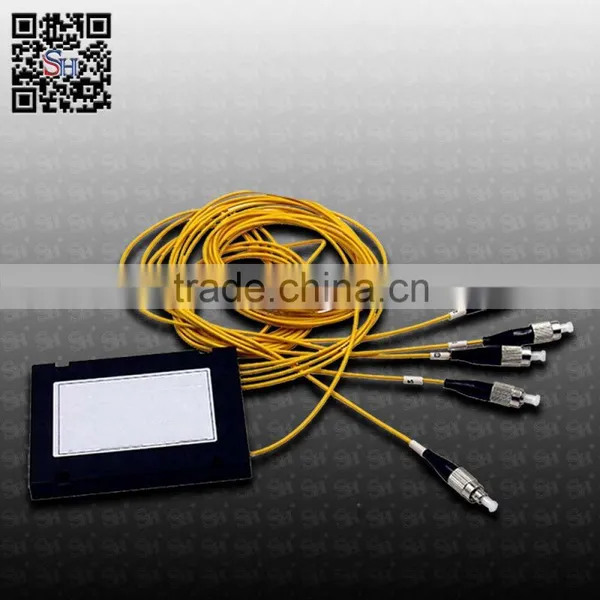

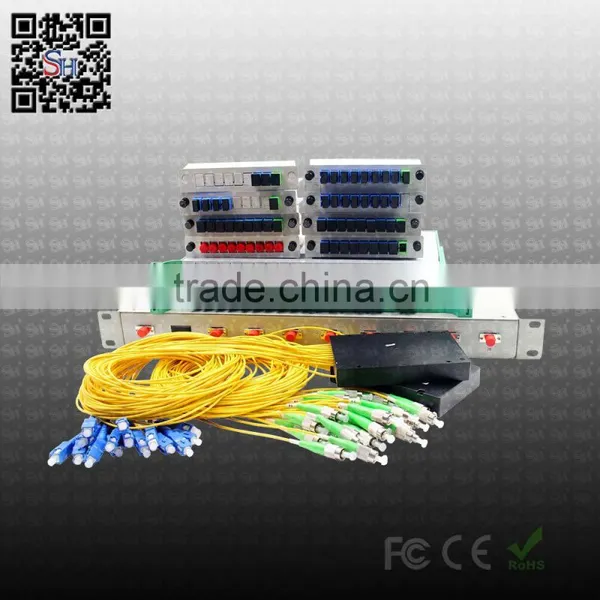

SH provides various kinds of PLC splitter,including:bare fiber type,blockless type,PLCS in plug-in plastic box,PLCS in ABS box,tray type,19”standard rack type.SH PLC Splitter provides 1xN(N up to 64),or 2xN optional.
Fearures
- Compact package, suitable for density applications
- Wide temperature range (-40 to 85 °C), allowing to deploy in the areas of extreme climate
- Split ratio up to 64, providing a high reliability
- Wide range of wavelengths (1260 – 1650 nm), easy to adjust
- Low insertion loss and Polarization Dependent Loss
- Fiber input: 0.9 mm, 2.0mm or 3.0mm fiber available
- Fiber output: 0.9 mm, 2.0mm or 3.0mm fiber available
- FC, SC, ST, LC…available
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
- Local area networks (LAN)
- Cable television (CATV)
- Telecommunication Networks
Parameter |
Port Configuration |
||||||
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
||
Fiber Type |
G.657A |
||||||
Connector |
FC, SC, ST, LC… |
||||||
Operating Wavelength(nm) |
1260~1650 |
||||||
Insertion Loss(dB) |
3.8 |
7.1 |
10.2 |
13.5 |
16.5 |
20.5 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
PDL (dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.8 |
|
Temperature Dependent Loss(-40~+85°C) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~+85°C |
||||||
Storage Temperature (°C) |
-40~+85°C |
||||||
Products
Packing & Delivery
standard carton box and neutral packing
1-3 days for samples; 5-10 days for bulk orders
