China Steel Cutting Disc Price

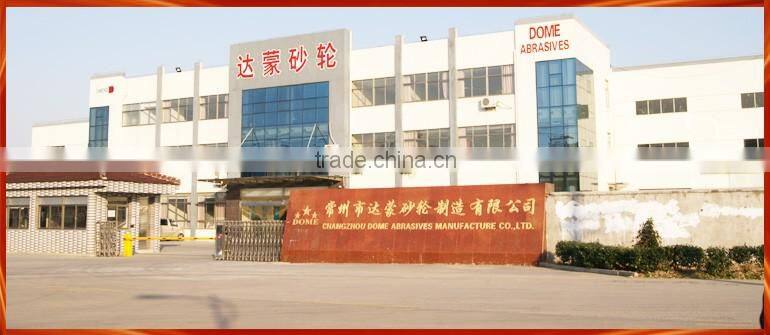

COMPANY PROFILE
We are a manufacturer and exporter of china cutting disc, Super Thin Cutting Wheel, Grinding Wheel, Flexible Grinding Disc, Flap Disc, specially engaged in the manufacture of resin bonded cutting and grinding wheel, 20 years experience. DOME abrasives have got the certificate of ISO9001:2008, and all abrasives are strictly produced
according to EN12413, goods quality can meet EU and USA market request.
DOME have set up businesss relationship with customers more than 50 countries all over the world.
The main markets are from America, South East, Mexico, Europe and Australia. The cutting disc we produced is characterized by its high quality, safe, sharp. Compared with the other brands, CNDOME brand costs less per piece and works much longer due to its imported Germany resin. Our products are smooth and durable and have a long enjoyed great fame both at home and abroad, expecially in USA, Mexico, and Bangladesh. Abrasives we quoted are all made of the best grit and of various kinds of styles and colors in order to meet the requirements of all walks of life in your country.
CNDOME brand are competitive in the international market and are the best-selling products, Owing to its superior quality and reasonable price, our steel cutting disc has met with a warm reception and quick sale in most America countries, also in South East countries.
TRADING COUNTRIES
CNDOME is the leading brand for the development, prodcution and support, as well as the distribution of tool solutions for surface finishing and material cutting.
In keeping with a tradition that dates back more than 20 years, DOME operates as an independent, internationally oriented family-owned company in the long term.
DOME abrasives offer the user maximum benefit and cost-effectiveness.
Its unlimited commitments to premium quality, its reliability as a supplier, and its responsible use of resources all make DOME a dependable and reliable trading partner that operates with sustainability in mind.
All those involved in DOME play their part in securing DOME's position as an internationally valued premium brand. Thanks to their personal involvement, people across the whole world trust blue and choose CNDOME.

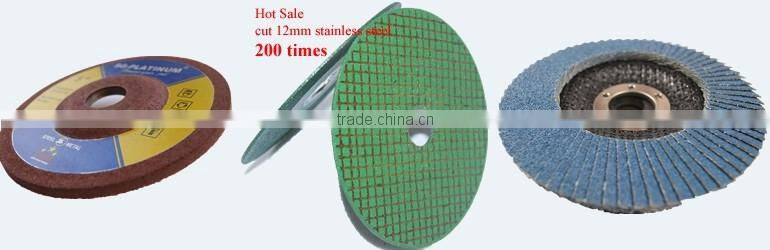

PRODUCT SIZE

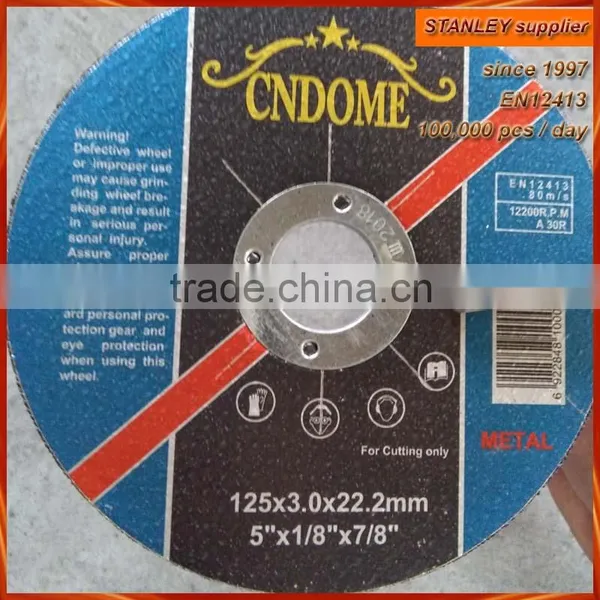

CUT-OFF WHEELS/SUPPER THIN CUTTING DISC SIZE:
| 4 INCH | 4.5INCH | 5INCH | 6INCH |
| 100X1X16 | 115X1X22.2 | 125X1X22.2 | 150X1.6X22.2 |
| 100X1.2X16 | 115X1.2X22.2 | 125X1.2X22.2 | 150X2.0X22.2 |
| 100X1.6X16 | 115X1.6X22.2 | 125X1.6X22.2 | 150X3.0X22.2 |
| 105X1X16 | 115X2.0X22.2 | 125X2.0X22.2 | |
| 105X1.2X16 | 115X3.0X22.2 | 125X2.5X22.2 | |
| 105X1.6X16 | 125X3.0X22.2 | ||
| 107X1X16 |
| 7INCH | 9INCH | 12INCH | 14INCH | 16INCH |
| 180X1.6X22.2 | 230X1.9X22.2 | 300X3X25.4(32) | 355X2.5X25.4(32) | 400X3X25.4(32) |
| 180X2.0X22.2 | 230X2.0X22.2 | 355X3.0X25.4(32) | ||
| 180X2.5X22.2 | 230X2.2X22.2 | |||
| 180X3.0X22.2 | 230X2.5X22.2 | |||
| 230X3.0X22.2 |
GRINDING WHEEL SIZE:
| 4INCH | 4.5INCH | 5INCH | 6INCH | 7INCH | 9INCH |
| 100X4X16 | 115X6X22.2 | 125X6X22 | 150X6X22 | 180X6X22 | 230X6X22.2 |
| 100X6X16 |
FLEXIBLE GRINDING WHEEL SIZE:
| 4INCH | 4INCH | 4INCH |
| 100X2.5X16WA | 100X2.5X16C | 100X2.5X16AG |
FLAP DISC SIZE:
| 4INCH | 4.5INCH | 5INCH | 7INCH |
| 100X16(A) | 115X22(A) | 125X22(A) | 180X22(A) |
| 100X16(ZA) | 115X22(ZA) | 125X22(ZA) | 180X22(ZA) |

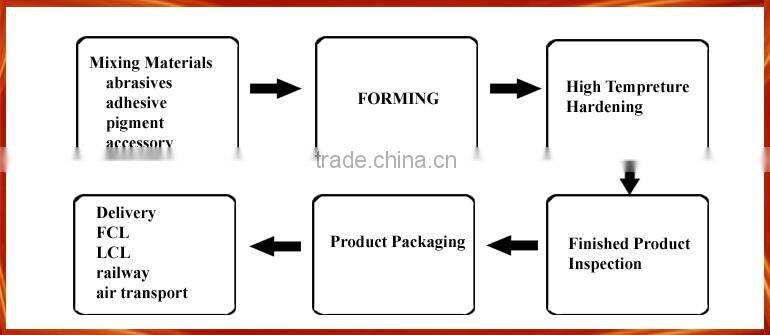

PRODUCTION PRECESS
During the production of china cutting disc, there are two important elements, tempreture and humidity. As DOME located in Changzhou City, the local weather conditions are not good for abrasives production, in this case, DOME invested heavily in factory condition, built a constant tempreture and constant humidity workshop. Therefore, DOME can control the products quality very well and keep a stability always. Our 4 inch cutting disc are always provided in a stable quality situation.

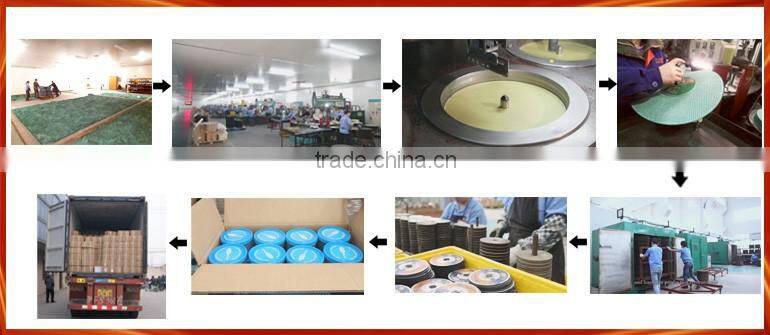

WORKSHOP
DOME offers premium-quality grinding and china cutting disc. Years of practical experience contribute to the development of new innovative products.
China Cutting Disc, for manual applications
China Cutting Disc for hand-held cut-off machines with petrol or electric motors dia. 300 - 400mm
For detailed information and ordering data for stationary steel cutting disc, please email us for more information.
- Angle grinders
- Hand-held cut-off machines with a petrol motor for china cutting disc dia. 300-400mm
- Hand-held cut-off machines with an electric motor for china cutting disc dia. 300-400mm
DOME QUALITY
CNDOME grinding and cut-off wheels are developed, manufactured and tested to the highest quality standards. The standard-compliant dimensional stability indicates the comprehensive CNDOME quality.
In addition to the high quality standards, health and safety as well as ergonomics play a prominent role.
CNDOME quality management is certified according to ISO9001
DOME SUPPORT AND TRAINING
DOME offers you individual tarrgeted support to solve your application problems. DOME's experienced sales representatives and technical advisors will be pleased to assist you. Please contact us.
Here, we provide highly specialized and practical knowledge from the world of grinding and cutting. Through the successively built-up blocks of seminars, you will become a DOME tool specialist.
PRODUCTS MADE TO ORDER
If you cannot find the solution for your particular application in our product range, we can produce grinding and china cutting disc in premium DOME quality on request, tailor-made to meet the requirements of your job.
Taking into account the material to be worked and the given application, we offer individual and effective advice with the aim of finding the best and most economical solution for you.
DOME TOOL-CENTER
On the DOME TOOL-CENTER of your local retailer, you will find all the important information required for selecting the most appropriate tool. The DOME information and symbol cards provide important tips about tools and applications.
If you have any questions, your local retailer or DOME sales representative will be happy to help you.
DOME grinding and cut-off wheels help reduce hazardous vibration and noise of the working process. The requirements of ISO6103 are met.

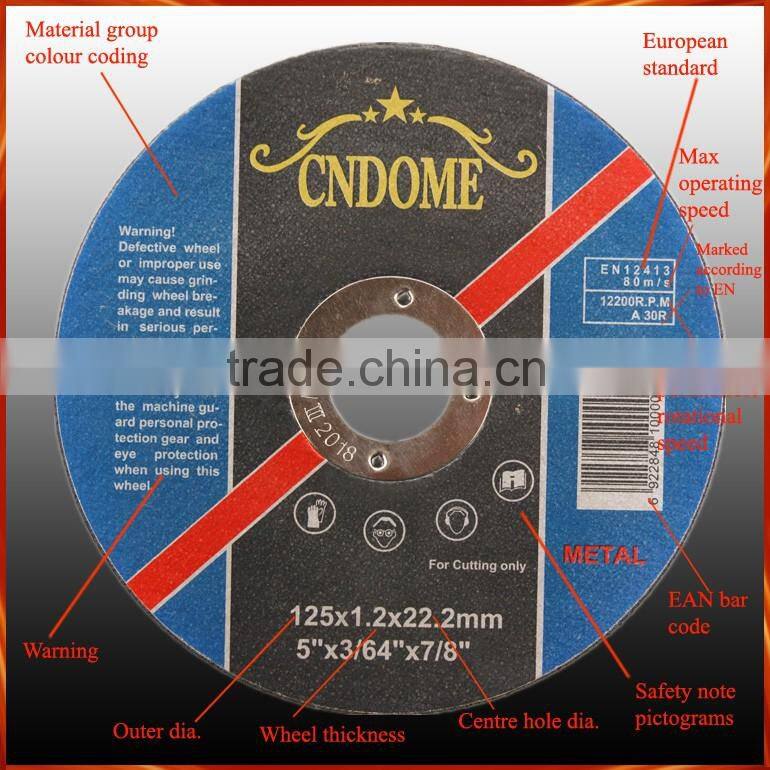

PRODUCT AND SAFETY
Abrasive
A = Aluminium oxide
AC = Aluminium oxide/silicon carbide
C = Silicon carbide
CO = Ceramic oxide grain
ZA = Zirconia alumina/aluminium oxide
Grit size according to ISO8464
Hardness grade(wheel properties)
very soft----steel
soft -----steel/stainless steel(INOX)
soft -----stainless steel(INOX)
medium-hard ---- steel/cast iron
hard -----steel
very hard -----casting scale/cast iron
Advantages:
- Meets hightest quality and safety standards throught robust, dimensionally and laterally stable disc designs
- Reduced labour costs throught savings in set-up times(fewer disc changes)
- High performance through aggressive abrasives and high quality abrasive grit bonds
- Complies with the requirements of EN12413
Thin cut-off wheels
in all our china cutting disc product lines, DOME has produced a noticeable performance increase for the use:
- Thinner, faster cutting with little burr formation
- Highest possible economic value
- comfortable and safe
DOME China Cutting Disc is Characterized by Their Special Bond Formulation.
Intensive research, development and targeted implementation in state-of-the-art production facilities guarantee our high quality and safety standards.
In addition to the high quality standards, health and safety as well as ergonomics play a promient role at DOME
DOME recommends steel cutting disc to sustainably reduce vibration, noise and dust levels during use and to improve working comfort.
The range of extremely thin cut-off wheels(less than 2mm) made by DOME will help to improve the working conditions of the user significantly. The tools are characterized by reduced noise values, reduced vibrations and less dust. Working with the exceptionally aggressive and fast DOME China cutting disc allows cool cutting with little burr formation and unsurpassed comfort.
China Cutting Disc for Cordlesss Angle Grinders
Thin 4 inch cutting disc of width 0.8mm and 1.0mm are ideally suitable for modern cordless angle grinders due to their narrow width, their superior cutting characteristics and optimum guidability. They guarantee more cuts per battery charge, which is why they are very economical.

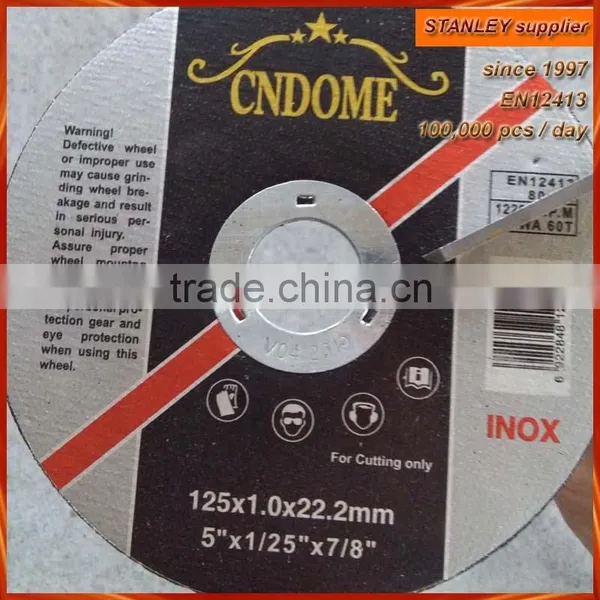

Cut-off wheels for work on stainless steel(INOX)
The importance of stainless steel (INOX) materials is continually growing due to their special material properties.
When cutting sheet metal and profiles, excessive thermal loads must be avoided to prevent thermal distortion and subsequent corrosion.
DOME China cutting disc for work on stainless steel (INOX) are characterized by optimum guidability. The continuous free-cutting action significantly reduces friction in the cut.
Advantages
- The faster, thinnest as well as cool cuts with little burr formation
- Longest tool life and typical DOME safety for the lowest costs per cut
- Manufactured without addition of ferrous, chlorinated or sulphurous fillers

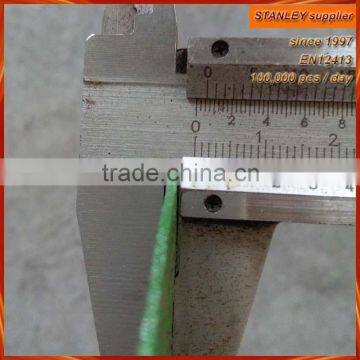

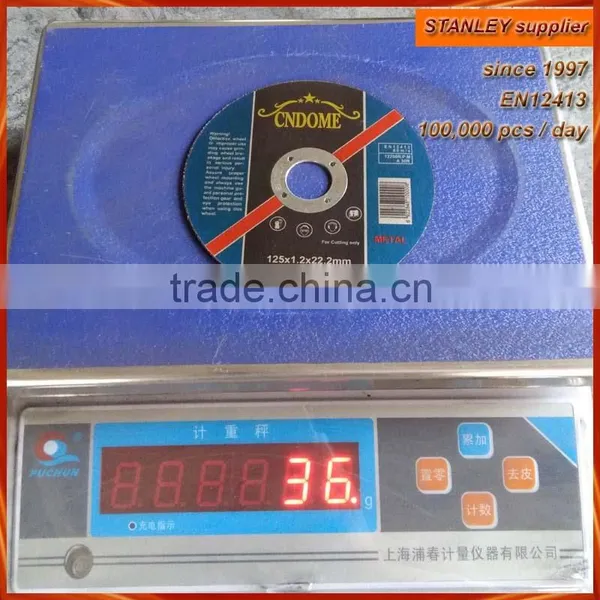

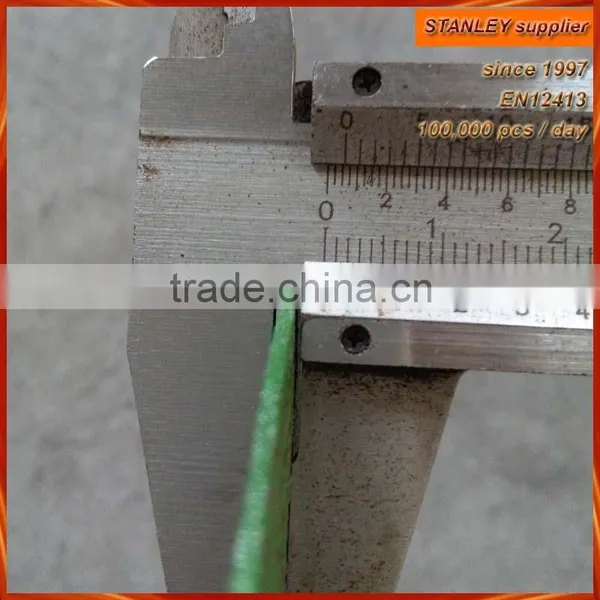

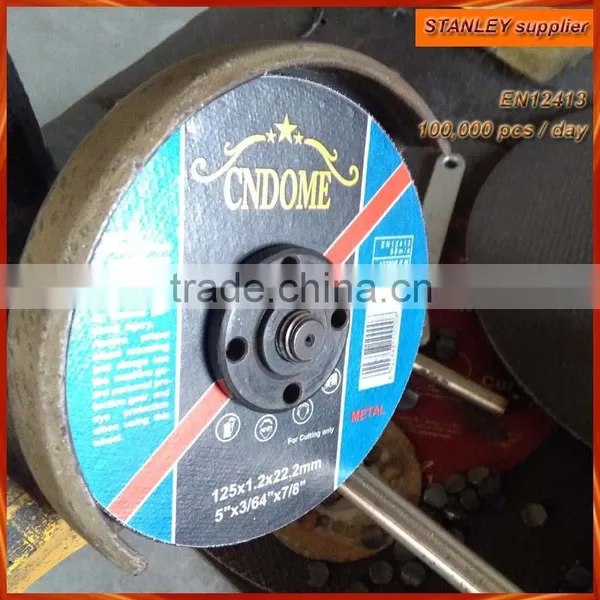

TESTING
China Cutting Disc for Use in Foundries
Cast iron, cast iron with flake graphite, cast iron with nodular graphite/nodular cast iron and similar materials are predominantly used in foundries. The removal of risers and sprues places the most stringent requirements on cut-off wheels.
In addition to high cutting characteristics and long tool life, maximum breakage resistanc is a primary requirement.
DOME china cutting disc for doundry use meet the high requirements of speed-stable compressed-air or high-frequency angle grinders in tough grinding applications

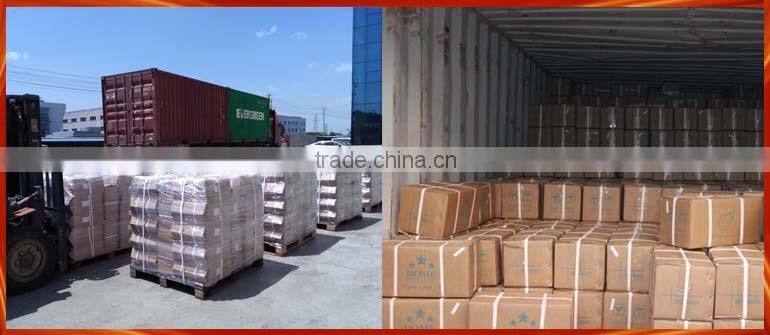

PACKAGING DIMENSION
INCH |
SIZE: mm | TYPE | CARTON DIMENSION: cm | QTY:pcs | G.W.:kg | CBM |
| 4 | 100X1X16 | 41 | 32X24X24 | 800 | 21.80 | 0.0184 |
| 100X1.5X16 | 41 | 50X26X19 | 800 | 21 | 0.025 | |
| 100X1.6X16 | 41 | 36X23.5X23.5 | 800 | 22.80 | 0.0198 | |
| 100X3X16 | 41 | 36X23.5X23.5 | 400 | 21.80 | 0.0198 | |
| 4.5 | 115X1(1.2)X22 | 41 | 26X19X26 | 400 | 13 | 0.0128 |
| 115X1.6X22 | 41 | 26X23X26 | 400 | 17.8 | 0.0155 | |
| 115X2X22 | 41 | 26X25X26 | 400 | 19.4 | 0.0169 | |
| 115X3X22 | 41 | 32.5X26X26 | 400 | 27 | 0.0219 | |
| 5 | 125X1(1.2)X22 | 41 | 28X19X28 | 400 | 14.2 | 0.0154 |
| 125X1.6X22 | 41 | 28X23X28 | 400 | 19.4 | 0.018 | |
| 125X2.0X22 | 41 | 28X25X28 | 400 | 23 | 0.0196 | |
| 125X2.5X22 | 41 | 32.5X28X28 | 400 | 27 | 0.0254 | |
| 125X3X22 | 41 | 32.5X28X28 | 400 | 32.6 | 0.0254 | |
| 6 | 150X1.6X22 | 41 | 32.5X25X32.5 | 400 | 25 | 0.0264 |
| 150X2X22 | 41 | 32.5X25X32.5 | 400 | 31.4 | 0.0264 | |
| 150X3X22 | 41 | 33X33X19 | 200 | 23.4 | 0.021 | |
| 7 | 180X1.6X22 | 41 | 39X20X26 | 200 | 19.6 | 0.02 |
| 180X2X22 | 41 | 39X20X26 | 200 | 23 | 0.02 | |
| 9 | 230X2X22 | 41 | 30.5X25X25 | 100 | 18.8 | 0.0165 |
| 12 | 300X3X25.4 | 41 | 32X9X32 | 25 | 12.25 | 0.0092 |
| 14 | 355X2.5X25.4 | 41 | 37X8X37 | 25 | 15.25 | 0.011 |
| 355X3X25.4 | 41 | 37X9X37 | 25 | 17.25 | 0.123 | |
| 4 | 100X3X16 | 42 | 36X23.5X23.5 | 400 | 21.8 | 0.0198 |
| 100X6X16 | 27 | 36X23.5X23.5 | 200 | 22 | 0.0198 | |
| 4.5 | 115X3X22 | 42 | 26X26X19 | 200 | 14 | 0.0128 |
| 115X6X22 | 27 | 26X26X19 | 100 | 14.8 | 0.0128 | |
| 5 | 125X3X22 | 42 | 28X28X19 | 200 | 16.8 | 0.0148 |
| 125X6X22 | 27 | 28X28X19 | 100 | 17.5 | 0.0148 | |
| 6 | 150X3X22 | 42 | 33X33X19 | 200 | 23.4 | 0.021 |
| 150X6X22 | 27 | 33X33X19 | 100 | 24 | 0.021 | |
| 7 | 180X3X22 | 42 | 39X20X19 | 100 | 17 | 0.0133 |
| 180X6X22 | 27 | 39X20X19 | 50 | 18 | 0.0148 | |
| 9 | 230X3X22 | 42 | 49X25X19 | 100 | 27.5 | 0.023 |
| 230X6X22 | 27 | 49X25X19 | 50 | 27 | 0.023 |

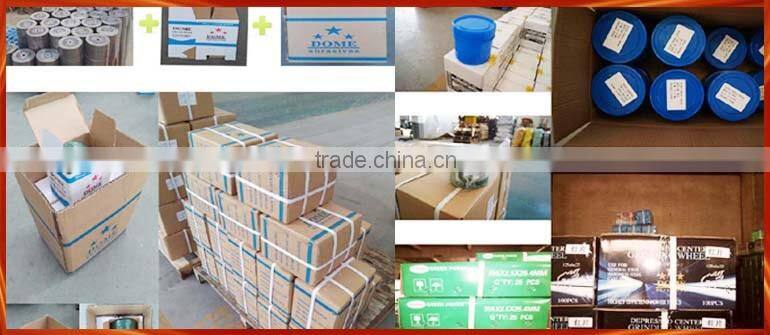

DOME PACKAGING
DOME supplies grinding and China cutting disc in sturdy industrial packaging that protects the tools from damage. For packaging units, please refer to the product tables. Important information, such as article number, description, code and technical information can be found on the packaging labels.
CUT-OFF PROCESSES
According to the material and the application, China cutting disc processes differ depending on the positioning and relative motion of the steel cutting disc and workpiece.
