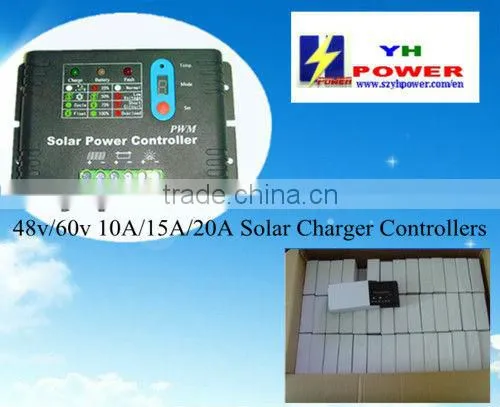

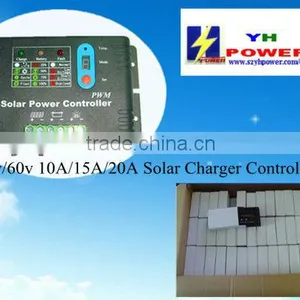

solar intelligent controller 60v from huaqiangbei
- 2000 Piece / Pieces per Month
- shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
- TENTEK EMS Controller 1.6kW with Smart Meter
- Factory High Efficiency 20A 30A 36V 48V 12V 24V Solar Power Station Charge Controller For Telecom Projects
- Ipandee Ce Fcc Rohs Certificate Pv Input Rs485 Solar Regulator Mppt 40A 12V 24V Mppt Charge Controller For Household
- Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
- Ipandee Off-Grid System Explorer-Ns Series Oled Display Suitable All Battery 30A 40A 50A 60A 12V 24V Solar Controller For Rv
- Ipandee Oem Solar System Parallel 1400W 50A 12V 24V Mppt Charge Controller With Wifi App Remote Monitoring
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YH-POWER | Model Number: | YH-SC6015 |
Application: | Solar System Controller | Rated Voltage: | Other, 60v | Maximum Current: | 15A |
Product Description
Specifications
lar intelligent controller 60v from huaqiangbei2.rating voltage:60v with LED display
3.packed by neutral white box
solar intelligent controller 60v from huaqiangbei
Mode introduction and setting form:
Controller has three modes and the setting form is just as follows:
LED dispaly | Mode | LED dispaly | Mode |
1 | One hour's light time | 0 | 10 hours' light time |
2 | 2 hours' light time | 1 | 11 hours' light time |
3 | 3 hours' light time | 2 | 12 hours' light time |
4 | 4 hours' light time | 3 | 13 hours' light time |
5 | 5 hours' light time | 4 | 14 hours' light time |
6 | 6 hours' light time | 5 | 15 hours' light time |
7 | 7 hours' light time | H | Houser system |
8 | 8 hours' light time | F | pure light control sytem |
9 | 9 hours' light time |
Technology qualification
System voltage | 60v |
System current | 15A |
No-load loss | Less than 10 mA |
Solar energy input voltage | Less than 110v |
Over voltage protection | 82.5v |
Over voltage recovery | 75v |
Balance charge voltage | 72v(25 °C) time maintenance 1H |
Increase charge voltage | 72v(25°C) time maintenance 1H |
Float charge voltage | 69v (25 °C) |
Charging return voltage | 66.5v (25 °C) |
Discharge protection voltage | 66.6v |
Discharge protection voltage | 64v |
Temperature compensation | -4.0mv/ °C/2V |
Daytime identifying voltage | 35v |
Night identifying voiltage | 15v |
Over-load,short circuit pretection | 1.5 times rating current 30S 1.5 times rating current 10S overload current protection ≥3 times rating current short circuit protection |
Work temperature | -25 °C to + 60 °C |
Protection degaree | IP 30 |
Outline size | 141.5mm*84mm*23.6mm |
weight | 0.35kg |
Function
1.60v rating voltage by system
2.LED digital display and one-key operation, easy to use.
3.The improved 3-section computing method can weekly give the battery a balanced charging. It can stop the battery the battery from being unbalancing and vulcanizing and let the battery been used for more time.
4.The controller is quipped with the serial PWM charging main circuit with additional 3% - 6% efficiency than the non-PWM circuit which can work more time and increase the suing period of the system.
5.Controller has three load work ways and can be easily used in the varies streetlights and monitors.
6.Visualized LED display which can let he users get to know the conditions of the solar power and storage battery.
7.Overcharge. Over discharge and overload protection. Reverse connect preventing protection.
8.Lightning prevention
