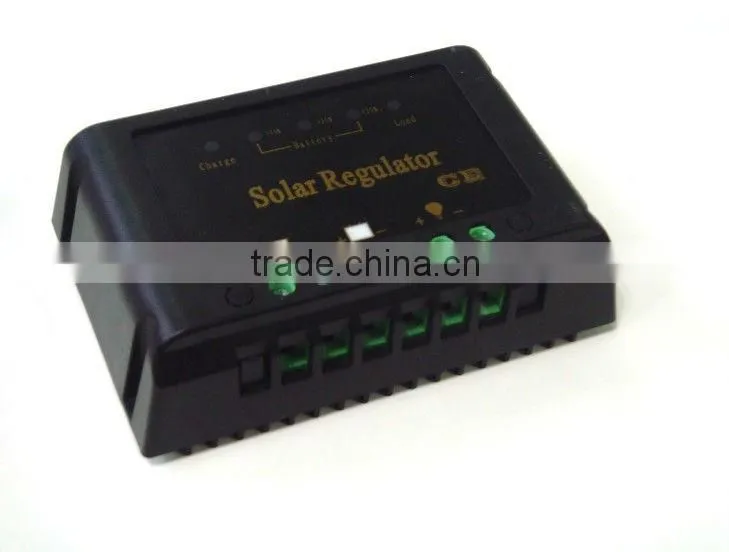

Automatical 12v/24v Solar Panel Voltage Regulator PWM 20A

Name: Automatical 12v/24v Solar Panel Voltage Regulator PWM 20A
Brand: YH POWER
SKU: 106542583
Availability: InStock

US$ 13.5 - 17 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YH POWER

Model Number:

YH-SC1220

Shenzhen YH Power Supply Pte. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YH POWER

Model Number YH-SC1220

Application Solar System Controller

Rated Voltage Other, 12V/24V

Maximum Current 360W MAX

Specifications

1.12v/24v solar panel voltage regulator
2.12v/24V identify automatically
3.PWM function supported
4.1 year warranty

Automatical 12v/24v solar panel voltage regulator PWM 20A

Products specification
1	Model	YH-SC1220
2	Name	Automatical 12v/24v solar panel voltage regulator PWM
3	Rated voltage	12V/24V automatic identification
4	Strong charging pressure	14.8V/29.6V
5	Balanced filling	14.5V/29V
6	Float chargering pressure	13.7V/27.4V(25°C)
7	Low pressure load off voltage	11v/22v±0.2
8	Load connect voltage	12.5V/25.5V
9	Temperature compensation system	-4mV/C/2V
10	Maximum charger current	20A
11	Maximum load current	20A
12	Maximum cable diameter	4mm²
13	Weight(gross)/set	300g
14	Working temperature	-40-60°C
15	Protection grade	IP56

Advantage
1	The department example product automatic identification system voltage 12V/24V
2	Battery protection, avoid solar battery overcharge
3	Adapter MCU contol, five charging and discharging LED indicator, capacity state
4	With strong charger, balanced filling and floating filling 3-sectional series PWM adjust charing ways
5	Automatic detection and tracking outside and battery temperature, built-in temperature compesation function
6	Overakk electronic protection function,include overcharge put, overload,short-circuit,answer the reverse,etc
7	Has the TVS lighting protection, no jump line design, can enhance the system relibiluty and durability
8	Parameter Setting with power lsot save function,all importand date are keep in the chip
9	Can work in cold ,high temperature,humid environment
