Specifications
1. 10A mini voltage regulator solar charger2.12v/24V identify automatically
3.PWM function supported
4.1 year warranty
10A PWM 12v/24v mini voltage regulator solar charger
12V/24V 10A solar charger regulator(PWM)/10A soalr charger controller/10A solar charger regulator/factory 10A solar controller price/manufacturer 10A solar regulator products
Products specification | ||
1 |
Model |
YH-SC1210 |
2 |
Name |
10A PWM 12v/24v mini voltage regulator solar charger |
3 |
Rated voltage |
12V/24V automatic identification |
4 |
Strong charging pressure |
14.8V/29.6V |
5 |
Balanced filling |
14.5V/29V |
6 |
Float chargering pressure |
13.7V/27.4V(25°C) |
7 |
Low pressure load off voltage |
11v/22v±0.2 |
8 |
Load connect voltage |
12.5V/25.5V |
9 |
Temperature compensation system |
-4mV/C/2V |
10 |
Maximum charger current |
10A |
11 |
Maximum load current |
10A |
12 |
Maximum cable diameter |
4mm² |
13 |
Weight(gross)/set |
200g |
14 |
Working temperature |
-40-60°C |
15 |
Protection grade |
IP56 |
Pictures:

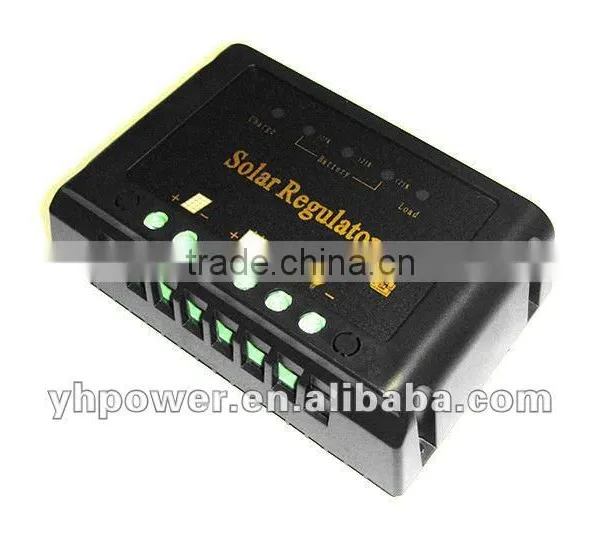

YH-SC1210 - 10A PWM 12v/24v mini voltage regulator solar charger -1

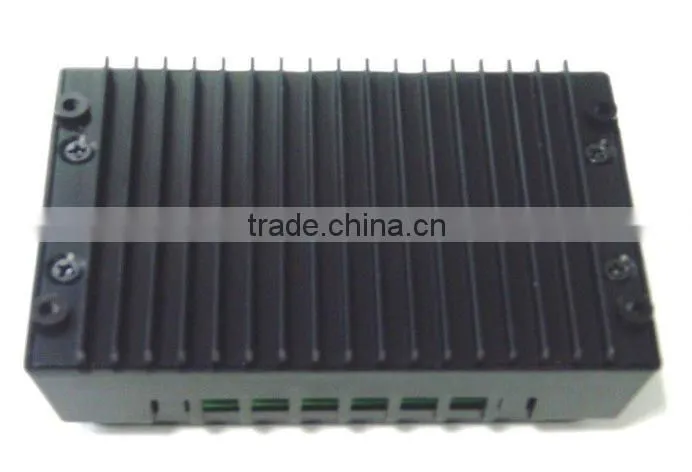

YH-SC1210 - 10A PWM 12v/24v mini voltage regulator solar charger -2

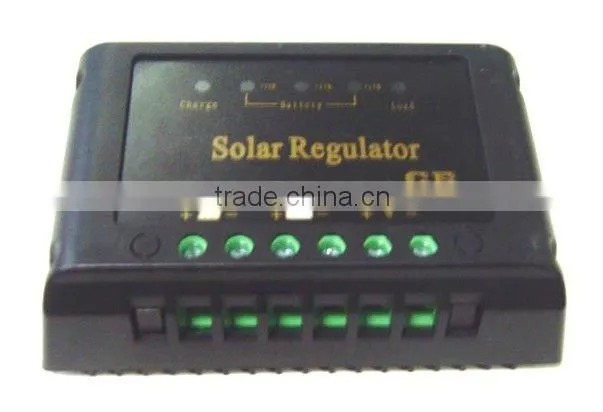

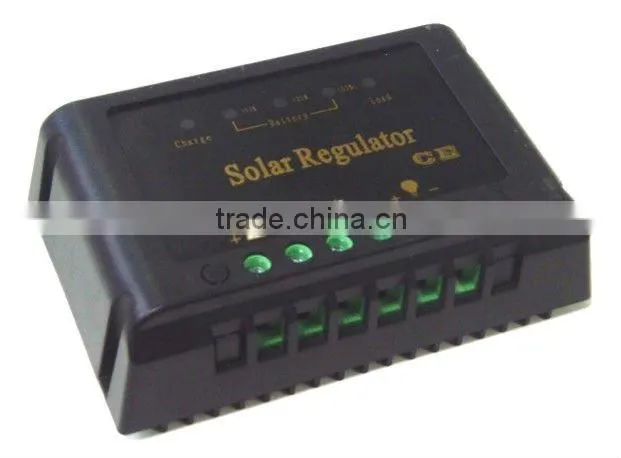

YH-SC1210 -10A PWM 12v/24v mini voltage regulator solar charger -3
