Factory Price Metal Panel Material, EPS Sandwich Panel Turkey

We can design, manufacture and install all kinds of Colorbond steel sandwich panel for the need of client, and specialize in making Polyurethane, Rockwool, Polystyrene material for interlayer material for Insulating Colorbond sandwich panel was speak highly of Client, It is generally used to large span warehouse, purifying workshops, prefabricated housing, roofing, temporary build engineering,road fence, sound insulation project and industrial refrigerators house etc.

For this item  Polystyrene (EPS) sandwich panel product, the detailed information as below:

1. Feature

(1). Lightweight---Because its density is smaller than other building materials.

(2). Easy installation---Ordinary people can be easily assembled under the installation specification.

(3).Short Construction Period---Two workers can be installed 300 square meters per day.

(4). Heat Insulation---Under certain conditions, the temperature difference between indoor and outdoor.

(5).Sound Insulation---Under certain conditions, people can hardly hear outside noises in the room.

(6).Materials can be recycled---After disassembly of the material can be recycled, saving construction costs.

(7). Attractive---Painted panel colorful, eye-catching, wide range of options, very beautiful.

(8). Durable--- It will have more than 20 years of lifetime if you can simple maintenance it, more durable.

2. Structure:

This product is composed of four materials and seven layers of fabrication procedure.

(1).The first layer material---Transparent PVC Protective film

(2).The second layer material---PIGG Metal sheet

(3).The third layer material---Industry environmental protection glue

(4).The fourth layer material--- Polystyrene (EPS) foam

(5).The fifth layer material---Industry environmental protection glue

(6).The sixth layer material--- PIGG Metal sheet

(7).The seventh layer material--- Transparent PVC Protective film

3. Parameter

(1). Polystyrene (EPS) foam’s Thickness:  50mm, 75mm, 100mm, 150mm and, 200mm

(2). Thickness of PIGG metal sheet: 0.3mm-0.8mm

(3). Length: must be less than 12 meters

(4). Polystyrene (EPS) density: 8-20 kg/m3

(5). Width of sandwich panel: 1040mm

(6). Heat Resisting Coefficient: λ=0.0175kcal/m.h.°C.

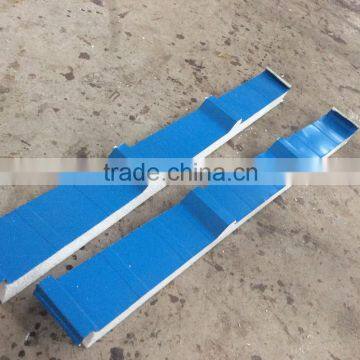

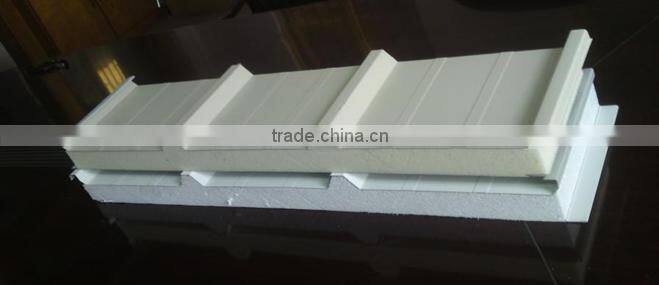

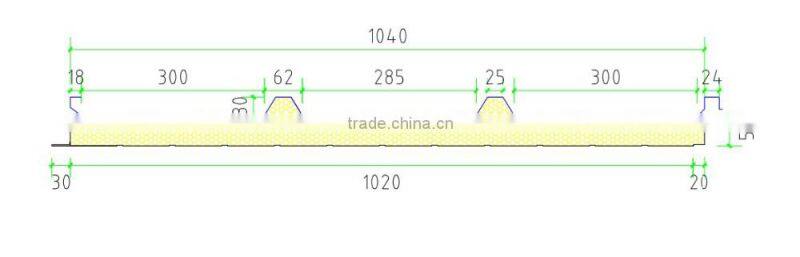

4. Sectional view

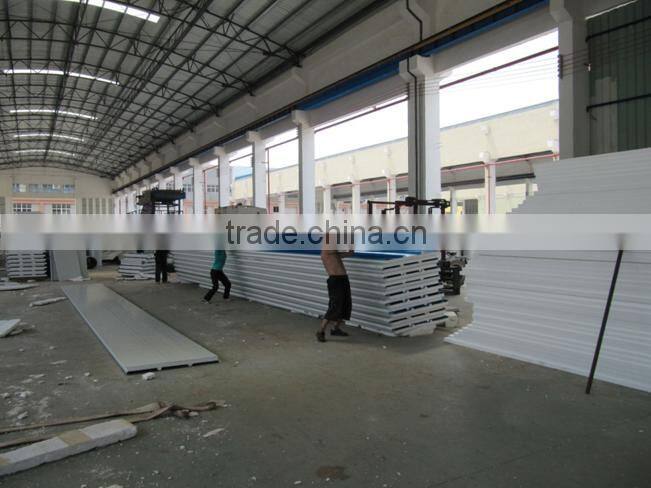

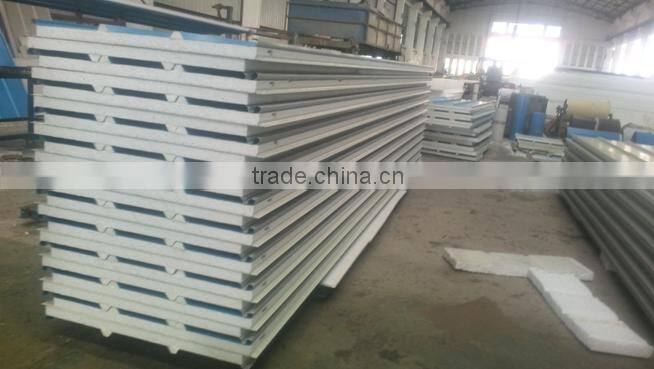

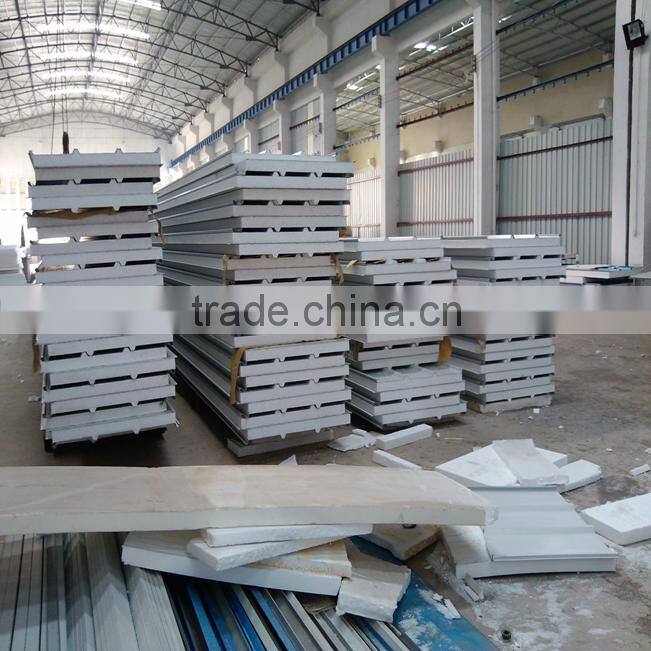

5. Workshop

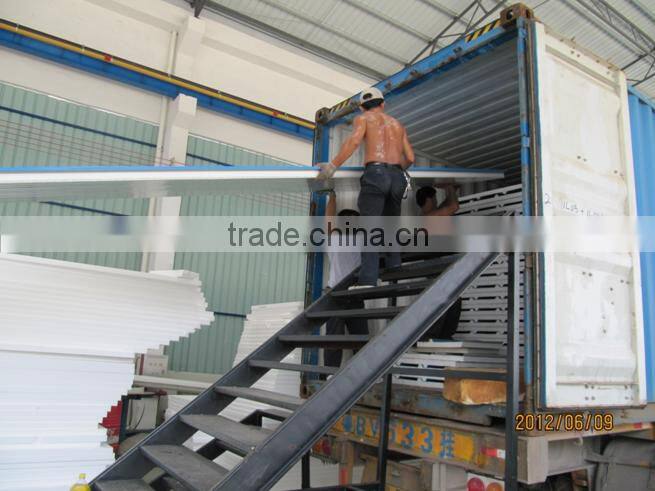

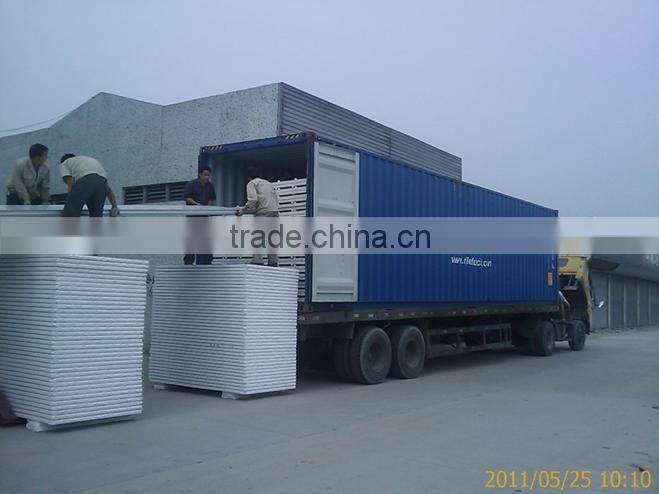

6. Loading Container

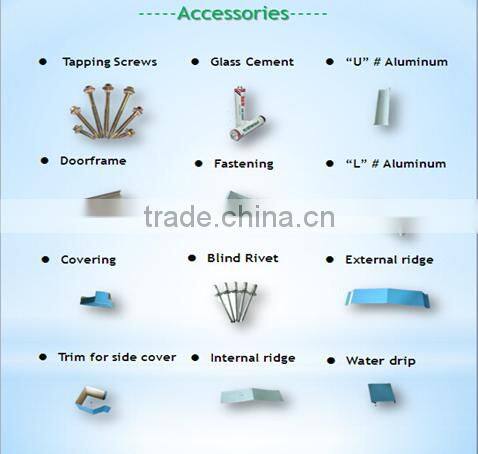

7. Accessories

8. Contact Us:

      Any comments by return will be appreciated. it will be big pleasure if we have opportunities to  be on service you in near future.
