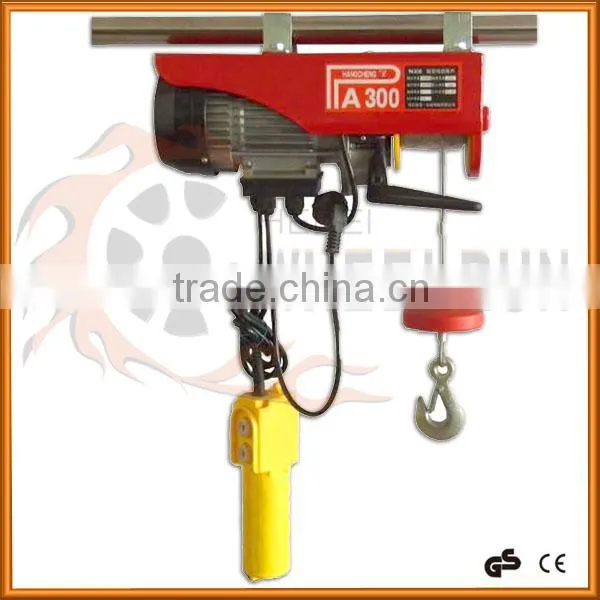

construction lifting equipment 1 phase electric mini block PA electric hoist

construction lifting equipment 1 phase electric mini  block PA electric hoist

Introduction:

PA electric hoist  has emergency stop switch and forced open limit switch. The protection class is IP54, and has thermal protection device.

• The emergency stop switch

• Upper limit function

• Thermal protection terminal

• Protection class IP54

• Insulation class B

• Group of mechanisms M1

• Work Duty: S3-25%-10min

• Rated Volt: 220/230V ~ 50Hz

• Rated Current: 2.0A

• Input Power: 550W

• Lifting Weight: 100kg (Single-line), 200kg (Double-line)

• Lifting Height: 12m (Single-line), 6m (Double-line)

• Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)

• Diameter of wire rope: 3.0mm

• Tensile strength of wire rope ≥ 1870N/mm2

 PA electric hoist

1.Widelyin factories, workshops,family, warehouses, hotels, shopping malls, decorate and handling, etc

 2. The capacity :100kg-1000kg

 3.Model: PA200 PA300  PA400  PA500 PA600 PA800 PA1000 PA1200

 4.The standard lifting height: 12m (Also could add as per customer's request to 40m)

 5.The shell is aluminium Alloy

 6.With emergency stop switch and forcibly disconnected limit switch

 7.Most tensile safety hooks without break

 8.Compact and high efficient motor with thermal protection device

 9.Use Copper motor,big power and different voltage are available

 10. Choose presice process of high tensile helix gear working system to keep lower noise

Main Performances and Technical Specifications
