Lifting equipment PA200-PA1000 mini wire rope hoist 220V electric hoist
220V electric hoist
1)PA wire rope hoist
2)Electric wire rope hoist
3)Capacity: 100-1000kg
4)Lifting height: 6M-12M
5) Elecrric trolley, Wireless remote control
Introduction:
220V electric hoist has emergency stop switch and forced open limit switch. The protection class is IP54, and has thermal protection device.
• The emergency stop switch
• Upper limit function
• Thermal protection terminal
• Protection class IP54
• Insulation class B
• Group of mechanisms M1
• Work Duty: S3-25%-10min
• Rated Volt: 220/230V ~ 50Hz
• Rated Current: 2.0A
• Input Power: 550W
• Lifting Weight: 100kg (Single-line), 200kg (Double-line)
• Lifting Height: 12m (Single-line), 6m (Double-line)
• Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)
• Diameter of wire rope: 3.0mm
• Tensile strength of wire rope ≥ 1870N/mm2
mini wire rope hoist
1.Widelyin factories, workshops,family, warehouses, hotels, shopping malls, decorate and handling, etc
2. The capacity :100kg-1000kg
3.Model: PA200 PA300 PA400 PA500 PA600 PA800 PA1000 PA1200
4.The standard lifting height: 12m (Also could add as per customer's request to 40m)
5.The shell is aluminium Alloy
6.With emergency stop switch and forcibly disconnected limit switch
7.Most tensile safety hooks without break
8.Compact and high efficient motor with thermal protection device
9.Use Copper motor,big power and different voltage are available
10. Choose presice process of high tensile helix gear working system to keep lower noise
Main Performances and Technical Specifications
Model |
Hook Type |
Voltage(V) |
Power(W) |
Capacity(kg) |
Lifting Speed(m/min.) |
Lifting Height(m) |
Qty/CTN |
Packing Size(cm) |
N.W./G.W (kG) |
PA200 |
Single hook |
AC220V/230V
50Hz/60Hz |
510 |
100 |
10 |
12 |
2 |
39*31*25 |
21/22 |
|
Double hook |
200 |
5 |
6 |
||||||
PA300 |
Single hook |
600 |
150 |
10 |
12 |
39*31*25 |
22 |
||
|
Double hook |
300 |
5 |
6 |
23 |
|||||
PA400 |
Single hook |
980 |
200 |
10 |
12 |
45*34*27.5 |
30.5 |
||
|
Double hook |
400 |
5 |
6 |
32.5 |
|||||
PA500 |
Single hook |
1000 |
250 |
10 |
12 |
45*34*27.5 |
31 |
||
|
Double hook |
500 |
5 |
6 |
33 |
|||||
PA600 |
Single hook |
1200 |
300 |
10 |
12 |
45*34*27.5 |
32.6 |
||
|
Double hook |
600 |
5 |
6 |
35 |
|||||
PA800 |
Single hook |
1300 |
400 |
10 |
12 |
45*34*27.5 |
35 |
||
|
Double hook |
800 |
5 |
6 |
37.5 |
|||||
PA1000 |
Single hook |
1600 |
500 |
10 |
12 |
1 |
57*26*32 |
30 |
|
|
Double hook |
1000 |
5 |
6 |
31 |

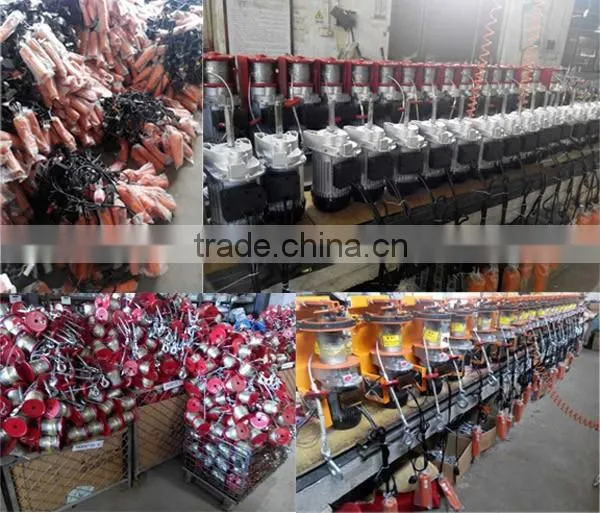

Photos for 220V electric hoist
Cetrificate
We are Wheelrun Group, Integrates development and manufacturing in-house. Speciliazied in Auto Parts Tractor Parts and Hoisting Machinery for years. Wheelrun Gruop Promises: Reasonable price, short productsion time and satisfactory after-sales serives.
We sincerely hope to cooperation with you.
More Products information pls click our webite on alibaba
https://img13.fr-trading.com/
After-sales Service for 220V electric hoist:
A. One year warranty for whole machines
B. Providing free quick-wear part
C. Low charge for continue maintenance when warranty is expired
D. Exclusive engineer support at any time
E. We can provide free training to end-users
Why choose us?
A.Prompt reply for inquiry within 12 hours .
B. One on one service guarantees you the best purchasing experience.
C. Strong production capacity and professional workmen guarantees you the short delivery.
D. Strict delivery inspection guarantees you the high quality products.
If you need anything about Auto/Tractor Parts and Hoisting Machinery, pls feel free to contact with us. We promise will reply you within 24 Hours. Waiting for yours inquiries and orders.
