drainage protection kintted polyester geogrid
Introduction

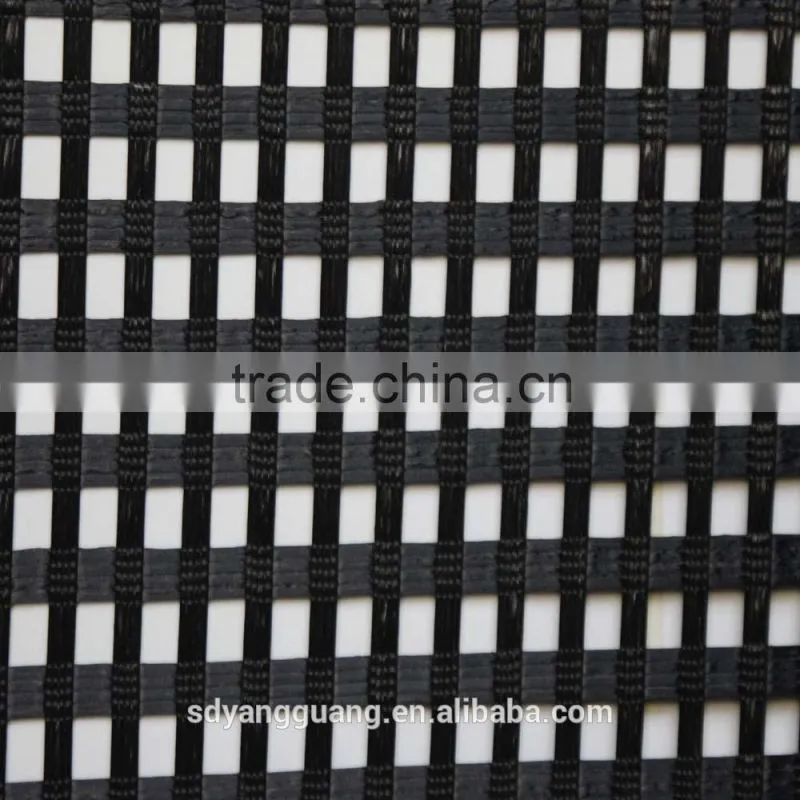

Water-soluble uniaxial warp-knitting polyester geogrid adopts high strength, high modulus, and low shrinkage twisting industrial polyester fiber as raw material. It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Its crossing points are bundled and bended together by high strength long polyester fiber forming tough conjunction. Then it forms into mesh size product after coated with high quality water-soluble PVC which improves its strength, shearing force, various technical standards and gives full paly of its mechanical property.
Product Features
A. Enhance the bearing capacity of road foundation and extend the duration of roads.
B. Prevent road surface from collapse, crack and being dirty.
C. Be convenient for construction, timesaving and cut down the cost of maintenance.
D. Prevent tunnel from crack occurring.
E. Further solidity slopes to proof water and soil from losses.
F. Reduce the surface thickness of the ground.
G. Consolidate the net for growing grass on the slopes so as to stabilization surrounding virescence.
Application
1. Using in landslides, retaining wall, water conservancy and other projects.
2. Strengthening river bank, dam and side slope.
3. Strengthening unidirectional force foundation.
Our main products
Our main products as follows:
1.Fiberglass geogrid: tensile strength from 30kn/m to 400kn/m, elongation less than 3%, mesh size 12.7mm or 25.4mm or 50mm, coated by asphalt (bitumen), max roll width 6m, roll length 50m or 100m, packed by black PE membrane + plastic pipe. With CE certificate.
2.Polyester geogrid: tensile strength from 20kn/m to 1000kn/m, elongation less than 13%, mesh size 12.7mm or 25.4 mm or 50mm, coated by PVC (water soluble PVC or oil PVC max roll width 6m, roll length 50m or 100m, packed by black PE membrane + plastic pipe. With CE certificate.
3.Geocomposites: fiberglass geogrid ---tensile strength from 30kn/m to 200kn/m, elongation less than 3%,mesh size 12.7mm or 25.4 mm or 50mm, coated by asphalt (bitumen), max roll width 6m, roll length 50m or 100m, packed by black PE membrane + plastic pipe. polyester non-woven geotextile-------white color, unit weight often 150g/sqm. Composited by adhesive glue or by sewing. With CE certificate.
4.Mine Grid: tensile strength from 40kn/m to 800kn/m, used under mine for support and protecting, white or yellow color.
With China patent and MA certificate.
At the same time, we also export PP biaxial geogrid, HDPE uniaxial geogrid, HDPE geocell, Non- woven geotextile, Geonet, Geomat, GCL.
FAQ:
1. How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 3 weeks.
2. What kind of payments does jenor support?
T/T, L/C, Cash are accepted.
3. What's are the MOQ?
We can according to your condition to set the MOQ.
And we can provide you samples for quality inspection.
4. Do you charge for the samples?
Accordeing to our company policy, the samples are free, we only charge the freight fee. And we will return the freight fee If you set the order .
5.Can you produce the product according to customers'requirements ?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
