compound earthwork drainage nets (BV cerificate)

Specifications

It is widly used on the rubbish-landfills,high way subfrade and pavement,railwy,tunnel,gardon,playfrounds and other underground

3D drainage net







Specifications:







 1.a new drainage geosynthetics
  thickness
3.high tensile strength











 Product Description:

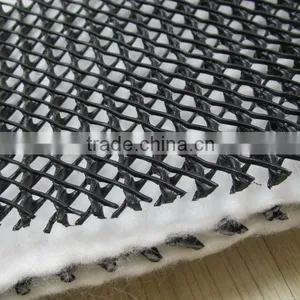

 It is a new drainage geosynthetics which consists of a three-dimensional viscous core geonet and a kind of non-woven geotextile which both sides have a needle prercing.







 And it has a porous self-maintenance system that can block the capillary under high load of water.At the same time,it can also play the role of isolation and foundation strengthening.







 Function:







 It is widly used on the rubbish-landfills,high way subfrade and pavement,railwy,tunnel,gardon,playfrounds and other underground structures.



  Compound earthwork drainage nets technical parameters and product specifications:



No.	Project	Units	Standard value
			1200g	1400g	1600g	1800g	2000g
1	Complex mass per unit area	g/m2	≥1200	≥1400	≥1600	≥1800	≥2000
2	Media thickness	mm	≥6.0	≥7.0	≥8.0	≥9.0	≥10.0
3	Composite longitudinal tensile strength	KN/m	≥16.0	≥16.0	≥16.0	≥16.0	≥16.0
4	Complex hydraulic conductivity	m2/s	≥1.2×10-4	≥1.2×10-4	≥1.2×10-4	≥1.2×10-4	≥1.2×10-4
5	Network core and non-woven peel strength	KN/m	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3
6	Net core thickness	mm	≥5.0	≥5.0	≥6.0	≥7.0	≥8.0
7	The tensile strength of the core network	KN/m	≥13.0	≥15.0	≥15.0	≥15.0	≥15.0
8	Non-woven mass per unit area	g/m2	≥200	≥200	≥200	≥200	≥200
9	Non-woven normal permeability	cm/s	≥0.3	≥0.3	≥0.3	≥0.3	≥0.3
10	Width	m	2.1	2.1	2.1	2.1	2.1
11	Roll length	m	30	30	30	30	30
