Specifications
It is widly used on the rubbish-landfills,high way subfrade and pavement,railwy,tunnel,gardon,playfrounds and other underground3D drainage net
Specifications:
1.a new drainage geosynthetics
thickness
3.high tensile strength
Product Description:

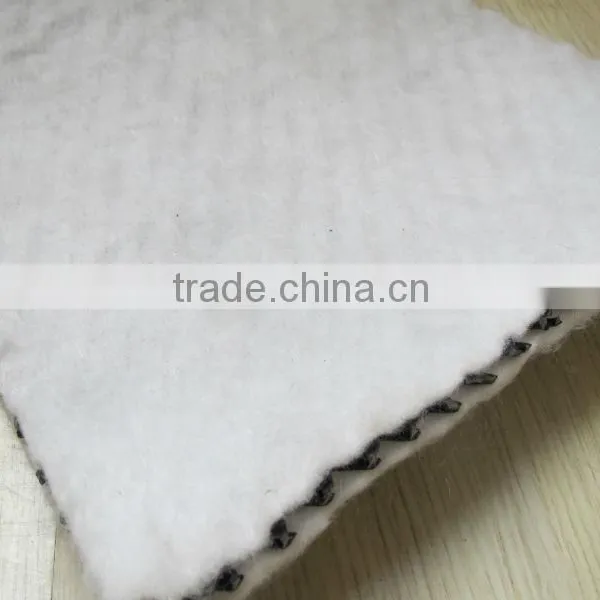

It is a new drainage geosynthetics which consists of a three-dimensional viscous core geonet and a kind of non-woven geotextile which both sides have a needle prercing.
And it has a porous self-maintenance system that can block the capillary under high load of water.At the same time,it can also play the role of isolation and foundation strengthening.
Function:
It is widly used on the rubbish-landfills,high way subfrade and pavement,railwy,tunnel,gardon,playfrounds and other underground structures.
Compound earthwork drainage nets technical parameters and product specifications:
No. |
Project |
Units |
Standard value |
||||
1200g |
1400g |
1600g |
1800g |
2000g |
|||
1 |
Complex mass per unit area |
g/m2 |
≥1200 |
≥1400 |
≥1600 |
≥1800 |
≥2000 |
2 |
Media thickness |
mm |
≥6.0 |
≥7.0 |
≥8.0 |
≥9.0 |
≥10.0 |
3 |
Composite longitudinal tensile strength |
KN/m |
≥16.0 |
≥16.0 |
≥16.0 |
≥16.0 |
≥16.0 |
4 |
Complex hydraulic conductivity |
m2/s |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
5 |
Network core and non-woven peel strength |
KN/m |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
6 |
Net core thickness |
mm |
≥5.0 |
≥5.0 |
≥6.0 |
≥7.0 |
≥8.0 |
7 |
The tensile strength of the core network |
KN/m |
≥13.0 |
≥15.0 |
≥15.0 |
≥15.0 |
≥15.0 |
8 |
Non-woven mass per unit area |
g/m2 |
≥200 |
≥200 |
≥200 |
≥200 |
≥200 |
9 |
Non-woven normal permeability |
cm/s |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
10 |
Width |
m |
2.1 |
2.1 |
2.1 |
2.1 |
2.1 |
11 |
Roll length |
m |
30 |
30 |
30 |
30 |
30 |
