Home > Products > Welded Pipe production line > Welding Pipe Roller
Welding Pipe Roller
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Pipe Production Line | |
| Pipe Material | Carbon Steel | Application | Energy Supply Pipe | |
| Production Capacity | 0-90m/min | Place of Origin | China | |
| Brand Name | ZHONGTUO | Model Number | HG32/HG50/HG76/HG127 | |
| Voltage | 380V/220V,50HZ | Power(W) | 101kw,customized | |
| Dimension(L*W*H) | About 7m*1.4m*1.5m (Up to final design) | Weight | About 5T/10 tons (Up to final design) | |
| Certification | CE, ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
welding pipe roller
Machine Description | Quantity | Delivery time | Container Type | Price USD FOB TIANJIN |
welding pipe roller | 1 SET | 45 working days after receiving deposit | One 40 FT Up to final design | USD79000---149000 |

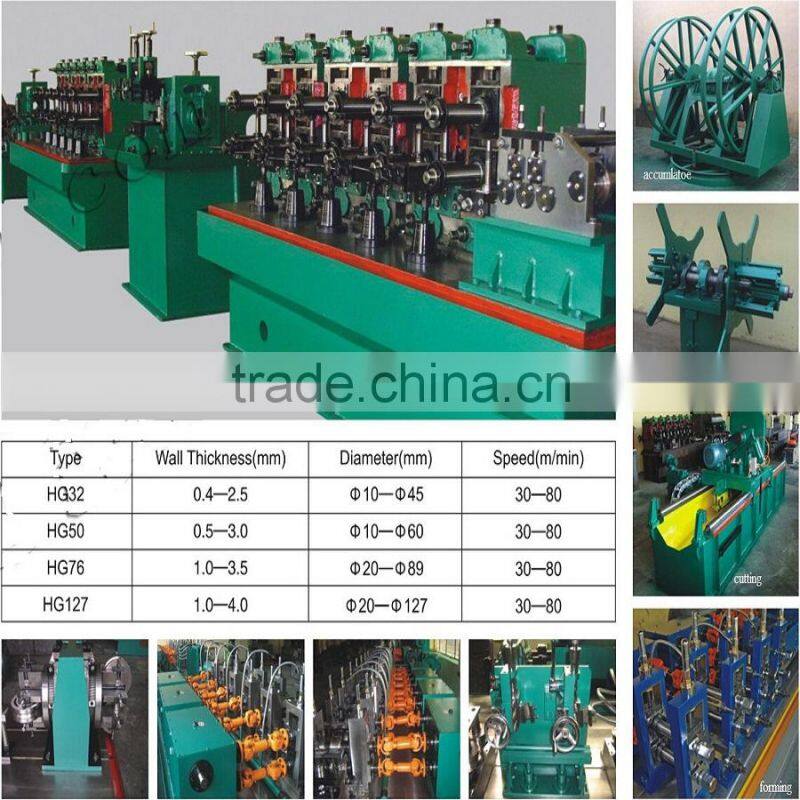

The following types welding pipe roller for your reference:
About the machine:
The cost of metal pipe machine will more expensive,so we distinguish them to four tyes,they can do different size and thickness,here we introduce them for you,you can arrording to this and see which type you can choose.
About the mould:
For the pipe machine,one size and thickness need one mould, nonadjustable
such as round pipe:
1.thickness is 1.0mm,diameter is 40mm, it needs a mould.
2.thickness is 1.1mm,diameter is 40mm, it needs another mould.
3.thickness is 1.0mm,diameter is 45mm, it needs other mould.
So if you want to know the price of pipe machine, tell me the detailed size,
the right expression:
I need round pipe machine, diameter is 25mm thickness is 0.8mm and 1.0mm, diameter is30,thickness is 0.8mm and 1.0mm.
the wrong expression :
I need roud pipe machine, the diameter is 25-30mm,thickness is 0.8-1.0mm

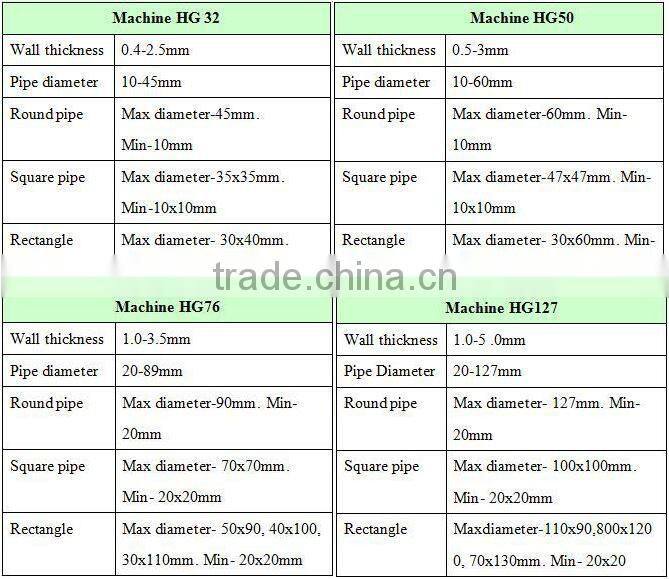

Here is a size reference for different type of machine:

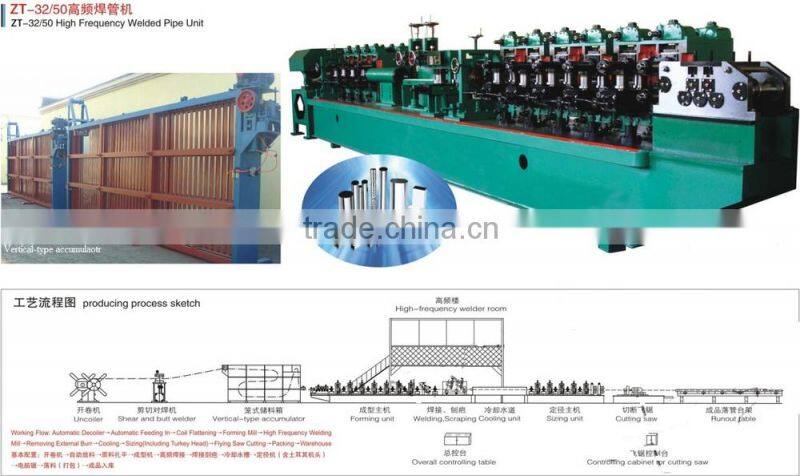

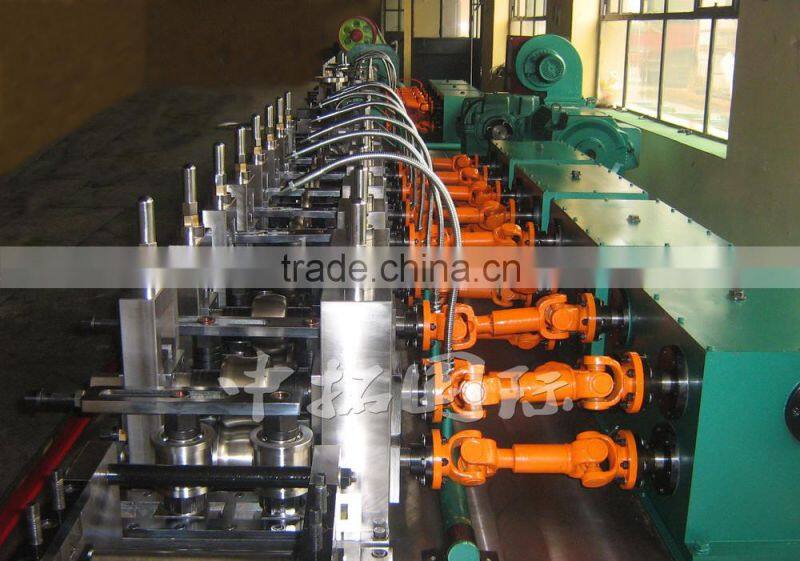

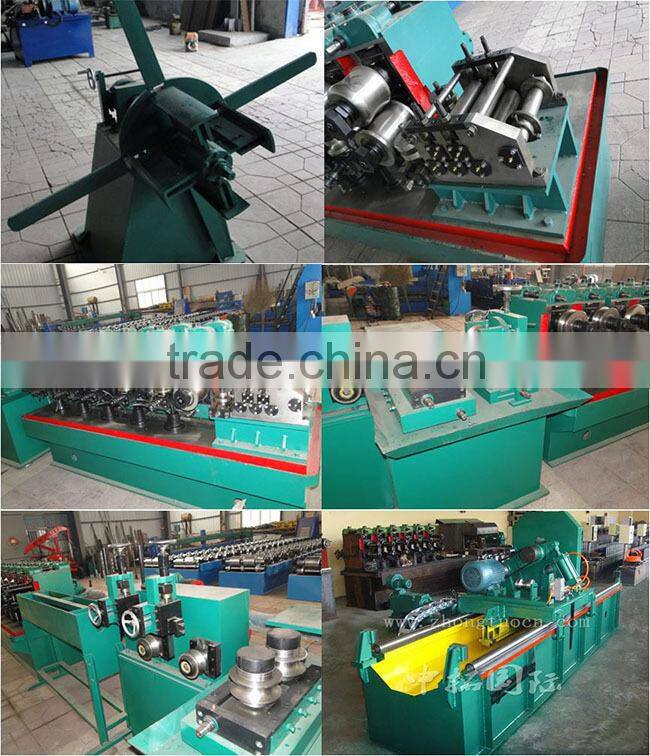

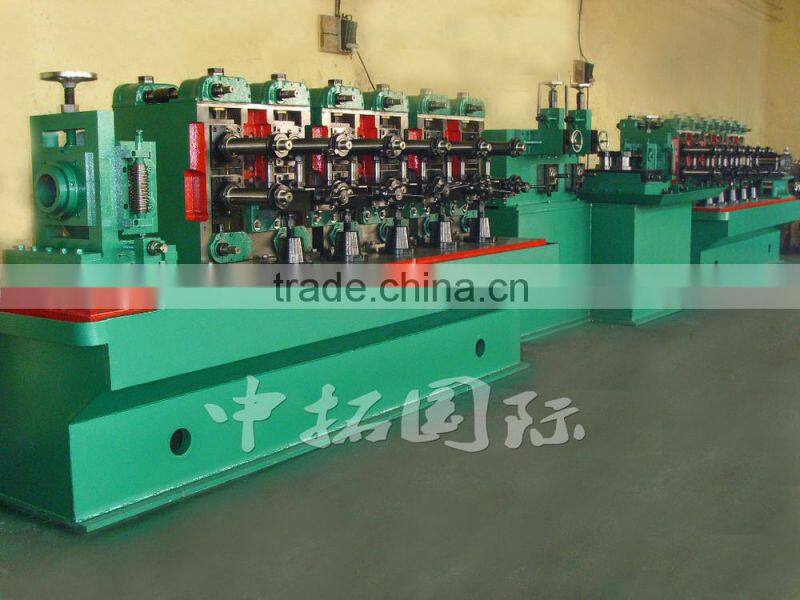

Here are some welding pipe roller for your reference:
Basic steel welding pipe roller parameters for your refereence:
Main elements of welding pipe roller | ||
Name | Frame | Parameters |
Loading car | Up coil by hydraulic power and motored car by electric power | Outside diameter of coil:1000-1600mm Max coil weight:6T Car speed:6m/min |

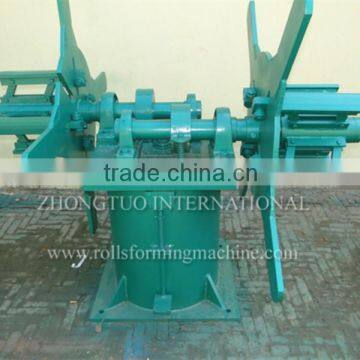

Decoiler | Conehead style with slider, motored by hydraulic power to open coil with brake. | Coil outside diameter:1000—1600mm Max coil weight:6T Motor: 4KW Oil tank: 110mm for 500mm one time |
Unbender unit | Open coil and put it to next processor. It has four oil tanks for leveling coil, open coil, up coil and put it to feeder. | Supported coil width:160—480mm Coil thickness: 0.4 -5.0mm Motor:2.2KW |
Two roll pass coil feeder | Send coil to cut to length machine for getting valid width of coil and then welded coils together. AC motor, gear box transmission and power by hydraulic tank. | Supported coil width:160-480mm Thickness of material:0.4-5.0mm Feeding speed: 20m/min Motor: AC 11KW |
Cut to length machine | Remove Irregular part of coil head and end for welding with new coil. Dragon Gate style upper cutting. | Supported coil width:160-480mm Thickness of material:0.4-5.0mm Oil tank power: 10mpa |
Platform for welding | Welded coil with next for nonstop production. Double diameter cylinder for tighten coil then weld them together. | Supported coil width:160-480mm Thickness of material:0.4-5.0mm |
Four-roll coil feeder | This part is for making sure there is enough coil in the accumulator, deliver coil to the accumulator. | Roller diameter:180mm Rolling width:580mm Material:GCr15 Motor:YCT 30KW Speed:100m/min |
Cage Accumulator | For coil stock and nonstop production. There are four parts, fixed frame, adjustable frame, coil plate and roller for tightening coil. | You can adjust this accumulator according to the coil width. |
More about welding pipe roller
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and
also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other neces
sary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Click on photos and learn more:
