Specification:
High quality automatic hydraulic aluminum coil decoiler
1.Automatically
2.High quality
3.Duable
4.Competitive price
Decoiler And Leveler Line (HCP-1300J)
Now there are many types of decoliers in Zhongtuo, rougly we divide them into three types: Hydraulic drives, electric drive and manual operation version. Those decoilers could be used with the machines like slitting machine, cutting machine, leveling machine and others.
We are involved in manufacturing and export of a comprehensive range of decoilers and uncoilers. Fabricated as per set industrial standards, our range of available in both motorized and non-motorized form. Stringently checked on quality parameters, these are available in various capacities and specifications to meet variegated demands of clients.
Hydraulic decoiler Machine
Our enterprise is the remarkable name in the market deals in manufacturing, exporting and supplying an extensive range of Decoiler Machine. This product finds application in various industries. Offered range is perfectly designed to meet the requirements of clients

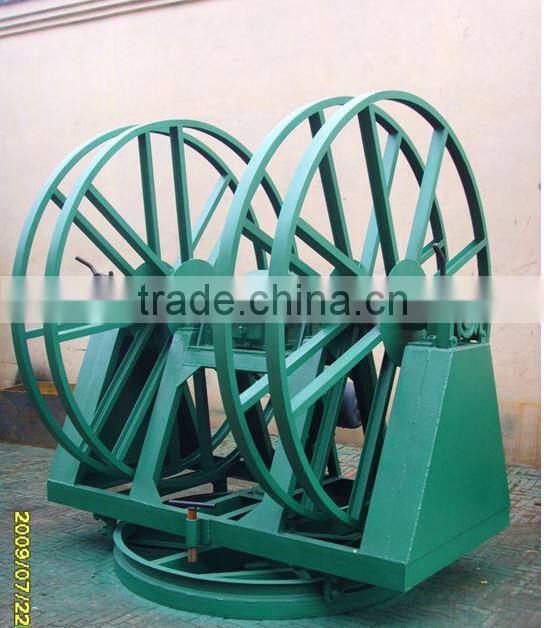

Twin Decoiler
Un-Motored Our range of twin De-Coilers are widely demanded across the global market, owing to their cost effective and optimum functioning. Un motored, these de-coilers are long lasting, resistant to rugged environment & corrosion and are simple to use. Moreover, these are also designed and developed as per client's specifications.

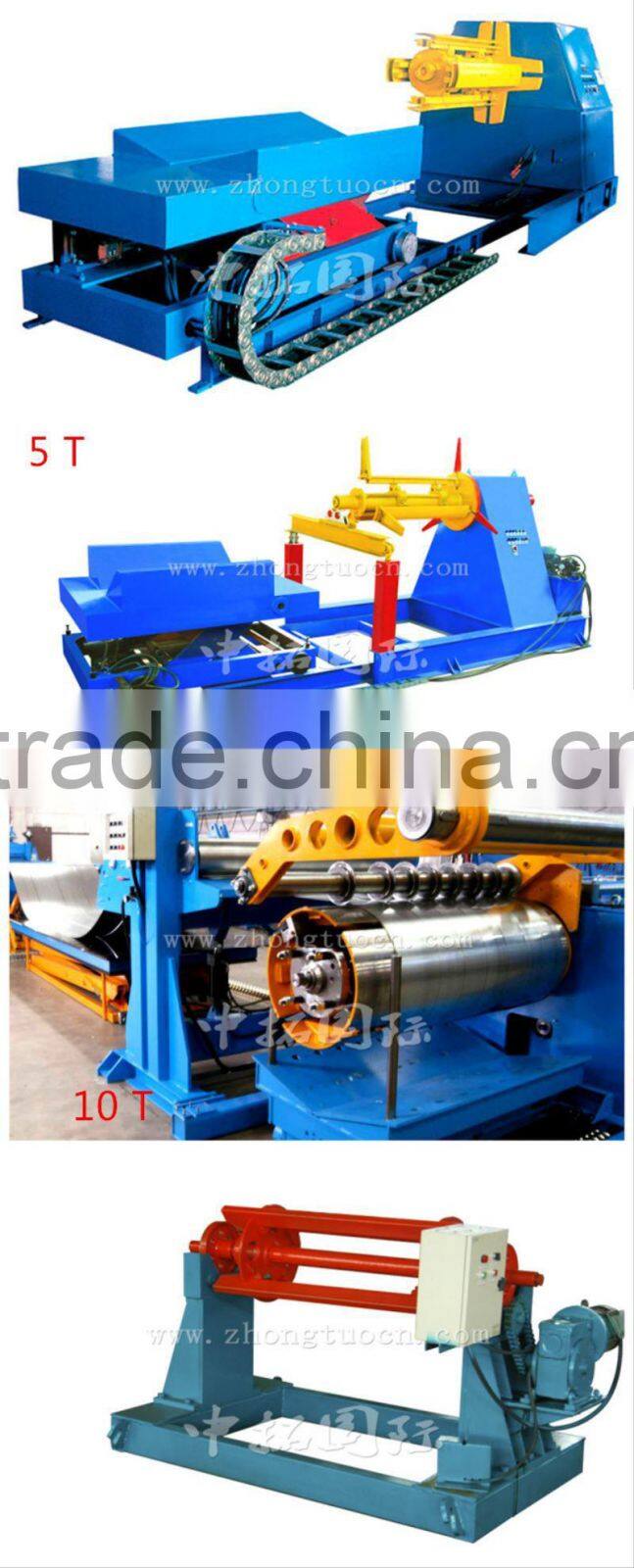

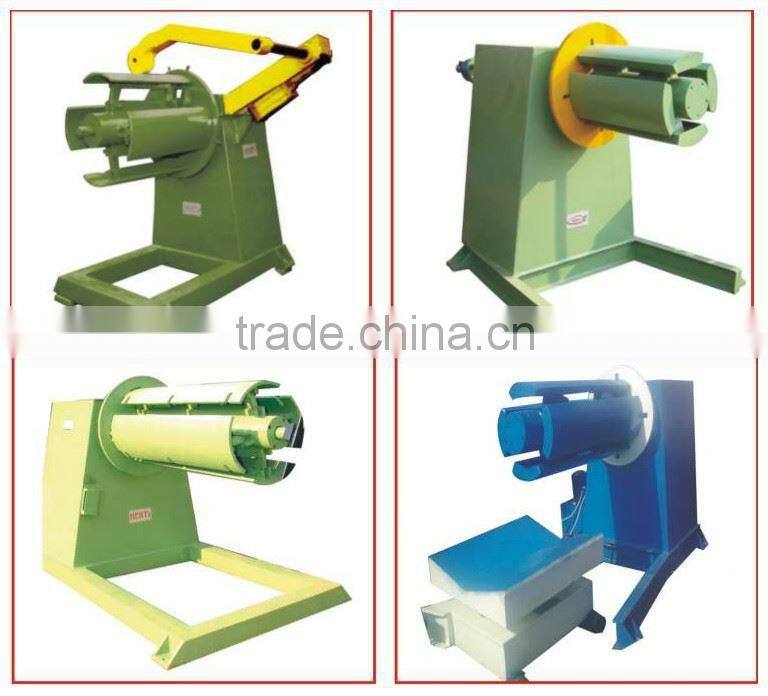

Now we have some pictures for your reference:
I divide the decolies by the ability of decoiling materials.And there are more for you to choose but I can not list all of them here.
Automatic Operation
Decoiler rotation is automatically loop arm controlled. The loop arm controls variable speed operation, providing smooth stops and starts. Variable speed reduces decoiler.
Safety
The decoiler rotary drive system and mandrel expansion power is fully guarded. The pendant control allows disabling automatic rotation during coil loading.
Electrical Requirements
Three phase electrical supply is required. Equipment can operate from 220-575 volts in 50 or 60 hz.
Construction
Construction includes steel plate and heavy structural sections. Plate seams are seal welded. Structural bracing is included where required. Mandrel expansion & contraction is by a link system including bronze bearings.
Decoiler Finish
After fabrication completion, the decoiler framework is machine cleaned and powder coated prior to electro-mechanical assembly.
Coil Car Option
A coil car with weight capacity matched to the specified decoiler can be included. The coil car includes a ‘v’ shaped surface to center coils during movement. The coil car includes sufficient vertical travel to touch the mandrel lower surface when fully extended. The powered coil car moves along steel tracks mounted within the decoiler base. Hydraulic check valve prevents vertical coil drop in the event of hydraulic pressure loss.
Installation
The decoiler and coil car can be installed by placing on a typical industrial concrete foundation and drilling holes for concrete expansion bolts. No special foundation is
Note: if you need machines like leveling, slitting or cutting, we can supply together.
