Downspout Forming Machine and Curving Machine

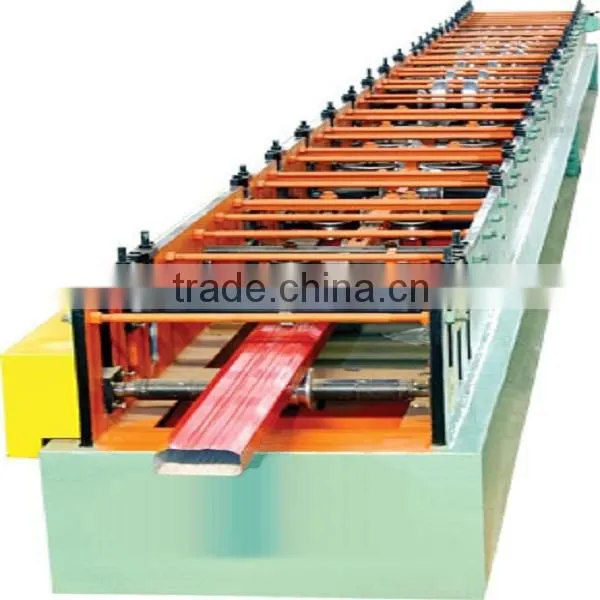

Downspout Forming Machine and Curving Machine thumbnail-1
Downspout Forming Machine and Curving Machine photo-1
US$ 54,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Glazed
Contact Supplier Request Quote Chat Now
Cangzhou Zhongtuo International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Glazed
Use Roof
Production Capacity 8-12m/min
Place of Origin Hebei, China
Brand Name zhongtuo
Model Number zt-100
Power(W) 5.5kw
Voltage 380V/50HZ 3Phase
Dimension(L*W*H) 8200*1450*1500mm
Weight 5.3T
Certification ISO9001 CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.lower cost
2.high efficiency
3.reliable working
4.low energy consumption

                    Downspout forming machine and curving machine



Product Description



1. Profile

1. feeding width 1200mm

2. material thickness 0.3-0.8mm

Downspout forming machine and curving machine

2. Process flow

Decoiling--feeding---forming---measuring---cutting---production



3. Decoiler

5 tons manual decoiler

Downspout forming machine and curving machine

4.Forming device

1. Shaft material 45# steel; outer diameter 80mm;

2.  Number of rollers :  13 rollers

3. Transport: by chains and gears

4. Forming speed: 8-12m/min

5. Motor: 5.5kw

6. Dimension:8200*1450*1500mm

7. Weight: 5.3t

5. Cutting device

1. Blade Material: Cr12 steel with quenched treated 60-62°C

2. Cutting system: stop then cut, full automatic

6.Controlling device



1. screen: text screen displayer



2. PLC: Taida DVP14ES from Taiwan



Downspout forming machine and curving machine

7. Hydraulic



1. Advanced hydraulic system from Taiwan



2. Power: 5.5kw



Downspout forming machine and curving machine

8. Spare parts

1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2. rubber mat 1 pcs;

3. bolt spanner 1 pcs





Our Services



Warranty



1). One year, and we will provide the technical support for the whole life.



2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas

    and USD50/person/day for salary.



3). Need one technicians



4).Training time: one week (contains the time of installation and adjustment)
