downspout roll forming machine and elbow machine
Our products are widely used in various factories, civilian building, warehouse and other steel structure building.
picture of Manual uncoiler
Manual uncoiler
No. |
Manual decoiler parameters |
|
1 |
Loading Capacity |
3 T |
2 |
Expanding inner diameter |
450-550mm
|
3 |
Feeding width |
Max 500mm |

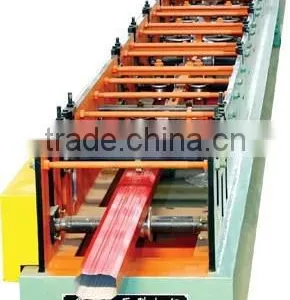

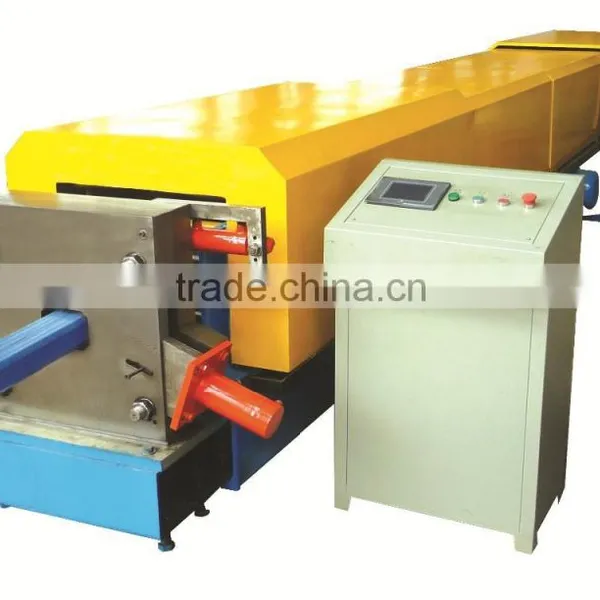

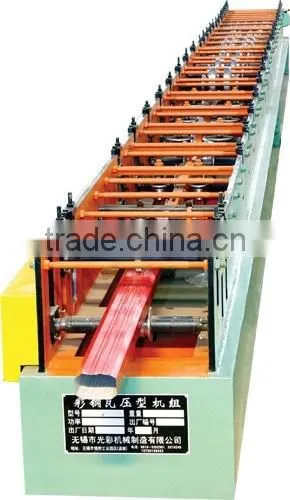

picture of Main roll forming machine
No. |
Main parameter of steel pipe roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
As customer need |
3 |
Thickness of the plate |
0.5-0.8mm |
4 |
De-coiler |
Manual one, can load 3 tons raw material |
5 |
Rollers for forming |
19 rows |
6 |
Diameter of the roller |
Φ60mm |
7 |
Rolling material |
Carbon Steel no. 45 |
8 |
Main motor power |
5.5 kw |
9 |
Productivity |
8-10m/min |
10 |
Cutting method |
mold cutting |
11 |
Material of the cutting blade |
Cr12 |
12 |
Hydraulic cutting power |
3kw |
13 |
Processing precision |
Within 2.00mm |
14 |
Control system |
Panasonic PLC control |
15 |
Main structure of the machine |
300 H steel |
16 |
Weight |
About 7.5T |
17 |
Dimensions |
17*1.2*1.4m |
18 |
Voltage |
380V 50Hz 3phases(changeable as needs) |
picture of elbow machine
A. Specification of Elbow machine
1) Function:curving the pipe and locking mouth
2) Motor power: 4KW
3) Control method:Electrical control
4) Max angle: 90 degree
5) Dimension of the machine: 1300 mm×650 mm×1500 mm
Terms of payment:
30%T/T ,70% Balance to be paid before shipping after inspection
Warranty
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician
Packaging Details:
1. one 40ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
