Help CenterDownpipe Roll Forming Machine and Elbow Machine
Related Products
-
Downspout Roll Forming Machine and Elbow MachineUS$ 35,000 - 45,000MOQ: 1 Set -
Downspout Roll Forming Machine and Curving MachineUS$ 35,000 - 45,000MOQ: 1 Set
-
Rain Water Pipe Making Machine ManufacturerUS$ 30,000 - 40,000MOQ: 1 Set
-
High Quality Drain Pipe Roll Forming Machine(76.2*102.6)US$ 30,000 - 40,000MOQ: 1 Set
-
Downpipe Making Machine, Oversea Service AvailableUS$ 30,000 - 40,000MOQ: 1 Set
downspout roll forming machine and elbow machine
picture of Manual uncoiler
Manual uncoiler
1) Loading Capacity: 3 T
2) Feeding width: MAX 500mm
3) Expanding inner diameter: 450-550mm

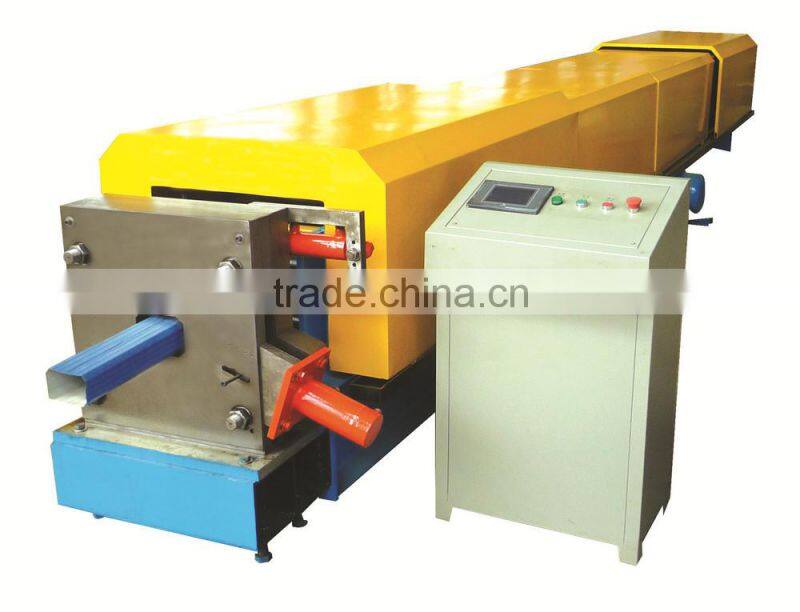

picture of Main roll forming machine
Main roll forming system
1) Main motor power: 8kw
2) material :color steel coil
3) Material thickness: 0.5-0.7 mm
4) Drive mode: single Chain transmission
5) Main shaft diameter : 60mm
6) Shaft material: no.45 forge steel and quenched
7) Roller material: no.45f orge steel and quench treatment hardness 58°-60°, chrome coated 0.05mm
8) Roll station: 23 groups
9) Working speed: 10m--15m/min(Exclude cutting time)
10) Weight of main roll forming machine: about 5T
11) Size of machine: About 11800×12000×9000mm (L x W x H)
12) Color: depend on customer
13) Coder: Omron
14) Control: PLC Panasonic, . 380V/ 50HZ /3Phase
15) Computer operating panel: touching screen
16) Cutting: Hydraulic cutting
17) Cutting tolerance: ± 2mm
picture of elbow machine
A. Specification of Elbow machine
1) Function:curving the pipe and locking mouth
2) Motor power: 4KW
3) Control method:Electrical control
4) Max angle: 90 degree
5) Dimension of the machine: 1300 mm×650 mm×1500 mm
Terms of payment:
30%T/T ,70% Balance to be paid before shipping after inspection
Warranty
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician
Packaging Details:
1. one 40ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia etc.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
