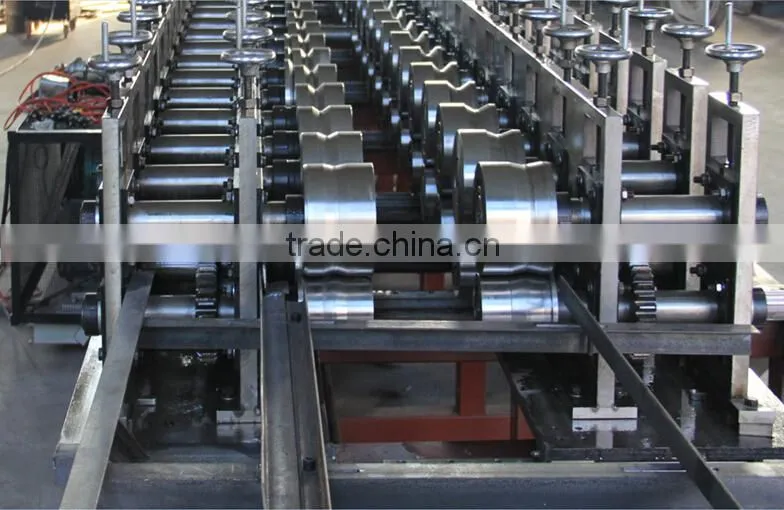

Supermarket shelf panel / rack panle roll forming machine
Brief introduction:
Supermarket shelf panel / rack panle roll forming machine is a kind of machine for making various types panle for supoer market shelf. It will do roll forming, cutting angle and folding together. From the decoiler to the finished, it is totally fully automatic. You do not need to do anything. The machine working speed could reach 25m per minute.

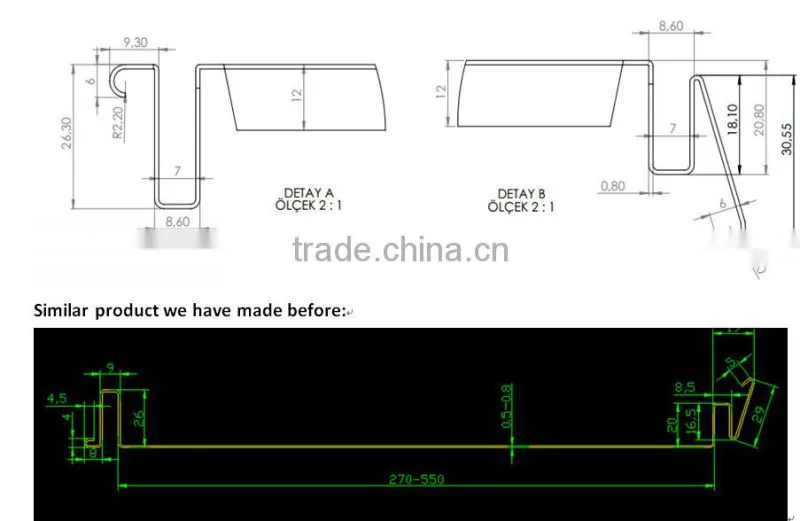

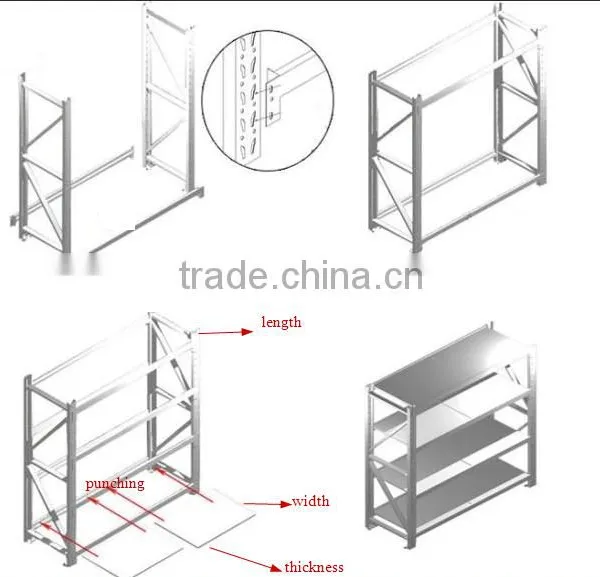

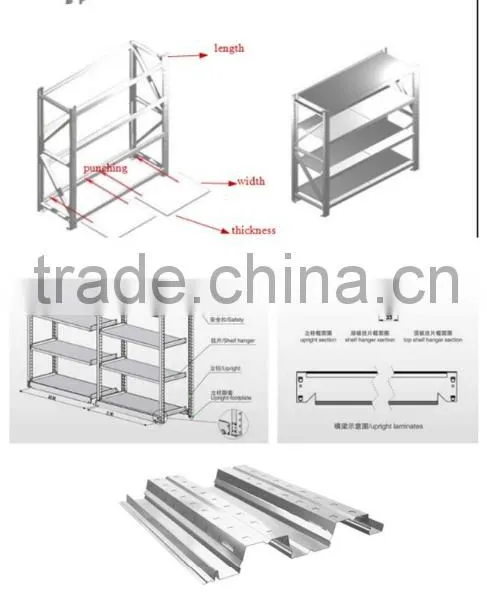

Here are some drawing profile we have made for your reference:
Supermarket shelf panel / rack panle roll forming machine
working process:
Decoilerà punching angle to bend edgeà roll forming machineà cut to lengthà bending again
Main elements and its parameters;
Decoiler: | ||||||
Inner ID |
450-550mm |
|||||
Supporting Weight |
3 Ton |
|||||
Motor Power |
3KW |
|||||
| ||||||

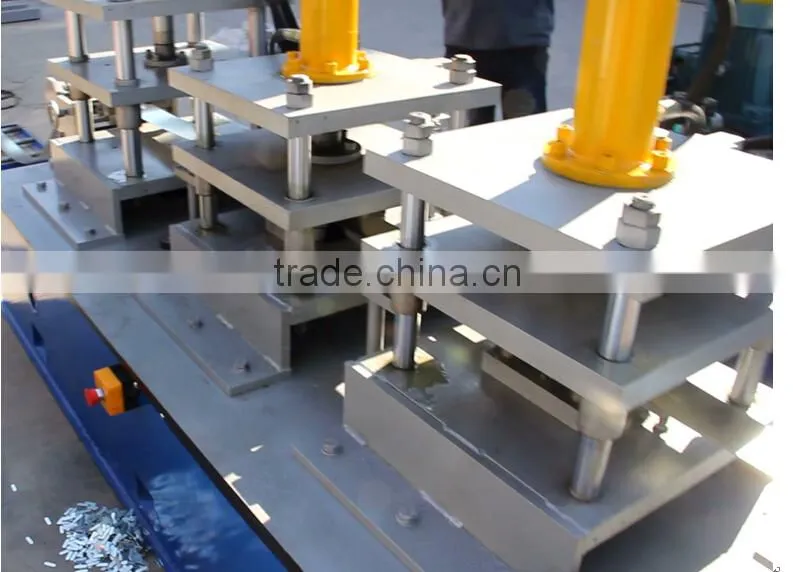

Punching station | ||||||
Servo feeder |
Servo feeder, feed coil to the punching station. |
|||||
Motor power |
3kw |
|||||
Style |
PLC control, Taida brand made in Taiwan |
|||||
Feeder roller |
Quenching by 45 # steel |
|||||
Accuracy |
±0.1 |
|||||
Feature |
Positioning of several holes to ensure feeding accuracy |
|||||
Roller material |
SKD11 |
|||||
Upper and lower die |
45# steel |
|||||
Punching oil tank |
80T |
|||||
Hydraulic oil pump | ||||||
Motor power |
5.5kw |
|||||
Pressure |
18Mpa |
|||||
| ||||||
Main roll forming machine | ||||||
Roller station NO. |
26 stations |
|||||
Shaft material |
45# Quenching, grinding and tempering treatment |
|||||
Shaft diameter |
50mm |
|||||
Roller material |
Cr12 Quenching |
|||||
Main motor power |
5.5kw |
|||||
Shearing cutting system |
45 degrees oblique |
|||||
PLC control system |
Delta PLC delta inverter, high precision fiber cut hole number, Cutting accuracy 0.3 |
|||||
Hydraulic cutting power |
5.5kw |
|||||
Cutter blade material |
Cr12 Quenching |
|||||
| ||||||
Shearing and folding system of panel edge | ||||||
Usage |
This part is mainly for folding the edge of the panel and shearing it according to the PLC specifiedlength. |
|||||
Motor type |
Servo motor to make sure the accuracy |
|||||
Motor power |
2.2kw |
|||||
Hydraulic power |
4kw |
|||||
Bending power |
Hydraulicpower to bend degree |
|||||
Bending |
Bending will do together with the roll forming process. |
|||||
Runout table | ||||||
Usage |
To pick up the finished product and arrange them for loading easily. |
|||||
Size |
3m*6m steel welded or customize |
|||||
Delivery Terms |
Shipment within 45 days after receipt of down payment. |
|||||
Payment Terms |
Method 1 - 30%: The payment shall pay by T/T the downpayment to the Seller within 15 days after the signature of the Contract. The Contract then comes into effect. - 70%: The buyer shall pay to the seller 70% of total contract amount before the seller’s ship the machine to XINGANG, CHINA. Method 2 L/C At sight |
|||||
Equipment Manufacturing and Inspection/Test |
The Seller manufactures the equipment according to the relevant standards strictly and tests the equipment according to the contract. 2. The Buyer shall inspect and test the commodities at the Seller’s factory at the Seller informs to confirm their conformity to the Contract Specifications. If the Buyer fails to arrive on time, the Seller shall have the right to deliver the goods according to the date stipulated in the Contract. |
|||||
Warranty |
Free the first year for all and the whole life tech support. |
|||||

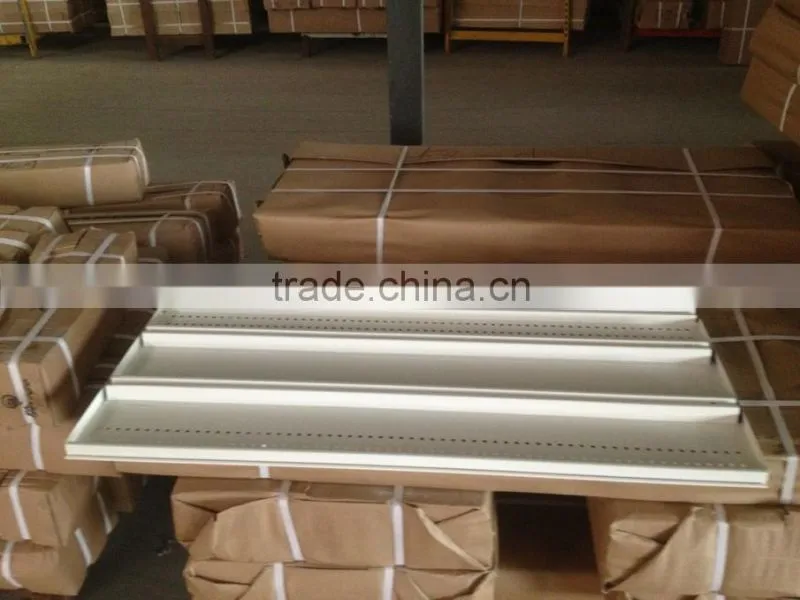

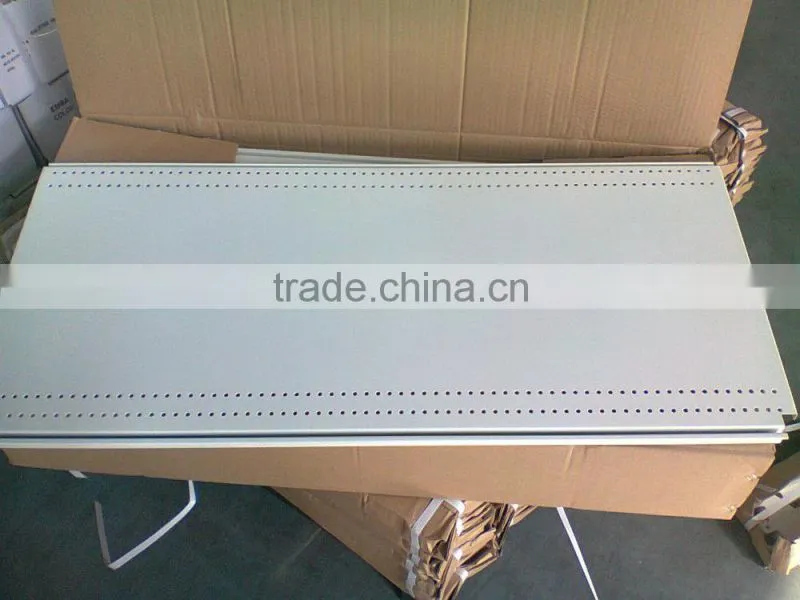

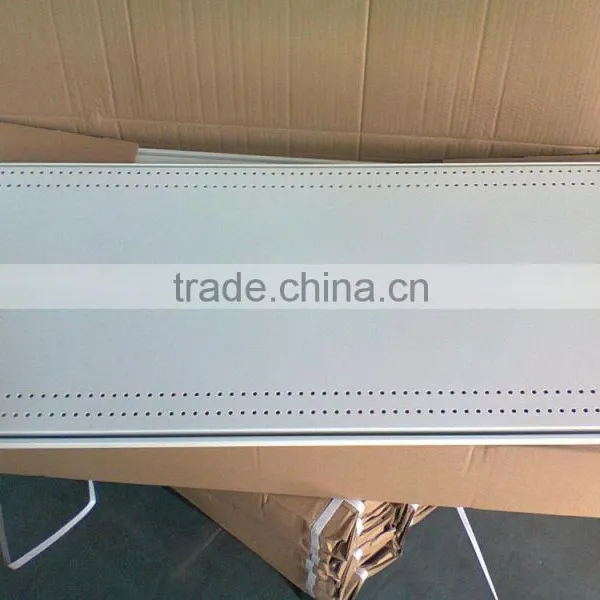

Finished products of supermarket panel:
Supermarket shelf panel / rack panle roll forming machine will be packaged nude and there will steel rope to fasten them on the containers. And before delivery, we will put heave anti-water oil on the machine.
Cangzhou zhongtuo cold roll forming machinery as a manufacturers from 2006. We are specialized in manufacturing color steel forming machine,light keel machine,C&Z purlin machine,Glazed tile forming machine,welded tube mill, stone coated roof production line,steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material. We real provide you one station, non-stop service,Now,our machine have been exported to 30 countries,such as Canada,South Korea,Russia,Holland,Sri Lanka,Malaysia,India,Brazil,etc.Our company insists on the service aim: Quality First,Credit First. We believe that we can make the future cooperation and achieve win-win.
Payment method:
Method 1:
Payment of the contract with following schedule:
- 30%: The payment shall pay by T/T the down payment to the Seller within 15 days after the signature of the Contract. The Contract then comes into effect.
- 70%: The buyer shall pay to seller the remaining 70% of total contract amount before the seller’s ship the machine to XINGANG, CHINA.
Method 2
L/C is also acceptable.
Technical Documents
The Seller shall submit the following documents in English:
1. Foundation Plan (including the arrangement of water, electricity and air ect.)
2. Arrangement Plan
3.Operation Instruction (including the structure diagrams of the equipment, operation instruction, maintenance and trouble shooting, safe rules, consumable parts list and purchased parts list)
Installation, Commissioning, Test and Training
1. The engineers from the Seller shall supervise the installation on site and fulfill the commissioning. They should start off within 10 days after they get the information from the Buyer.
2. The Buyer signs in the Certificate of Acceptance.
3. The Seller trains the operators of the Buyer during the commissioning
4. Commissioning: about 3 engineers in 30 days.
5. The Buyer shall pay for the international air tickets and the local, such as board and lodging, daily transportation, communication,Insurance, etc. The Buyer shall pay USD 100 /day /person to the Seller for the commissioning.
6. The Buyer shall prepare an interpreter for better communication between the two sides.
