Thin sheet slitting roll forming machine
Product Description

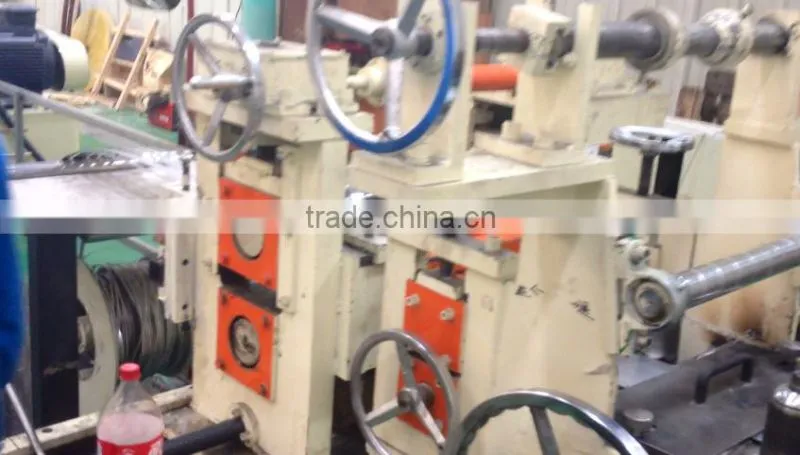

Thin sheet slitting roll forming machine is a kind of special equipment which could be used to slit coil to very thin sheet for some special roll forming machine. And the whole production line is composed by decoiler, slitting maine machine and the recoiler.
Supported material thickness:0.3-3mm
Supported coil width:600
Main parameters of this slitting line:
NO. |
Item name |
Unit |
Parameter |
1 |
Control mode |
|
Frequency conversion control |
2 |
Supported material |
|
Cold rolled coil, galvanized steel coil |
3 |
Material thickness |
mm |
0.3-1mm |
4 |
Max width |
mm |
550 |
5 |
ID |
mm |
508 |
6 |
OD |
mm |
1400 |
7 |
Recoiler diameter |
mm |
508 |
8 |
Max loading weight |
Ton |
5Ton |
9 |
Blade specification |
mm |
Φ220×Φ120x10 |
10 |
Blade material |
|
6CrW2Si |
11 |
Working speed |
m/min |
≤80 |
12 |
Electrical |
|
380V/50Hz |
13 |
Decoiler motor |
kw |
15 |
14 |
Main machine power |
kw |
22 |
15 |
Recoiler motot |
kw |
30 |
16 |
Max slitting pieces |
piece |
8 |
17 |
Error |
mm |
±0.05 |
Machine elements
Working flow of the thin sheet slitting line:decoiler—slitting-water scrap recoiler—storage—main power station—recoiler
-
Hydraulic loading car
1. It could move up and down facilitating moving coil easily.
2.Hydrallic power driver,it composed by one oil tank, 4 pillars for anti turning over of coil.3. Configuration of 1.5Kw motor drive level of the motor.
4.Loading ability:5T (Max)
-
Hydraulic expansion type decoiler
1. Structure: Hydraulic wedge type machine adjusting tension coil inner hole, the motor drives the coil unwinding.
2.Specification:Φ520max×550
3.Max supporting weight:P≤5Ton
4.Speed adjuster power: 15KW,working speed adjustable
5. The motor could work clockwise or anti- clockwise two modes to meet the needs of production operation.
-

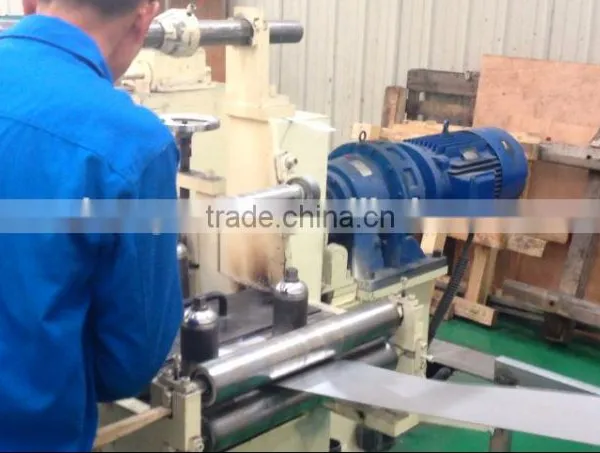

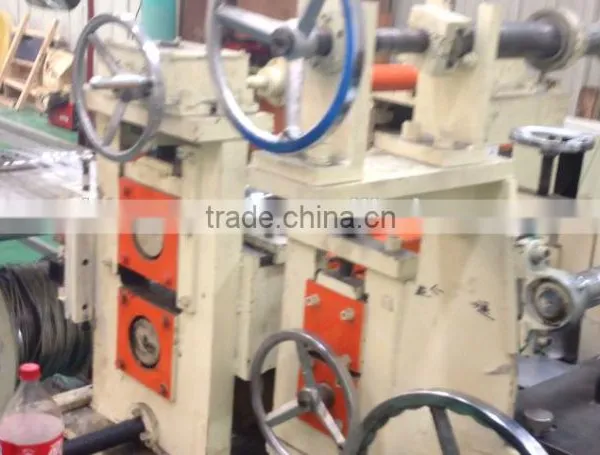

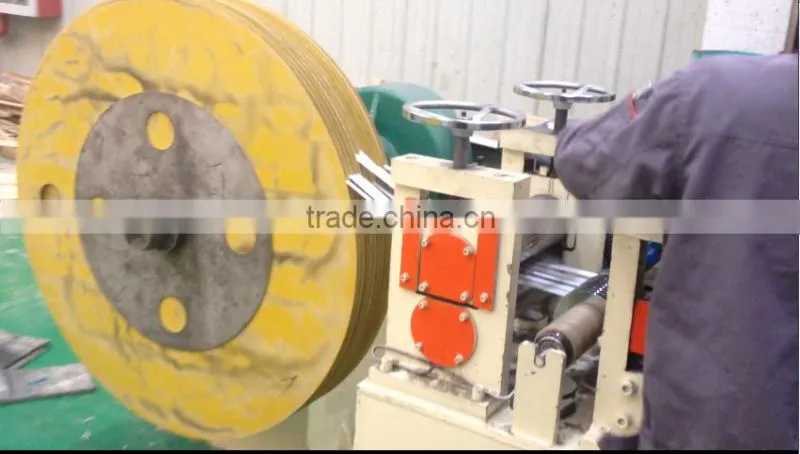

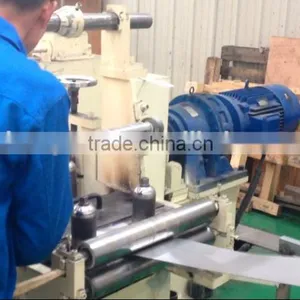

Φ120×650mm(valid)round plate slitting machine
1.Blade roller type:Φ120MM,Keyway:16MM
2.Material thickness:δ=0.5-3.0mm.
3.Shearing blade width:B≤620(valid shearing )
4. Motor: 22KWVariable speed motor, clutch to disengage power set
5. Reducer: to adjust speed
6. Disc shearing, round shearing.
7. With the entry guide, the device of disc shear, the arch can be removed conveniently, with the change of blade size.
8. with inserting plate device to improve the shear quality of thin material. Random with a bakelite plate.
9.Slititng speed:v=0-60m/min
-
Waste recycle part
1. This part is put all slitting waste into together.
2. From the frame, the side of the wire, the side of the cylinder, the friction wheel, etc., supporting the chain wheel, chain, reducer, motor, etc.
Storage pit
We will make drawing of this part according to customer factory situation.
-
A material pressing, wiping device (1 sets)
1 This part is for about guide for points of steel strip, prevent the deviation, enhancing the coiling uniformity and with coiling machine produces tension, to ensure that the sheet winding tight and neat.
2. The little small blade is made by 9CrSi Alloy material production, plastic separation of the ring with small random separation axis.

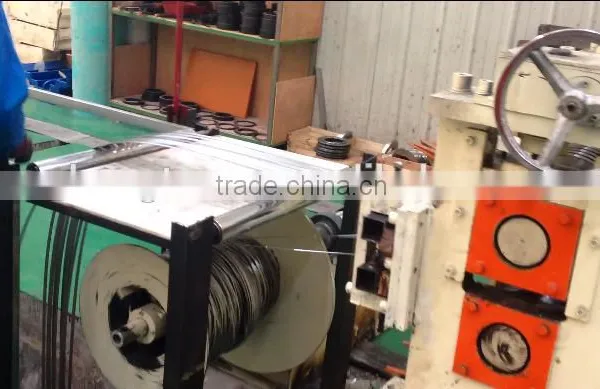

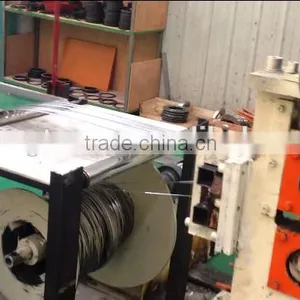

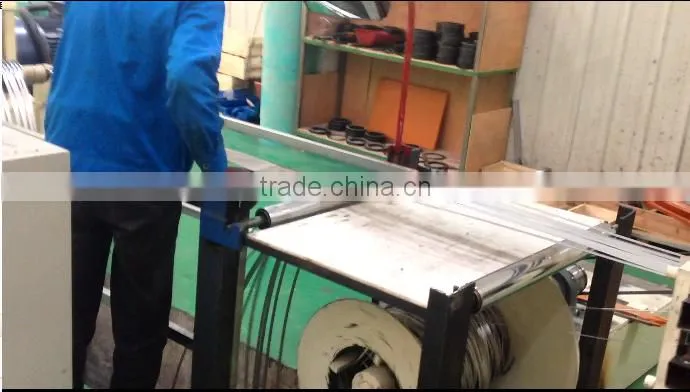

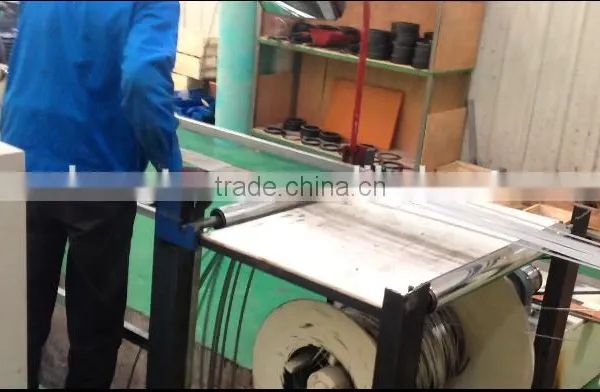

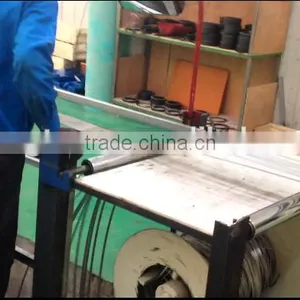

Recoiler
-
1.recoiler specification:take plate type,it could be used to recoil as the following diameter: 100, 120, 130 160, 165, 180, 200, 300 The Max diameter: 800mm
2.Max loading ability:≤5T
3.Motor: 30KW AC frequency conversion motor;
-
Hydraulic station(1set)
It is used for provide the power of the machine.
PLC Control station(1set)
Note: if you need machines like leveling, slitting or cutting, we can supply together.
