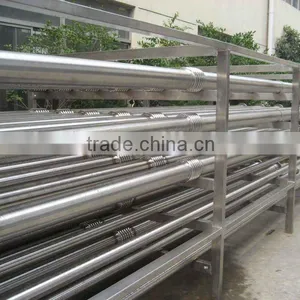

UHT Tubular Pasteurizer
US$ 1,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Kaae
Model Number:
Ka
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Stainless Steel Milk Vacuum DeaeratorUS$ 1,000 - 2,000MOQ: 1 Set -
Hot Product Full Automatic Liquid Vacuum DeaeratorUS$ 1,000 - 10,000MOQ: 1 Set
-
Tube in Tube SterilizerUS$ 10,000 - 100,000MOQ: 1 Set
-
High Temperature Sterilization Machine / UHT Juice Sterilizer MachineUS$ 1,000 - 50,000MOQ: 1 Set
-
Fruit Juice Pasteurization Machine/ UHT/HTST SterilizerUS$ 1,000 - 50,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Kaae
Model Number
Ka
Usage
Other, Sterilizer
Type
Other, Sterilizer
Certification
ISO, CE certification
Specifications
1 Liquid pasteurizer2 High heat rate
3 Automation
4 Good Quality, SS304
5 Good price, service.
Tubular UHT sterilizer advantage
1 High heat efficiency, 90% of heat reused.
2 Automation control
3 Sterilize thoroughly and fully
4 with self CIP and SIP system
Usage
1 Mainly used for aseptic filling packing types products, such as tetra paper brick, tetra paper pillow, aseptic soft plastic bag, aseptic PET bottles,especially used for liquid milk and juice.
2 It can be used to do continuous sterilizing and be connected to homogenizer and water removing equipment.
Technical Data
| Model | KATG-UHT-1.5 | KATG-UHT-3 | KATG-UHT-5 |
| Capacity(L/H) | 1500 | 3000 | 5000 |
| Inlet temperature | 25-40°C | 25-40°C | 25-40°C |
| Holding temperature time(s) | 120-180 | 120-180 | 120-180 |
| Sterilizing temperature | 95-121°C | 95-121°C | 95-121°C |
| Outlet temperature | 25-35°C | 25-35°C | 25-35°C |
| Tower water inlet temperature(°C) | -30 | -30 | -30 |
| Steam pressure | 0.5Mpa | 0.5Mpa | 0.5Mpa |
| Steam consumption | -150Kg/h | -210Kg/h | -280Kg/h |
| Compressed air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Compressed air consumption | 50L/H | 50L/H | 60L/H |
| Overall dimensions(L*W*H) | 7000*2000*2000 | 7000*2000*2000 | 7000*2000*2000 |
| Weight | 1700Kg | 2000Kg | 2200Kg |
