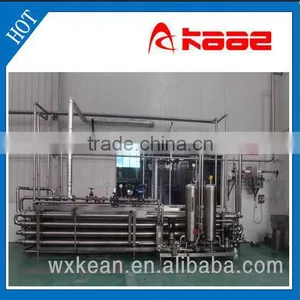

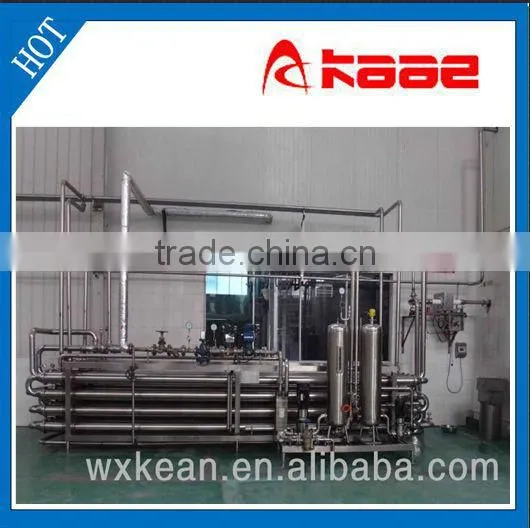

liquid sterilizer manufactured in Wuxi Kaae
USD $1,000 - $100,000
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | KAAE | |
| Model Number | KABSJ | Type | Other, Sterilizer | |
| Voltage | 220/380V | Power(W) | As the capacity | |
| Weight | As the capacity | Dimension(L*W*H) | As the capacity | |
| Certification | ISO CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1 High heat efficiency,.2 Automation control
3 Sterilize thoroughly and fully
4. Capacity5-50T/H
5. Continue sterilize.
Wuxi Kean Automation Equipments Co.,Ltd.
Leading Company of the Fruits and Vegetables Processing Industry
liquid sterilizer advantage
1 High heat efficiency, 90% of heat reused.
2 Automation control
3 Sterilize thoroughly and fully
4 with self CIP and SIP system
Usage of liquid sterilizer
1 Mainly used for aseptic filling packing types products, such as tetra paper brick, tetra paper pillow, aseptic soft plastic bag, aseptic PET bottles,especially used for liquid milk and juice.
2 It can be used to do continuous sterilizing and be connected to homogenizer and water removing equipment.
Technical Data
| Model | KATG-UHT-1.5 | KATG-UHT-3 | KATG-UHT-5 |
| Capacity(L/H) | 1500 | 3000 | 5000 |
| Inlet temperature | 25-40°C | 25-40°C | 25-40°C |
| Holding temperature time(s) | 120-180 | 120-180 | 120-180 |
| Sterilizing temperature | 95-121°C | 95-121°C | 95-121°C |
| Outlet temperature | 25-35°C | 25-35°C | 25-35°C |
| Tower water inlet temperature(°C) | -30 | -30 | -30 |
| Steam pressure | 0.5Mpa | 0.5Mpa | 0.5Mpa |
| Steam consumption | -150Kg/h | -210Kg/h | -280Kg/h |
| Compressed air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Compressed air consumption | 50L/H | 50L/H | 60L/H |
| Overall dimensions(L*W*H) | 7000*2000*2000 | 7000*2000*2000 | 7000*2000*2000 |
| Weight | 1700Kg | 2000Kg | 2200Kg |
