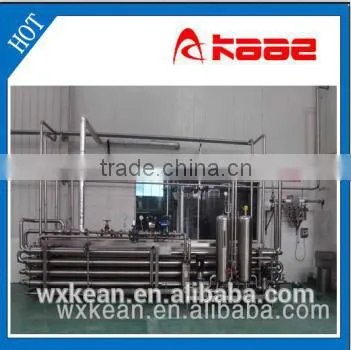

Good Quality Tubular Heat Exchanger Manufactured in Wuxi Kaae

FOB Price

US$ 5,000 - 100,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Kaae Tubular heat exchanger
Model Number	Ka Tubular heat exchanger	Usage	Other, Sterilizer
Type	Other, Sterilizer	Voltage	220/380V
Power(W)	As the capacity	Weight	As the capacity
Dimension(LWH)	As the capacity	Certification	ISO CE
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1 Sterilize throughly, Safely.
2 High heat rate
3 Automation
4 Good Quality, SS304
5 Good price, service.

Tubular heat exchanger advantage

1 High heat efficiency, 90% of heat reused.

2 Automation control

3 Sterilize thoroughly and fully

4 with self CIP and SIP system

Usage of Tubular heat exchanger

1 Mainly used for aseptic filling packing types products, such as tetra paper brick, tetra paper pillow, aseptic soft plastic bag, aseptic PET bottles,especially used for liquid milk and juice.

2 It can be used to do continuous sterilizing and be connected to homogenizer and water removing equipment.

Technical Data of Tubular heat exchanger

Model	KATG-UHT-1.5	KATG-UHT-3	KATG-UHT-5
Capacity(L/H)	1500	3000	5000
Inlet temperature	25-40°C	25-40°C	25-40°C
Holding temperature time(s)	120-180	120-180	120-180
Sterilizing temperature	95-121°C	95-121°C	95-121°C
Outlet temperature	25-35°C	25-35°C	25-35°C
Tower water inlet temperature(°C)	-30	-30	-30
Steam pressure	0.5Mpa	0.5Mpa	0.5Mpa
Steam consumption	-150Kg/h	-210Kg/h	-280Kg/h
Compressed air pressure	0.6Mpa	0.6Mpa	0.6Mpa
Compressed air consumption	50L/H	50L/H	60L/H
Overall dimensions(LWH)	700020002000	700020002000	700020002000
Weight	1700Kg	2000Kg	2200Kg
