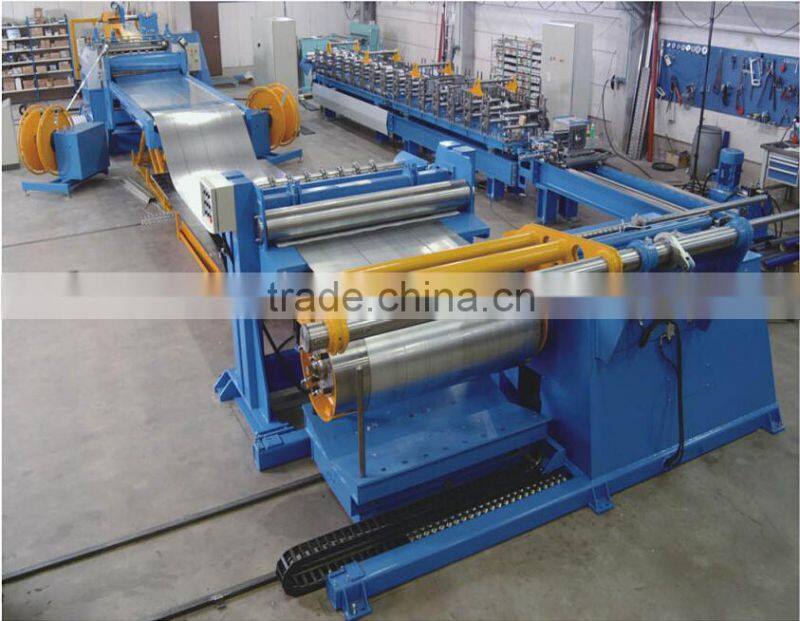

slitter and cutter machine
slitter and cutter machine process flow :
Decoiling → slitting→ extension → recoiler→ unload
Raw material specifications:
Raw material: Pre-painted
Thickness: 0.3--0.8mm
Width: 900—1250mm
Inner diameter: 508mmmm
Finished product specifications:
width tolerance: 0.5mm
Min slitting width: 100mm
Decoiler specifications:
Max coil weight: 5 T
Inner diameter: 508mm
Max out diameter: 1200mm
Hydraulic station power: 4Kw
Decoiler speed: 0-15m/min

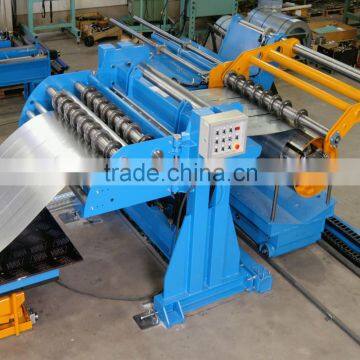

Slitting device specifications:
Slitting speed: 0-15mm/min
Driving motor: 4 Kw
Slitting shaft diameter: 100mm
Shearing blade: 9 pieces
Max slitting pieces: 10 pieces
Min slitting width: 100mm
Shearing blade material: 12CrMoV
Pinching roller: 2 couples
Cutting device:
Cutting thickness: 0.3—0.8mm
Cutting length: 500-4000mm
Cutting width: 9000-1250mm
Cutting speed: 4-5pcs/min(2000mm per pc)
Cutting station power: 3Kw.

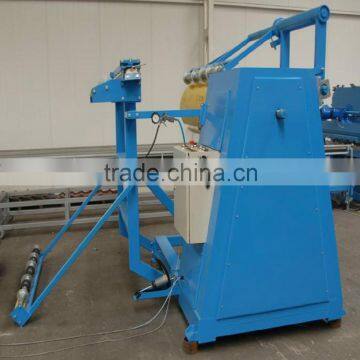

Recoiler specifications:
Max coil weight: 5 T
Inner diameter: 508/610mm
Max out diameter: 1250mm
Recoiler motor: 5.5Kw
Hydraulic station power: 4Kw
Recoiler speed: 0-15m/min
Motor:18.7kw
Voltage:380V/3ph/50Hz
Weight:8000kg(the exactly weight depend on the machine)
Size:12 X 4 X 1.8 m
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th
ings.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Warranty
1. One year, and we will provide the technical support for the whole life.
2.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technicians
4. Training time: one week (contains the time of installation and adjustment.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich has its own
factory and also cooperate with several production factories and associated nterprises, concerning with the design,
development and production of cold roll forming machines,material of building. It is located in northwest of CangZh
ou, as a long history of cold roll formingmachine production base. All products comply with international quality stan
dards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,
South America, and Australia and so on.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your ma
chines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pi
ck up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the b
roken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor t
o solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types o
f cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing ho
w to make machines much more automatic, accurate and high quality. We can make sure that our machine could us
e more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in
a hurry, we can make it for you less than a month.
