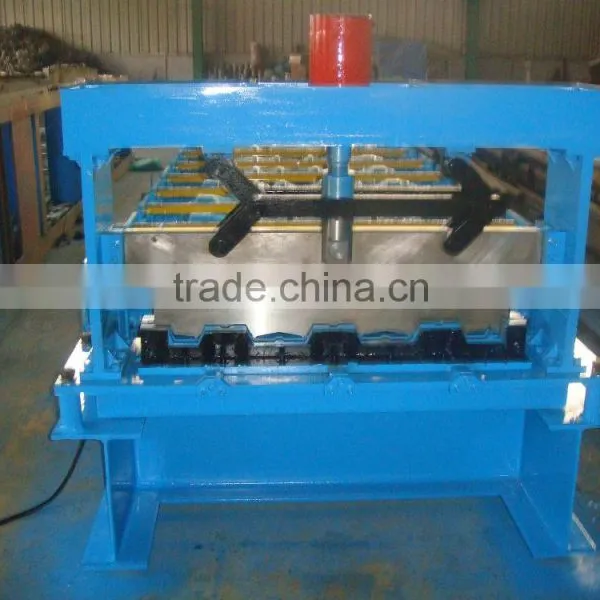

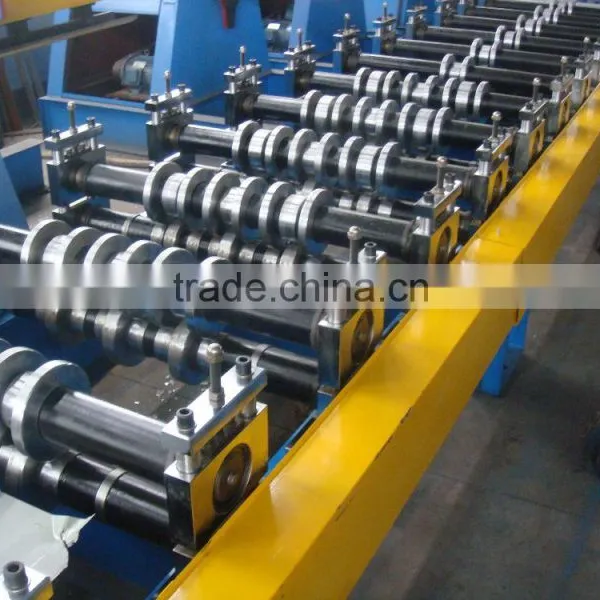

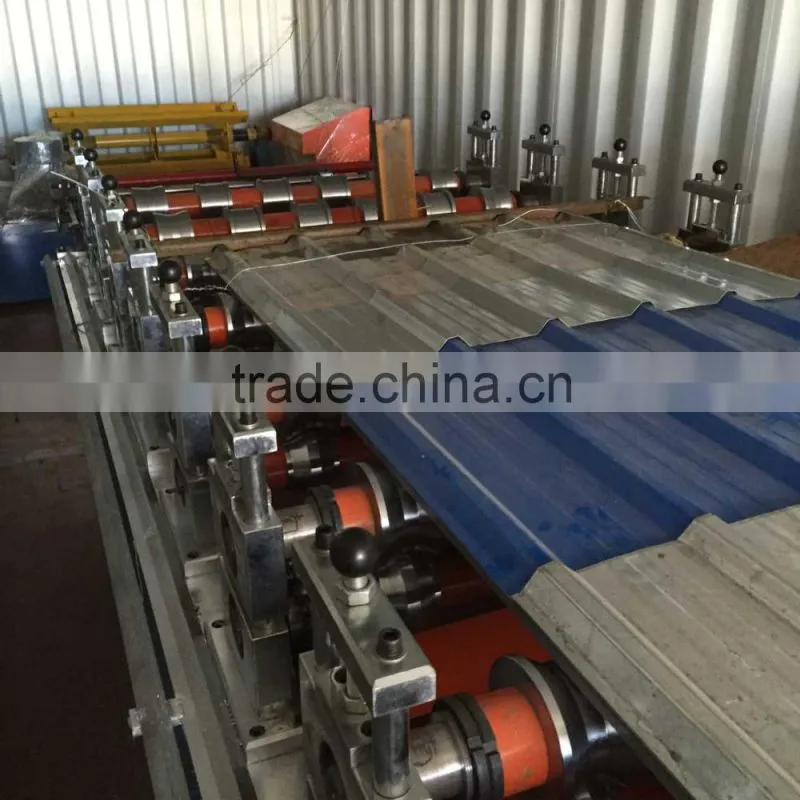

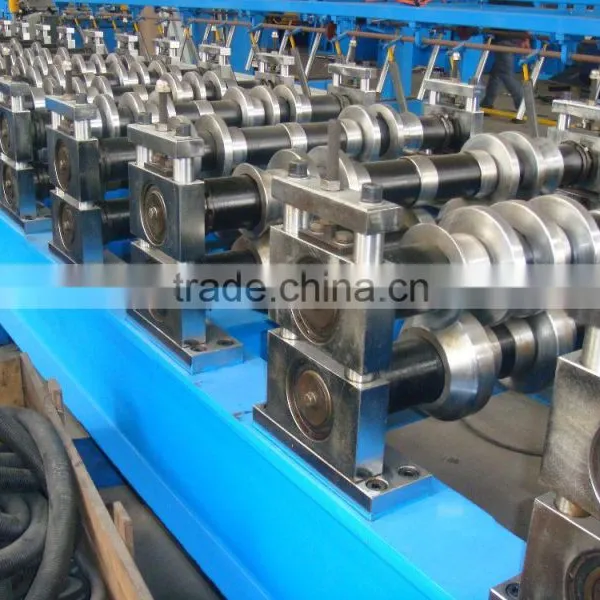

ISO Passed Full-automatic Hydraulic Metal Sheet Wall and Roofing Panel Forming Machine ISO and CE ZBR-ZR971.1-1220 Passed Full-automatic Hydraulic Metal Sheet Wall and Roofing Panel Forming Machine
ISO Passed Full-automatic Hydraulic Metal Sheet Wall and Roofing Panel Forming Machine ISO and CE ZBR-ZR971.1-1220 Passed Full-automatic Hydraulic Metal Sheet Wall and Roofing Panel Forming Machine has the function to make roofing sheet metal.It works with high speed.Its thickness is 25mm to make sure the machine workong well for more than 10 years.The factors of the machine are world famous grand.The materials of the rolls and shafts are best,which can make the machine in perfect condition after a long time use.

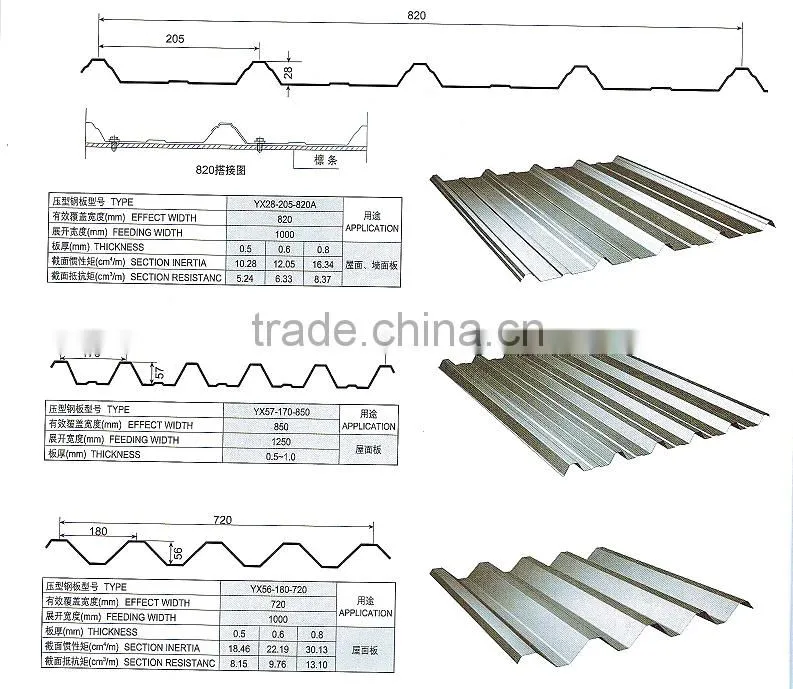

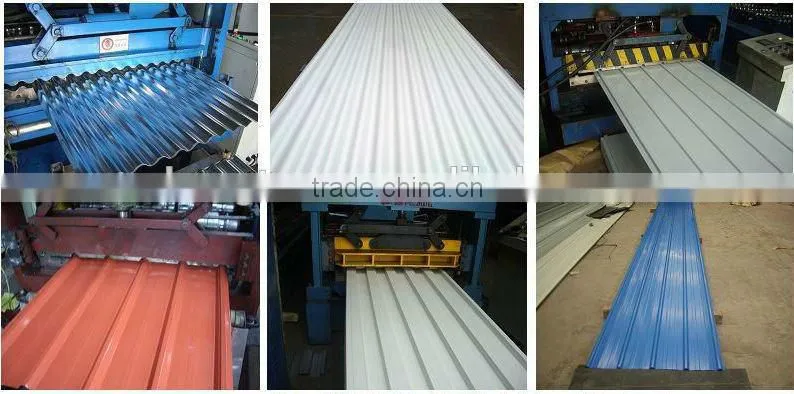

Some drawing profile of IBR sheet for reference:
Working Process of Roofing glazing roll forming machine :
Uncoiling→ Feeding material into machine→ Roll forming→ Measuring length→ Step formed→ Auto cutting→ Products receiving
Main parameters of Roofing glazing roll forming machine:
1 |
Length of the main part |
About9500*1650*1500mm |
2 |
Weight of main part |
About 6.8 Ton |
3 |
Voltage |
380V/50HZ3Phase (as customer’s request) |
4 |
Roller fixer |
Middle plate welded |
5 |
Frame |
Guide pillar and the thickness is 50mm |
6 |
Frame thickness |
25mm |
7 |
Drive mode |
Gear |
8 |
Material of rollers |
45# steel, surface hard chromium plating. |
9 |
Material of shafts |
45# steel |
10 |
Diameter of shafts |
Φ90mm Solid shafts |
11 |
Number of rollers |
16 rollers |
14 |
Main power |
11kw(Simon motor ) |
15 |
Text screen displayer |
Japan made |
17 |
Forming speed |
speed 8-22m/min |
18 |
PLC Control system |
Japan Panasonic PLC |
19 |
Hydraulic power |
5.5KW |
20 |
Gear box |
China famous brand |
21 |
Chain |
1.25 |
22 |
Delivery time |
30 working days after receiving the deposit |
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician
4. Training time: one week (contains the time of installation and adjustment)
