C Z stud roll forming machine
-----------------------------------------------------------------------------------------------------------------
Specification:
1) Can produce Metal stud. drywall track, rail, light keel, Ceiling Tray
2) High speed work, perfect finish
3) European quality, work smoothly.
Description:
Zhongtuo C Z stud roll forming machine could be used to produce various ceiling channel, metal stud for ceiling or wall building and participation. This machine could be used to make C channel, U stud, furring hat channel, L channel, wall angle stud and others.

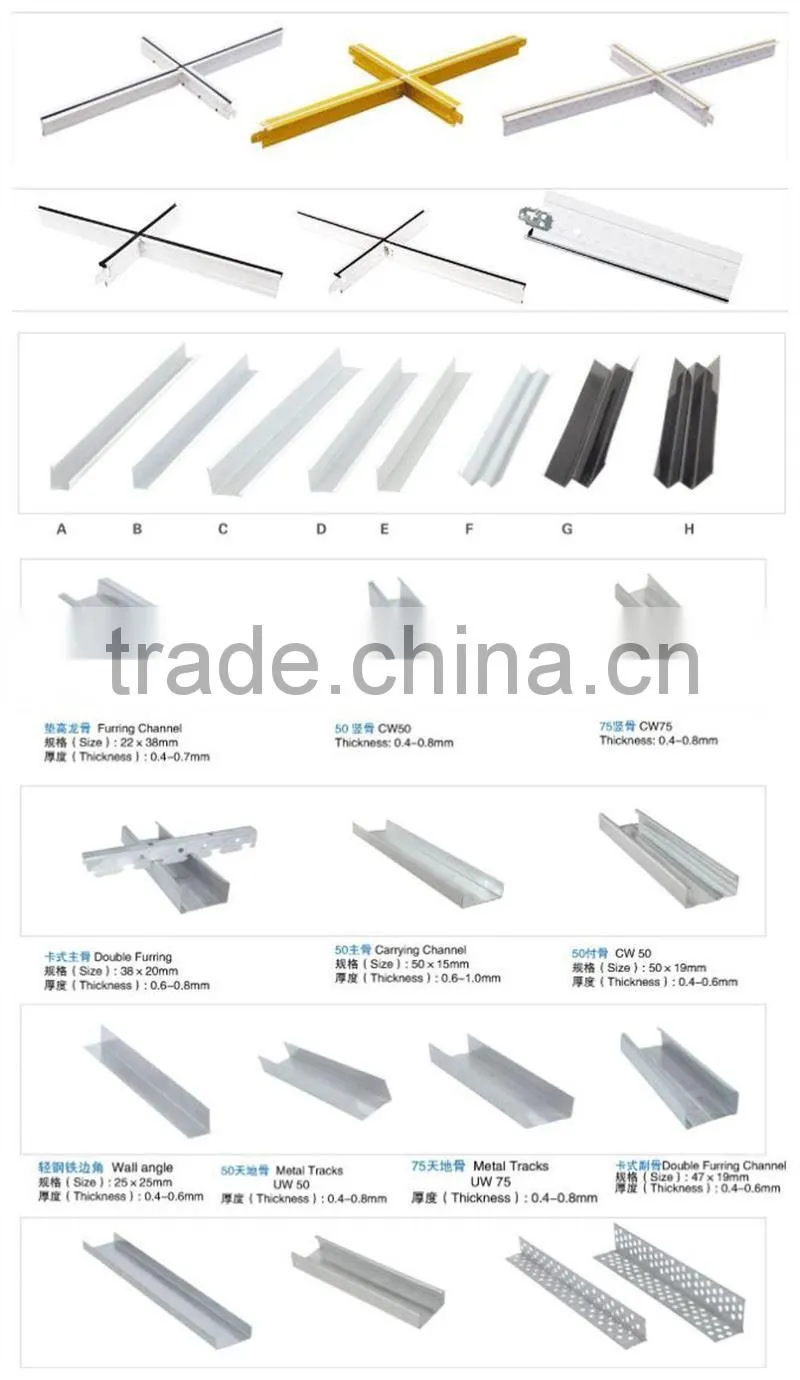

Here are some samples for your reference:
Main parameter of drywall metal stud machine :
Material hardness |
550mpa-350mpa |
Loading capacity |
1.5T |
Uncoiling width |
300mm |
Inner diameter |
450-550mm |
Processing material |
GI |
Material thickness |
0.4-0.8mm |
Frame thickness |
25mm |
Drive mode |
gear |
Forming speed |
20m/min |
Formed width |
46.5mm |
Material of shafts |
45#steel with tempering of keel roll forming machine |
Diameter of shafts |
φ40mm |
NO. of rollers |
10 rollers |
Note: those parameters are only for reference, acutally most of them will be different according to product difference.

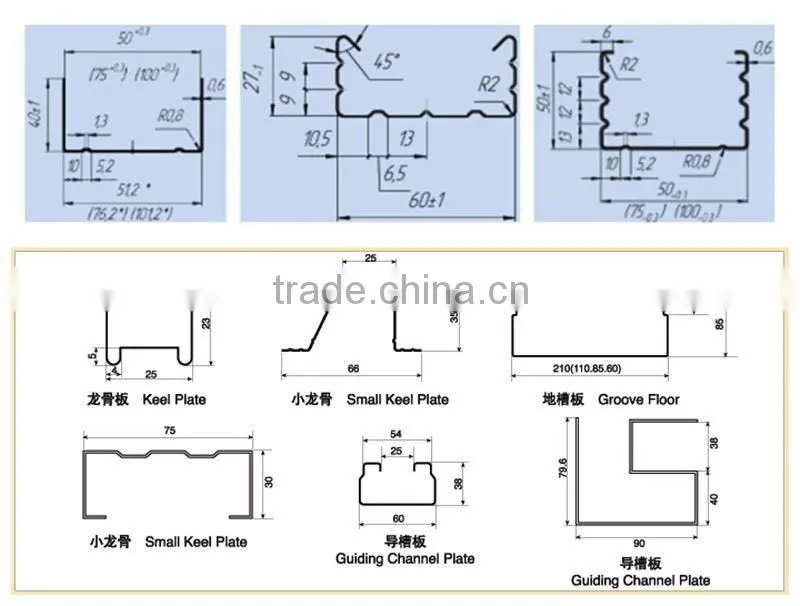

Some of metal stud drawing profile for your reference:
When you need to get the accurate quotation, please show me the stud drawing profile and tell me the material you use then we will give you the quotation to you at once.

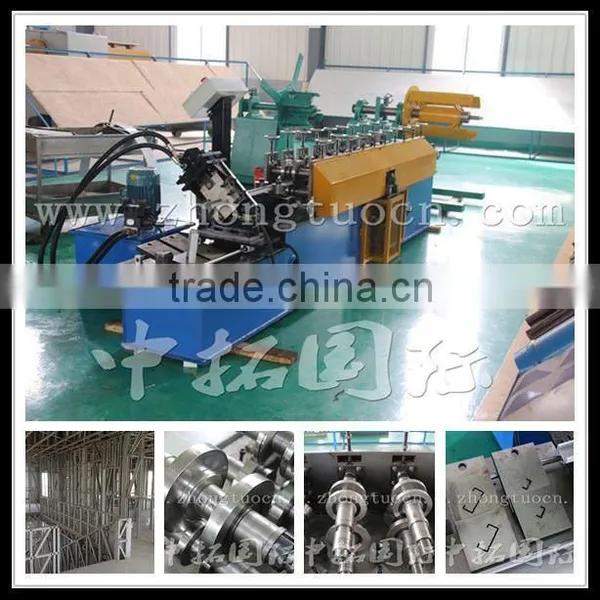

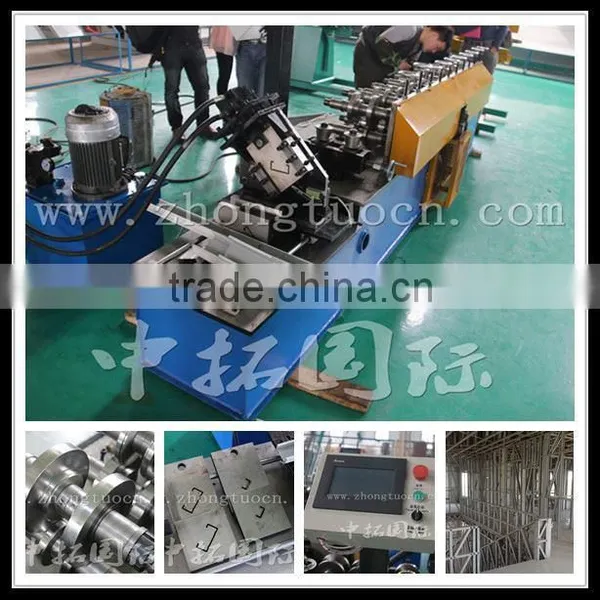

Here are some metal stud machine equipment for your refernce.

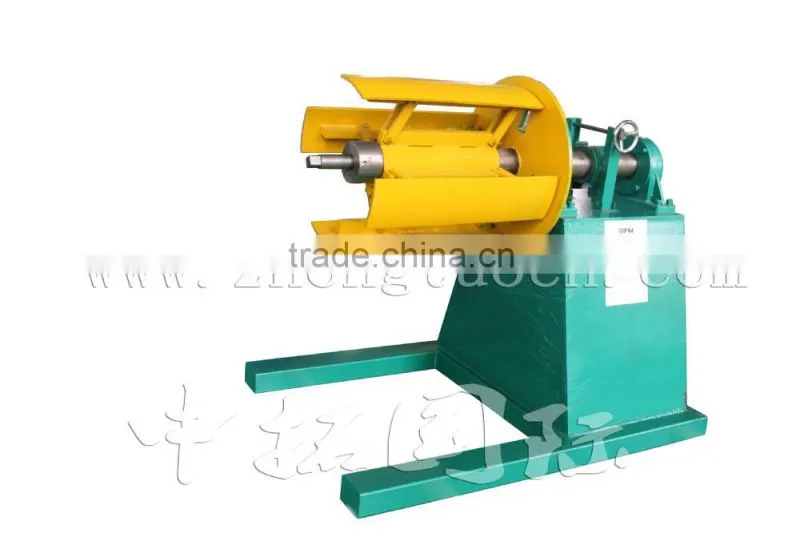

Decoiler:

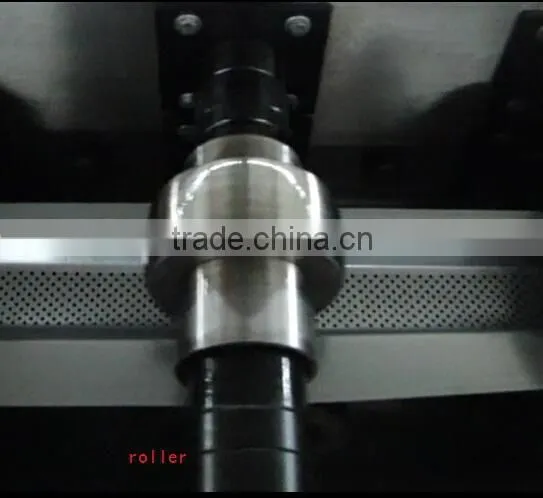

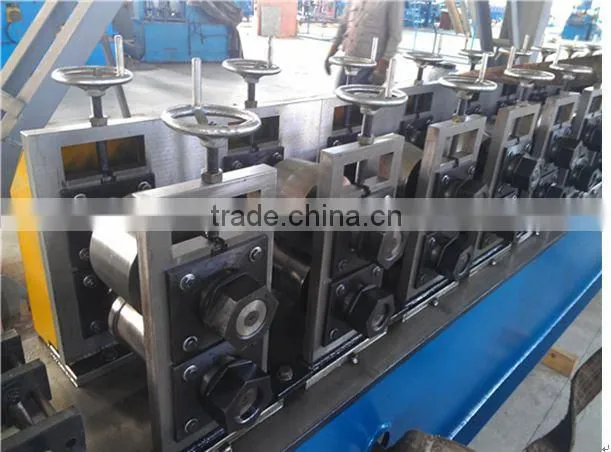

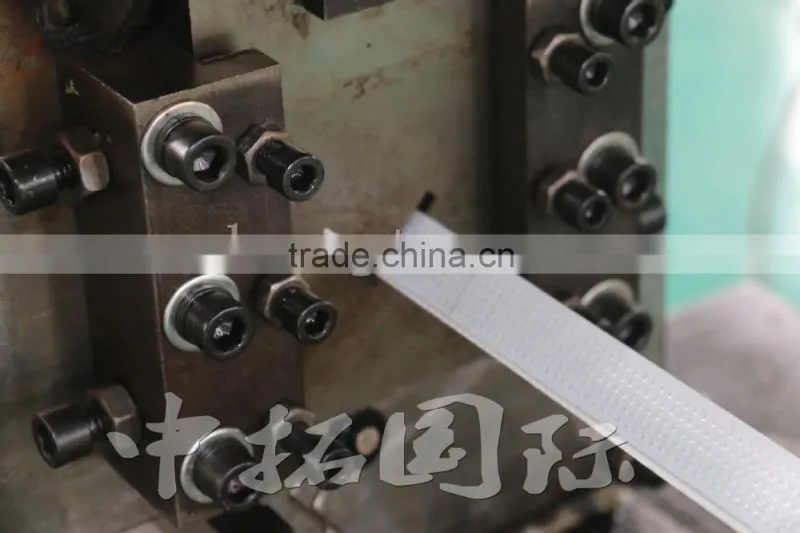

Main part of forming machine:

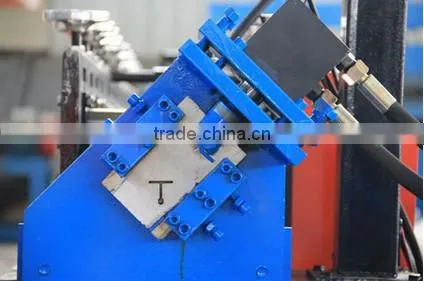

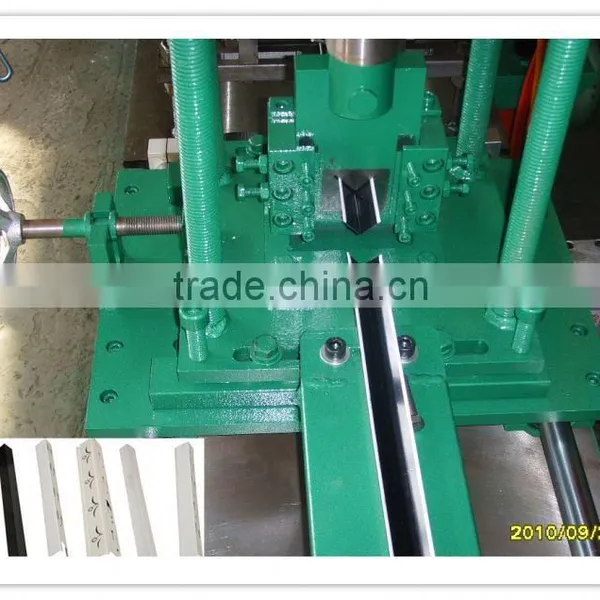

Shearing station:

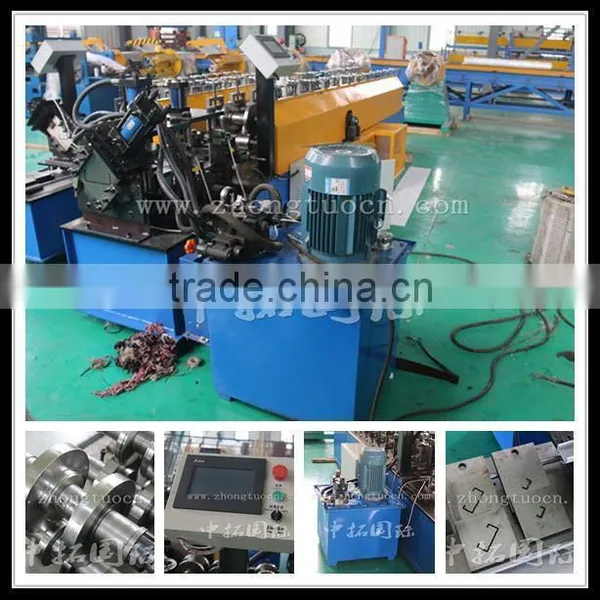

Hydraulic station:

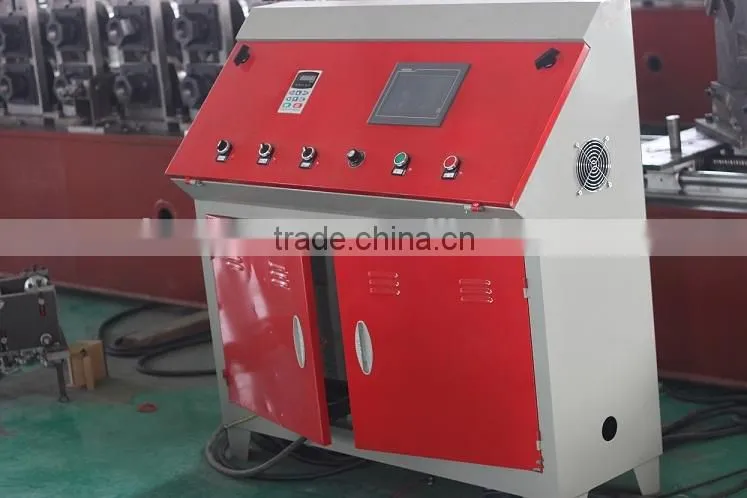

Electronic control system:
Payment terms
1). Price: USD FOB XINGANG PORT TINAJIN CHINA
2). 30% T/T in advance and balance 70% before shipment.
3). Within 45 working days after the deposit, machine will be finished.
4). We will invite client to check and test the machine here after machine is finished.
5). Validity of the quotation is 30 days.
Warranty
1). One year, and we will provide the technical support for the whole life.
2). Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary
3). Need one technicians
4). Training time: one week (contains the time of installation and adjustment
ZT ( Zhongtuo International Trade Co., Ltd.) is a company specialising in the field of cold roll forming machines and metal sheet processing. We are developing various cold roll forming machines for roof tiles making, ceiling metal frame and welding pipe machine, which are used in the following areas like construction industry, automotive industry, packing industry. ZT factory was built in 1966 and its machins have been sold more than 50 countries, so please trust us. With us, create your own cold roll forming world.
1.You are trade company or factory?
-We are trade company but we also have own factories. Building trade company is just for exporting
various types of cold roll forming machines.
2. Why your price is higher than others?
--As we persist on that each factory should put quality at the first place. We spend time and money on developing
how to make machines much more automatic, accurate and high quality. We can make sure that our machine could
use more than 20 years without any problem.
We can provide 2 years free quality assurance.
3. How long the machine could be made?
--Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines
in a hurry, we can make it for you less than a month.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
5. Does one machine can only produce one style panel profile?
---Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
6. What can you do if the machine broken?
--Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the
broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor
to solve the problems,and we supply the technical support for the whole life of the equipment.
Where those metal studs are used for?
...
