Factory produced High reflectivity polished Aluminum mirror sheet for reflector
1.Specification
polished aluminum mirror sheet
| Product | Aluminum sheet |
| Alloy | 1060/1070 |
| Temper | h16/H18/H24/O |
| Width | 30-1300mm |
| Thickness | 0.07-1.5mm |
| Length | less than 8000mm |
| MOQ | according to different size,normal 5 tons |
| Payment Terms | T/T;L/C and others |
Surface
Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use.
Production standard
Chemical Composite: GB/T 3190-2008, JIS, EN, ASTM
Mechanical Property: GB/T 3880-2006, JIS, EN, ASTM
Technical parameters
| Process |
the hot rolling |
||||
| The thickness tolerance | ±0.28mm | ||||
| The width tolerance | ± 2-4mm | ||||
| The length tolerance |
12mm | ||||
|
Elongation
|
Tensilestrenth ( Rm MPa)
|
The strength of extension ( Rm MPa)
|
|||
| O | 1060 |
1070 | 1060 |
1070 | 1060 |
| 0.2-0.3mm | ≥ 15% |
≥ 15% |
60-100 |
55-95 |
≥15 |
| 0.3-0.5mm | ≥18% |
≥ 20% |
60-100 | 55-95 | ≥15 |
| H14/24 | |||||
| 0.2-0.3mm | ≥1% | ≥ 2% | 95-135 | 70-110 | ≥70 |
| 0.3-0.5mm | ≥2% | ≥ 3% | 95-135 | 70-110 | ≥70 |
| H18 | |||||
| 0.2-0.3mm | ≥1% | ≥ 1% | 125 | 120 | ≥85 |
| 0.3-0.5mm | ≥2% | ≥ 2% | 125 | 120 | ≥85 |
The technical parameters is according to the GB/T 3880.3-2006,We can make it more if you have special requirement.
Usage
Mirror aluminum sheet with good light reflectivity, widely used in lighting lamps and lanterns, outdoor billboards, household appliances, electric heater reflex plate, signs, bags, cross, etc.
2, Mirror aluminum sheet we provide:
We provide the polished mirror and cladding mirror aluminum sheet, thickness between 0.25 ~ 0.8mm thick, within 1.25meter wide. Reflective rate: 80~92%
For the mirror finished aluminum sheet, there're two kinds of technique available:
1) cladding mirror: high reflective rate upto 92%, suitable for lighting, etc.
2) polish mirror: reflective rate upto 92%, can be used for exterior construction.
Packaging

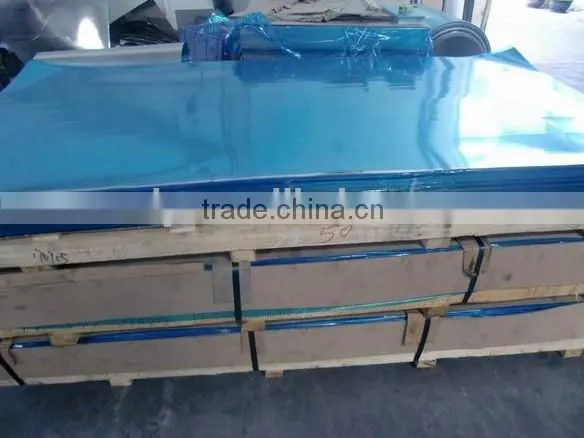

Strong seaworthy packing, wooden case or pallet. One wooden pallets is about 2.0Tons to 3.0Tons/pallets. Two steel belts in Length and three steel belts in width. One 20GP container can load about 20Tons of aluminium sheets, which is about 10 pieces of pallets. One 40GP container can load about 24Tons of aluminum sheets, which is about 13 pieces of pallets.
Henan Zhongxin Aluminum Co.,Ltd is a professional Aluminum manufacture which has 30 years experiences for manufacturing aluminum sheet, coil, and foil in China.
Our main products include: various alloy of aluminum plate, strip, foil, color-coated aluminum coil, aluminum sheet circle, ginning aluminum plate, aluminum and copper strip/foil for dry type transformer.The products are widely used in areas including electric power, transportation, construction decoration, aerospace, packaging materials, electronic appliances, etc.
If you want to see more products of our company, you can surf our website: or zxly.en.china.cn
Whenever you need more info, please don't hesitate to contact me:Ms. Lyn Tian, Email: zxaluminum06 at with telling the thickness*width*length, alloy no.&temper, coil or sheet pack, etc. I'll reply your email within 2 days.
