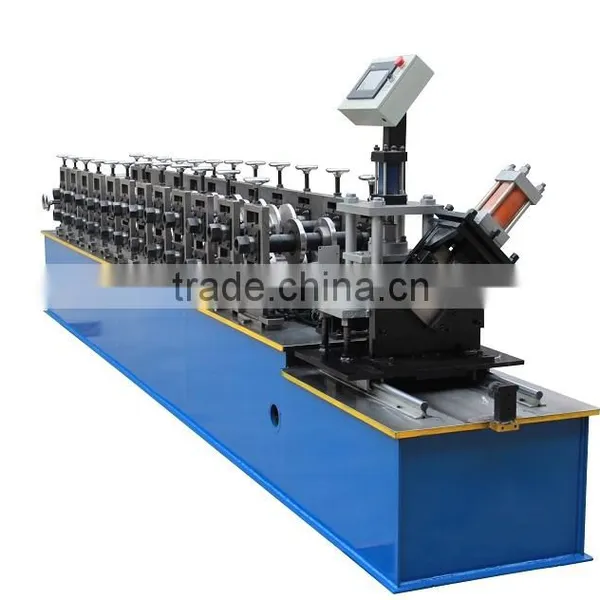

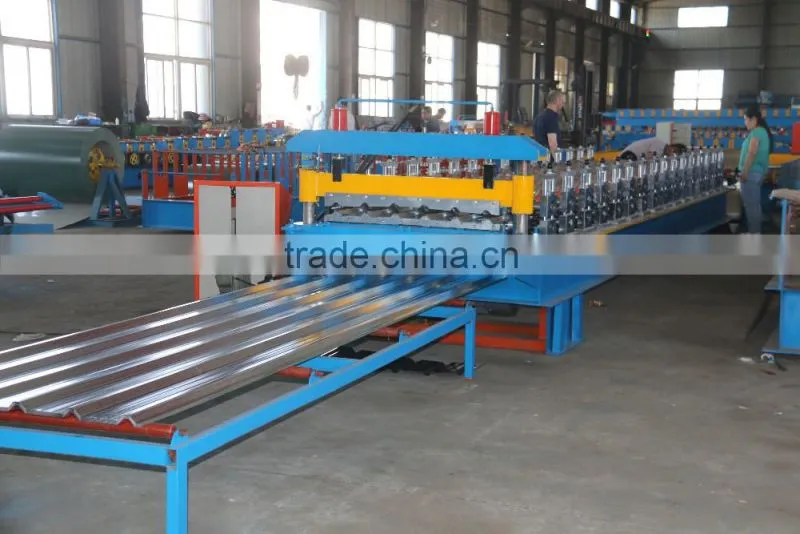

C Purlin Forming Machine,C Channel Truss Roll Forming machine,C channel tile making machine
Specifications
Tower structure for main body.
CNC rolling the rollers.
Poilishing the rollers surface shinning.
PLC control with automatic
Zhongtuo C Channel Truss Roll Forming machine offer builders a competitive alternative to traditional wood trusses.This machine provides significant improvements over other light gauge steel trusses currently available. Flexibility and design advantages allow architects, engineers, contractors and owners' exceptional versatility and performance characteristics not available with any other type of truss material.Our machine could update with the fashio for providing new design increases material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. Nomatter for running business or for big construction, this machine will be good helper for you.
Our machine supports material thickness from 0.4-4mm light gauge steel truss with the full engineering technicaldata/specification. Designed and pre-engineered by experienced truss specialists using only the very latest software. Normally our machine could make truss for Indian, Australia, Egypet and other countries. The shapes of the trusss are like furring hat shape, U shape, C shape, L shape and others.
Basic information of C Channel Truss Roll Forming machine | ||
Description |
Introduction |
Customer needs |
Working efficiency |
0-25m/min |
Adjustable |
Thickness of Material |
0.6mm |
Adjustable |
Width of material |
130mm |
Adjustable |
Control system |
PLC |
Delta |
Uncoiler system |
1.5Ton |
|
Forming by rolling |
Roll 12 rows |
|
Roller material |
GCr12MoV (SKD11) Aluminium processing after quenchin HRC58-62 °C, Chrome |
|
| ||
Shaft diameter of axle |
45#Aluminium-processing , diameter of axle=40mm |
|
|
|
|
Main part power |
5.5kw |
|
Hydraulic motor power |
3kw |
|
Hydraulic pressure |
12Mpa |
|
Scissor material |
Cr12Mov, herd steel HRC 58-62°C |
|
length tolerance |
±1.5mm |
|
voltage |
380V, 50HZ,3 phase |
adjustable |
Frame form |
Grant type frame |
|
Driving Method |
Gear box |
|
Color |
Customize |
|
Size |
length*Width*Height 5.2*1.25*1.5m |
|
| ||
weight |
3.5T |
|
Package |
Nude package in 1*20GP container |
|
Delivery date |
30 working days |
|
|
Un-coiler System
|
Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system Loading capacity: 1.5T Uncoiling width: 300mm Inner diameter: 450-550mm |
|
Entry Beach
|
Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron. |
|

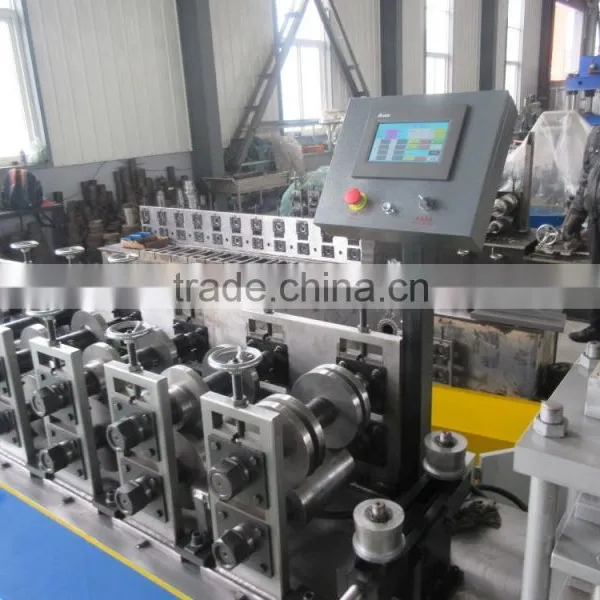

Main Roll Forming System
|
Feature: Ensure stability, precision and lifetime. |
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission (the first and the last roller, the down roller should be attached with the upper one with the gear drive.), roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. | |
|
Length of the main part: about 3000*800*1400 Weight of main part: 3 tons Voltage : 380V/50HZ3Phase (as customer’s request) | |
|
Roller fixer : Guide column Frame : middle plate welded Memorial arch frame type Frame thickness:25mm Drive mode: gear | |
|
Material of rollers: GCr12MoV Material of shafts: 45# steel with tempering Diameter of shafts: 40mm Number of rollers : 10 rollers Main power: 3kw Cycloidal planetary gear speed reducer)
| |
|

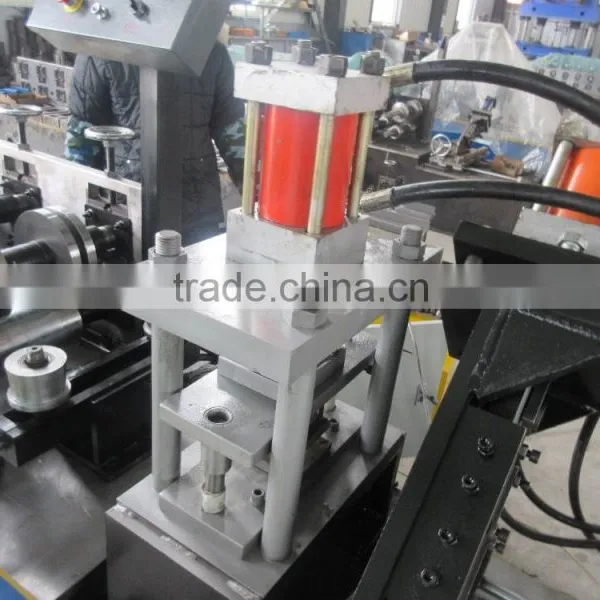

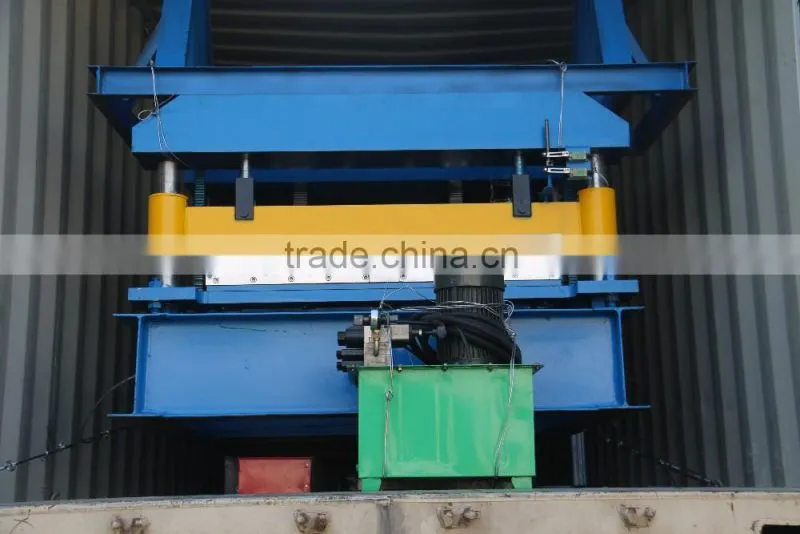

Shearing Mechanism
|
Feature : Ensure stability, precision and cutting speed Function : Automatic cutting controlled by PLC |
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. | |
|
Material of blades: Gcr12MoV quenched Power supply : hydraulic power Frame : Pillar style with rack & pinion system Stroke switch : non-contact photoelectric switch | |
|
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
| |
|
Hydraulic Station
|
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. |
Hydraulic motor Power: 3kw | |
|
Hydraulic oil: 46# Volume: L | |
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. | |
|
Electric Control System
|
Feature: 1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime. 2.Other electric element are Delta 3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
|
|
Counter
|
One counter gauges length, pulses, and decides length. Omron encoder for length measurement. |
|
Products receiving tables
|
It adopts welded steel and supported roller to transmit the products. |
|
Accessories
|
1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. Rubber mat 1 pcs; 3.Bolt spanner 1 pcs |

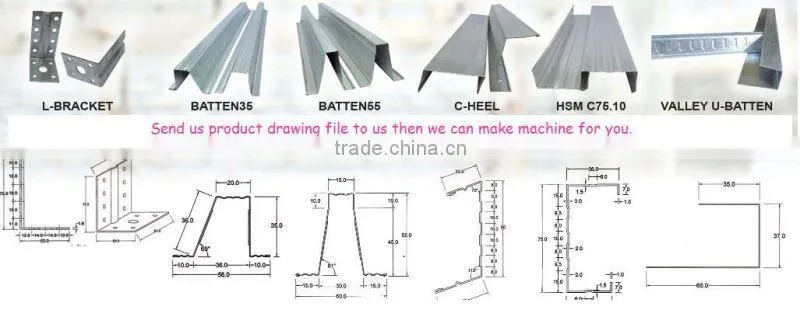

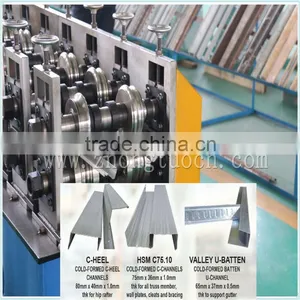

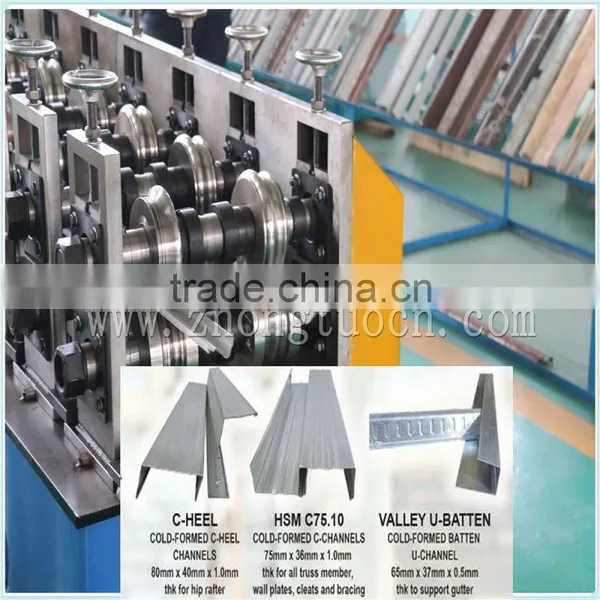

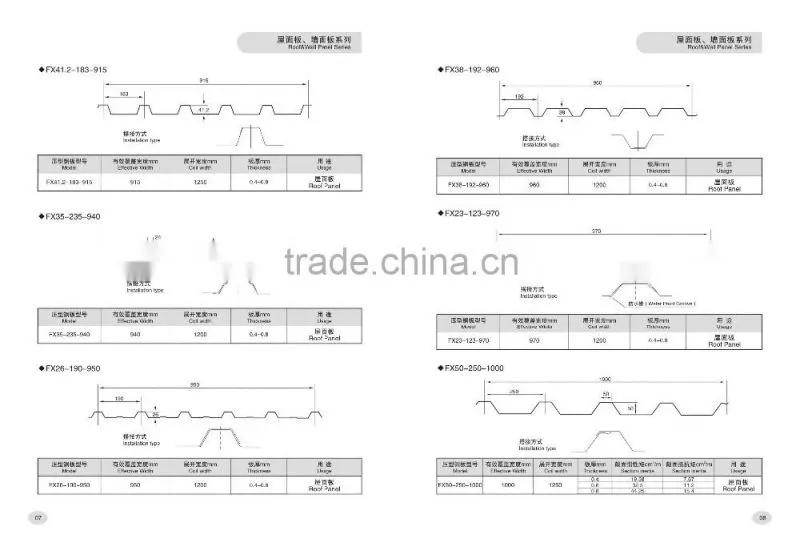

Samples of Trusss our Machine could make:
Othe machine we have:

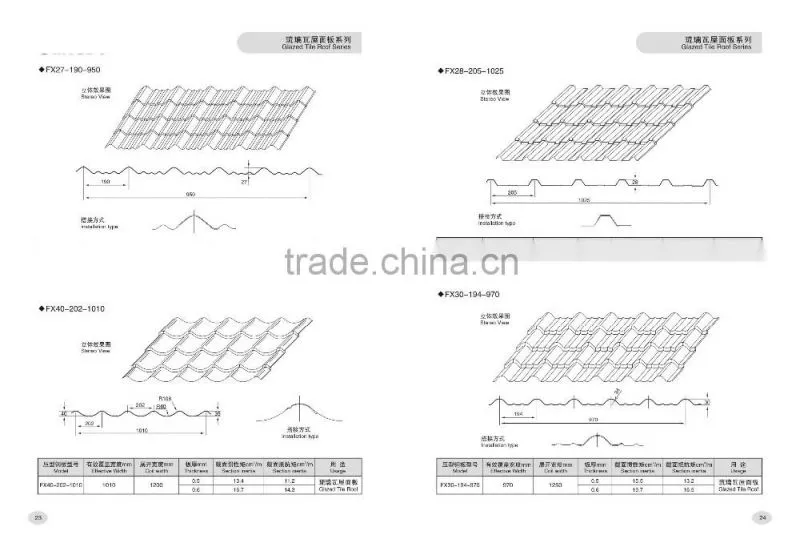

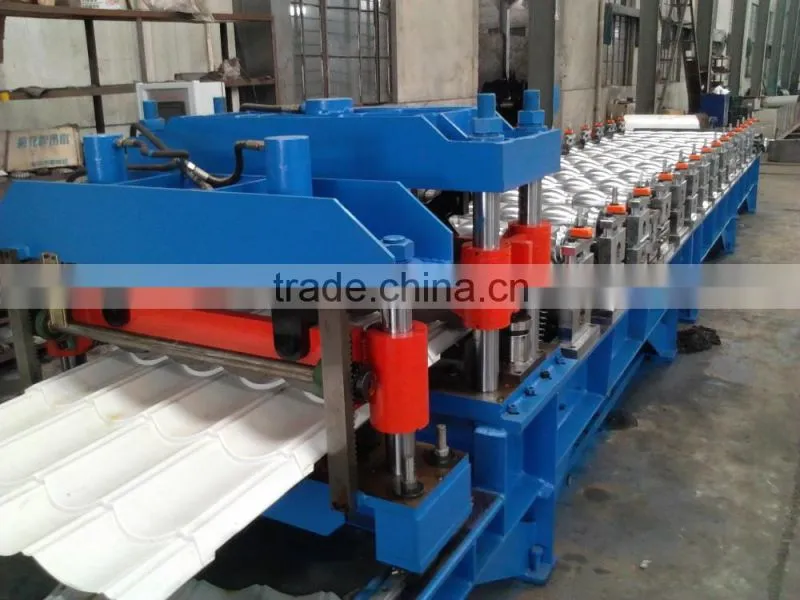

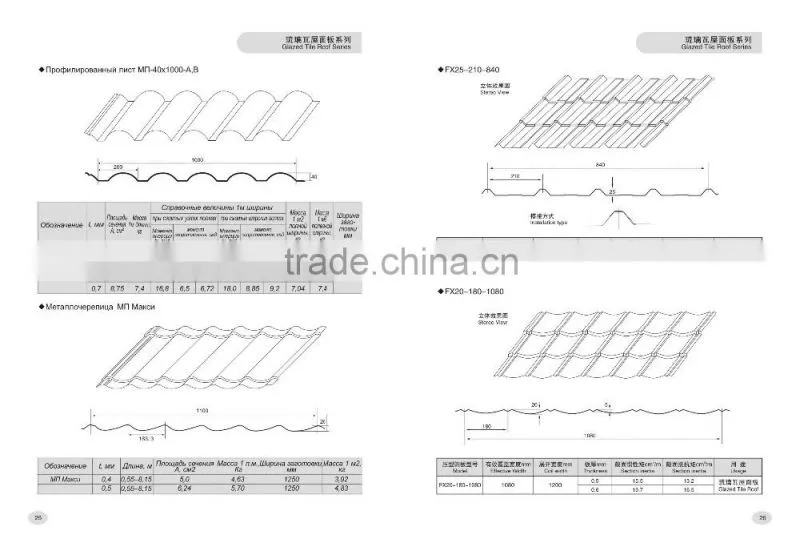

1. Roof tile machine:
735 glazed tile roll forming machine
828 glazed tile roll forming machine
840 glazed tile roll forming machine
850 glazed tile roll forming machine
900 glazed tile roll forming machine
925 glazed tile roll forming machine
940 glazed tile roll forming machine
950 glazed tile roll forming machine
960 glazed tile roll forming machine
1100 glazed tile roll forming machine
Payment Method: 30%T/T in advance and balance 70% after inspection confirmation.
Warranty 1. One year, and we will provide the Technical support for the whole life. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment)
Cangzhou ZHONGTUO cold roll forming machinery Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.
