Home > Products > CNC Router > China Good Character 3 Axis WW2030W CNC ROUTER MACHINE

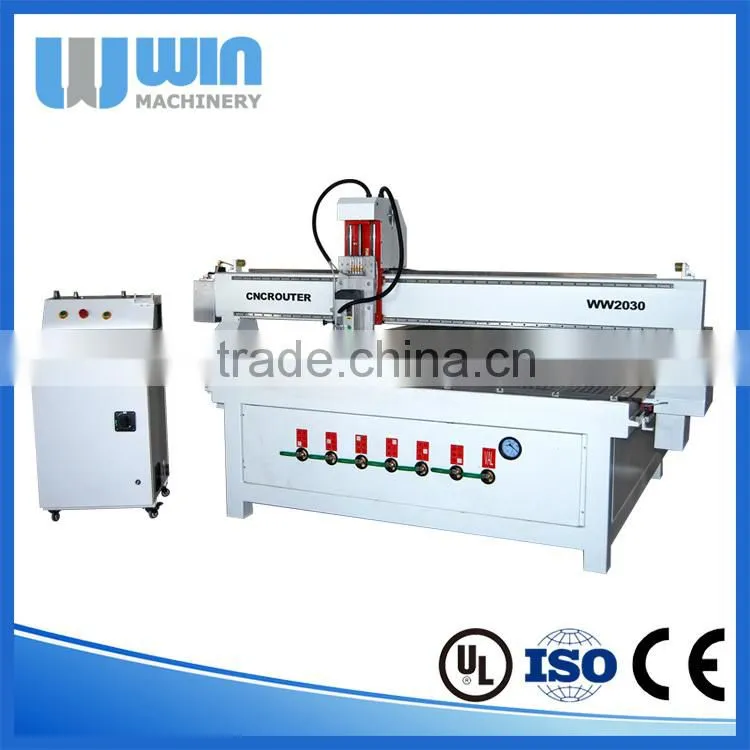

China Good Character 3 Axis WW2030W CNC ROUTER MACHINE
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
-
engraving cnc router,1325 woodworking cnc router 1300*2500*200
-
engraving and milling machine,1325 woodworking cnc router 1300*2500*200
-
engraver router,1325 woodworking cnc router 1300*2500*200
-
dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
-
cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
-
cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
| Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
| Brand Name: | WinWin | Model Number: | WW2030W | Voltage: | AC380V, 50/60Hz |
| Power(W): | 3.2KW | Dimension(L*W*H): | 3900X2200X2100mm(Packing Size) | Weight: | 1580kg |
| Certification: | CE, UL, ISO | Warranty: | 1Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China Good Character 3 Axis WW2030W CNC ROUTER MACHINE
Basic Accessories
| | |
| Carousel Auto Change Tool | Engraving Aluminum | |
| | |
| CNC Router with Rotary | Cutting Foam Board | 4 Axis for Side Drilling |
1. Overview
Entry-level three axis made from fully stress-relived structured steel for cutting and carving flat board. The Routers features • Precision ball scree drives • Rack and pinion transmission • Multi-zone vacuum plenum • World renown HIWIN bearings • Windows® based easy-to-learn and use G-Code Interface (multiple languages).
2. Advantages
1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3) Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
3. Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 2000x3000x200mm |
| 2 | Table Size | 2150×3440mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3.0/4.5/6/7KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Stepper System |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3900X2200X2100mm |
| 26 | N.W. | 1350KG |
| 27 | G.W. | 1580KG |
| 28 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust Collector/ Dust Hoods for three Axis | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| 850W Yaskawa/800W Panasonic Servo Motors |
6. Details
7.Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
10. Factory
11. CE Certificate
12. Contact US
