China Good Character WW1325-R Rotary Engraving Machine
Basic Accessories
| | |
| Carousel Auto Change Tool | Engraving Aluminum | |
| | |
| CNC Router with Rotary | Cutting Foam Board | 4 Axis for Side Drilling |

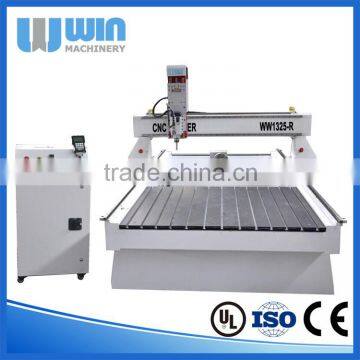

1. Machine Introduction

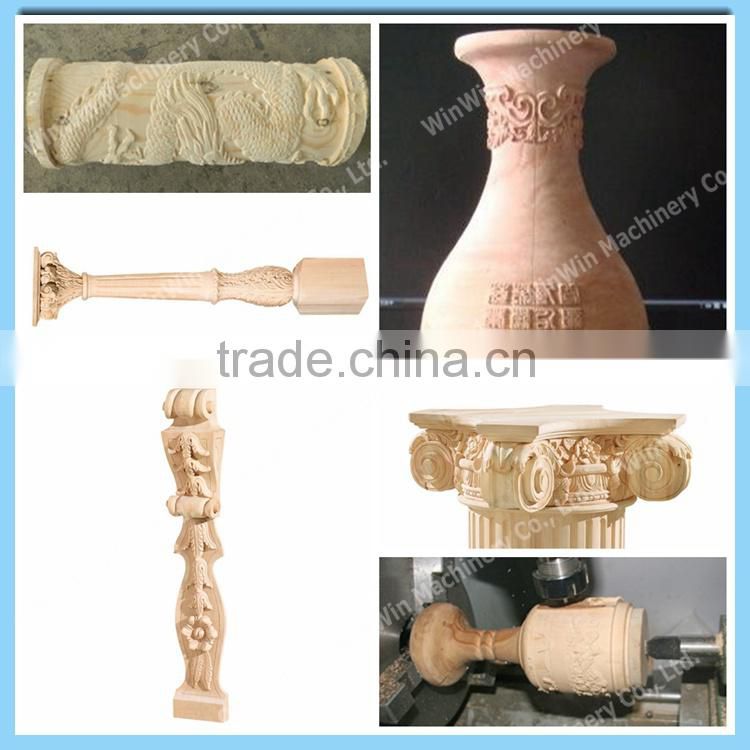

This Rotary Engraving Machine is especially designed for engraving Rotary Grande with the panel length 2500mm T-slot table, and 400 mm diameter rotary extra. The machine works with 400mm Z (height) of job size, and rotary diameter can be 400 mm, 2500 mm long cylinder.
We use stepper motor 3.0kW HSD spindle, Delta inverter and dust collector machine that is qualified for a job and the size of the timber, and large mass production.
With hard steel structure, the Wood CNC Router is suitable for the job of hardwood, such as cutting and engraving rosewood for furniture, interior decoration, and qualified for the mass production of furniture in the shape retention vacuum and dust collector.
2. Advantages
1) The CNC Router’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the CNC Router’s high precision.
3). Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the CNC Router’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the CNC Router’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

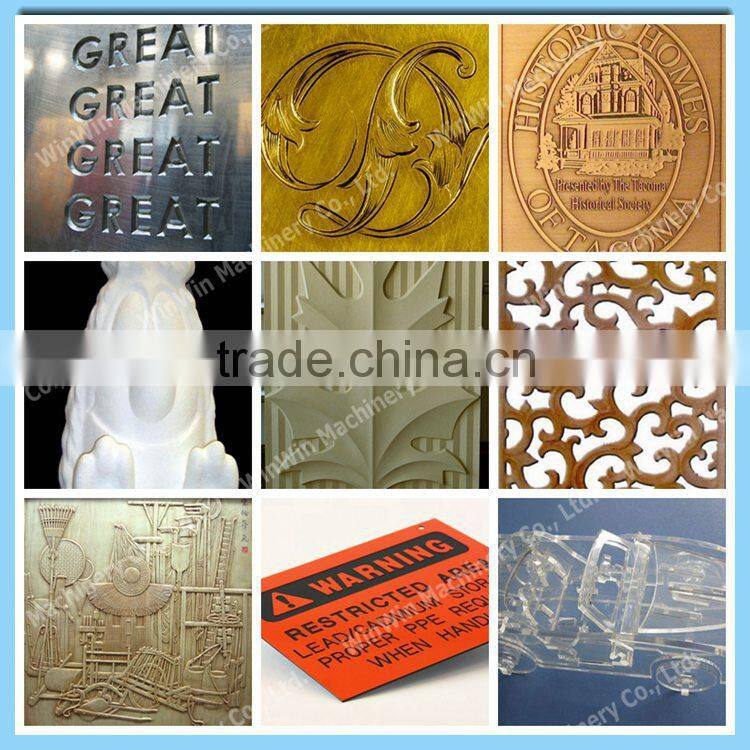

3. Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x400mm&400*2500mm |
| 2 | Table Size | 1360×2540mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | T-slot (Option: Vacuum and T-slot Combined ) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3.0/4.5/6/7KW |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Stepper System |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3350X2200X2150mm Remove gantry |
| 26 | N.W. | 1300KG |
| 27 | G.W. | 1450KG |
| 28 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust Collector/ Dust Hoods for three Axis | ||
| Vacuum Pump | ||
| 3D Scanner | ||
| Mist-cooling System | ||
| 850W Yaskawa/800W Panasonic Servo Motors |

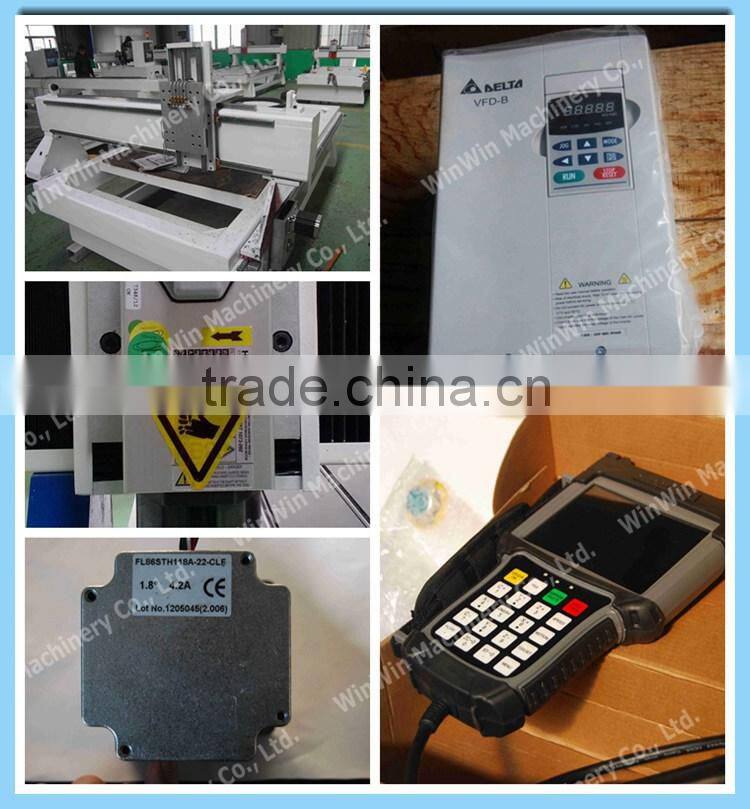

6. Details

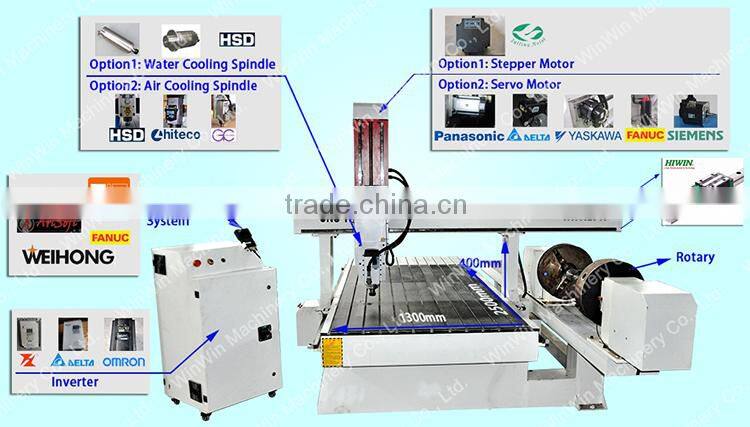

7.Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The CNC Router is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
10. Factory
11. Contact US
1.How about the delivery time?
Normal 3axis CNC Router -within 2weeks.
ATC CNC Router -within 4weeks.
4axis CNC Router -within 50days.
5axis CNC Router -within 6months.
2.What kind of payments do you support?
T/T.L/C ,other kinds please contact with us.
3.What’s the MOQ?
For whole machine, MOQ=1.
4.Can you produce according to customer’s design?
Sure ,we are professional manufacturer ,OEM are also welcome.
5.Can you tell me your main customers?
That’s our customer’s privacy ,we should protect their information.
At the same time, please rest assured that your information is also safe here.
6.Consult
We will recommend the most suitable machine to you after being informed by your requirements, such as the main jobs you wanna the machine to process, the materials you will wanna to process, the working area you want, the max cutting thickness, etc.
