Unistrut 41x21 Slotted Hot Dip Galvanised Channel Roll Forming Machine

      Unistrut 41x21 Slotted Hot Dip Galvanised Channel Roll Forming Machine  is designed to make galvanised steel channels in batch fully automatically.

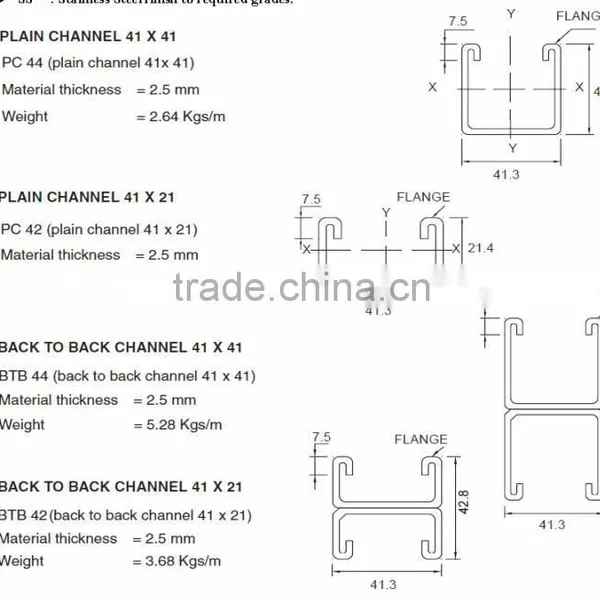

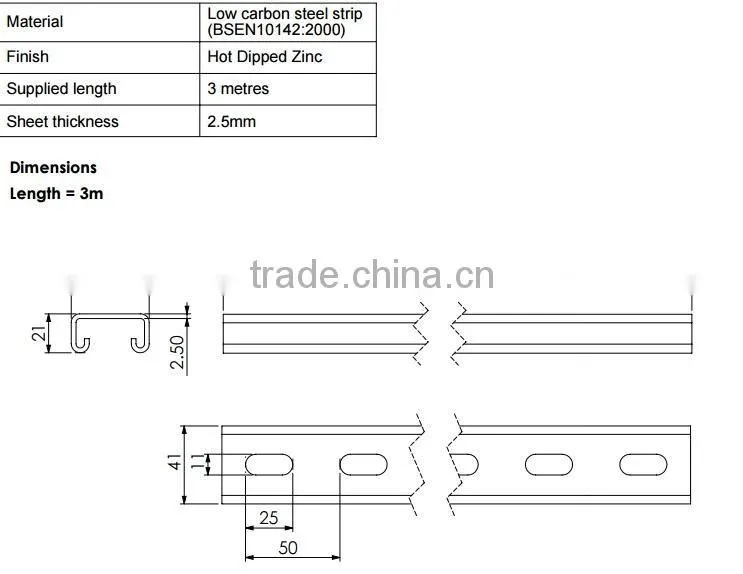

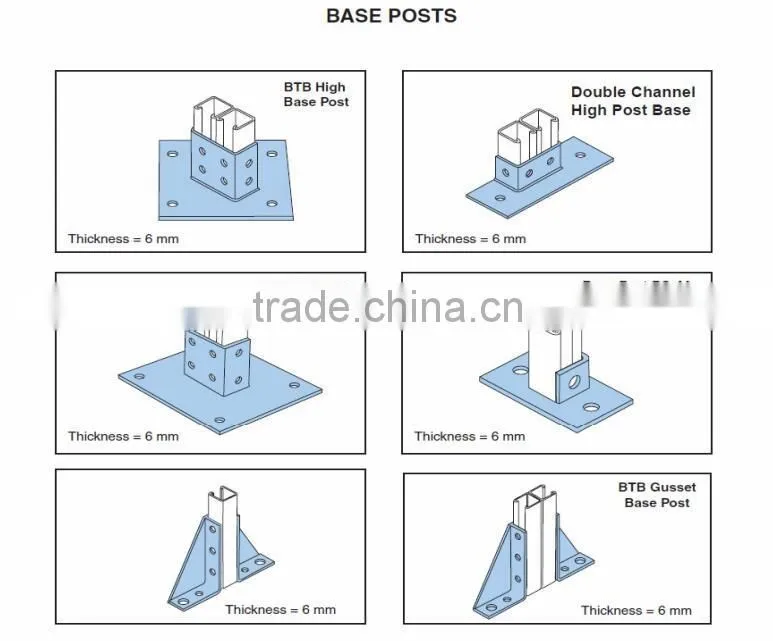

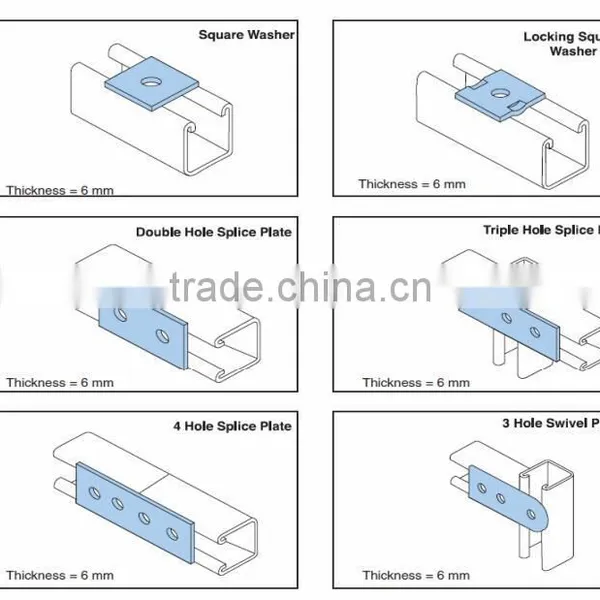

 Here are two drawing profile and finished products for your reference:

Finished products:

41 x 21mm Single Steel Slotted Channel Making Roll Froming Machine:

Decoiler:
1.Loading capacity: 3T
2.Uncoiling width: 300mm
3.Inner diameter: 450-550mm

Leveling system
The coil from Decoiler is a little bit curves, so the leveling system is to help make the coil straight, neat and clear. We will take 5 rollers, two upper and three down.
Leveling roller diameter: 60mm
Leveling roller material: 45# steel after58 to 60 degree quenching
Frame: Middle plate
Frame thickness: 20mm

Punching machine:
Material of roller: Gcr12MoV quenched
Power of perforating machine:3kw
The size of the holes: 28x10mm oval, diatance 22mm
The thickness of material:2.5mm
The feeding material width:140-165mm
The width of holes:75-155mm
Pressing power: 32 Ton
Function
Punching for holes and zigzag

Coiler feeder;
To feed the punched coil to machine

Main Roll Forming Machine:
1) Number of rolling stations: 16 rolling stations
2) Shaft diameter: 70mm

3) Shaft material: 45# steel after quenching.
4) Roller material: 45# steel after quenching.
5) Transmission method: by China
6) Chainwidth: 1.25mm

7) Machine working speed: 5-10m/min
8) Working speed: 5-10m/min
9) Motor Brand: Chinese famous brand MengNiu
10) Voltage: 380v, 50Hz,3 phases
11) Machine size: 9.5*1.5*1.2m
12) Machine frame: Middle plate
13) Machine frame thickness: 20mm

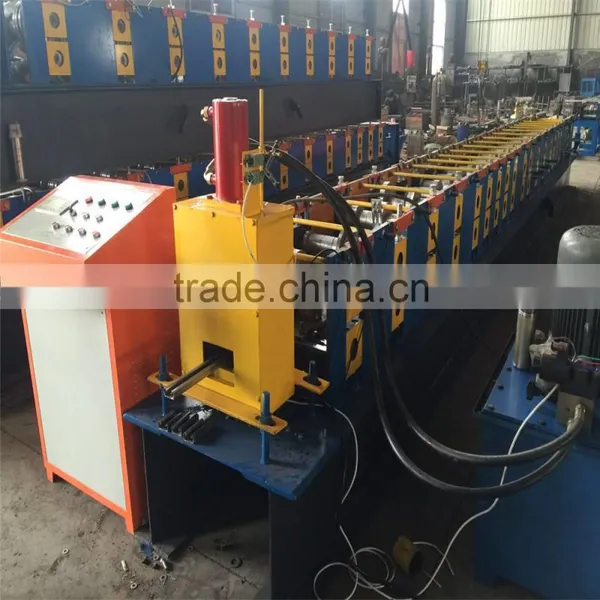

Here are the pictures for your reference:

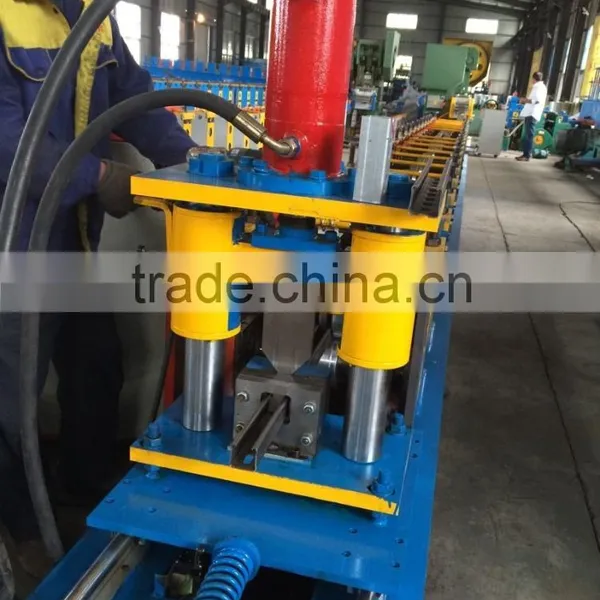

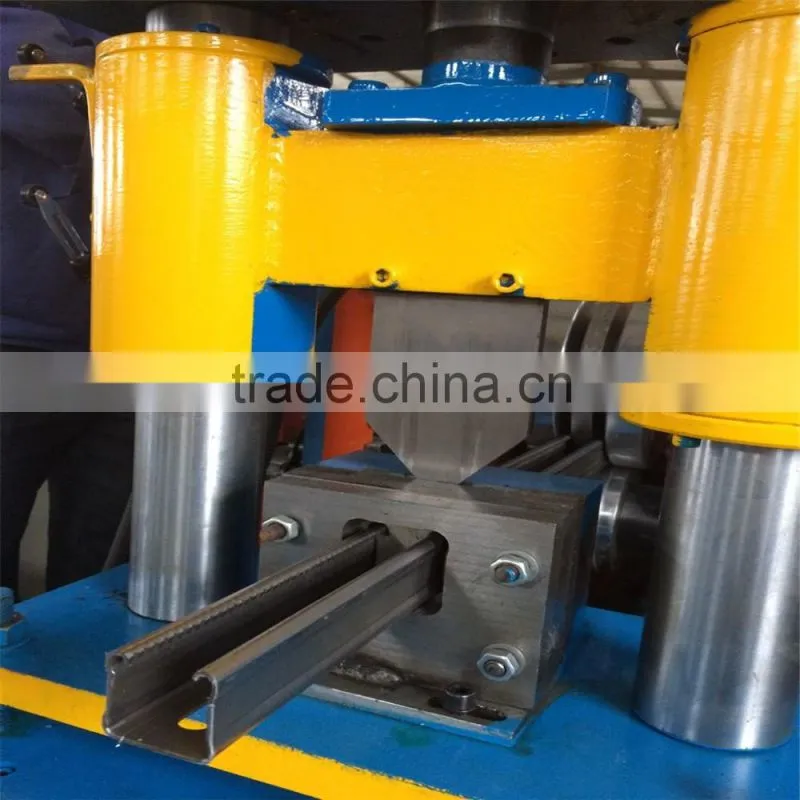

4. Shearing system:
1).Material: blade and mold material: Cr12 steel with quenched treated 60-62℃
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

4. Control system
1). Screen: Delta screen from Taiwan
2). PLC: Delta DVP14ES from Taiwan
3). Coder: ENC-1-1-1T-24 from South Korea

5. Hydraulic system

1). Advanced hydraulic system from Taiwan
2). Power: 4kw

6. Spare Parts
1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2).Rubber mat 1 pcs;
3).Bolt spanner 1 pcs

The machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.
