guardrail machine highway guardrail machine guardrail roll
forming machine highway guardrail roll forming machine
the sample

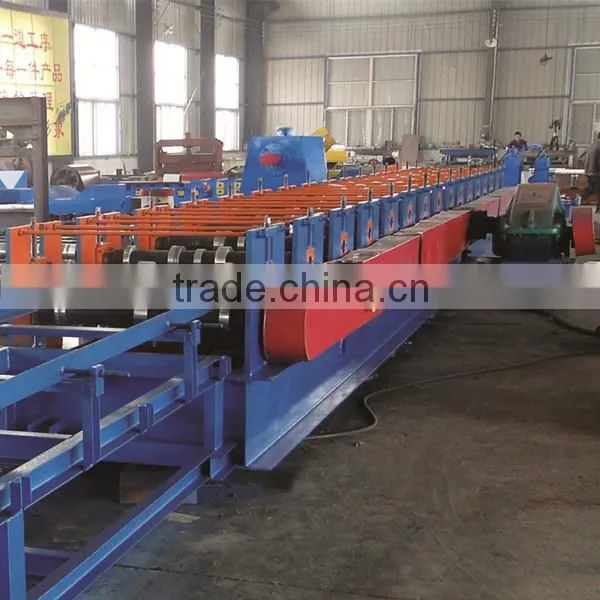

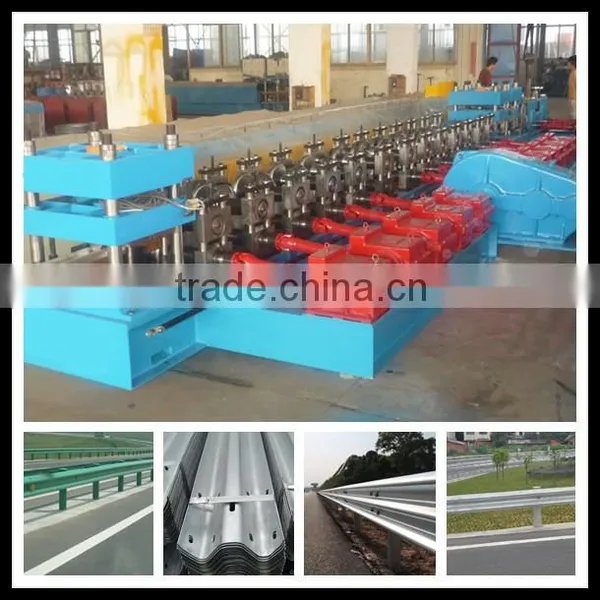

Basic information of guardrail machine :
Zhongtuo guardrail machine is set up leveling, feeding / punching,
forming, cutting and many other technologies in one of the production equipment

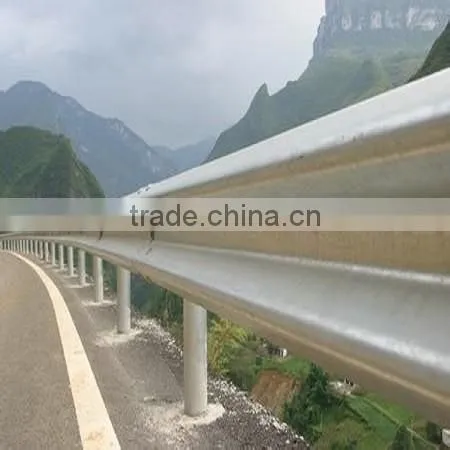

Products used in a variety of guardrail, highway guardrail, fence and other livestock farms.
Highway guardrail products smooth surface, bright colors, widely applicable
Zhongtuo guardrail machine feature:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2. guardrail machine of pressure plate,stately elegance,beautiful novel,appearance smooth,
corrugated uniform, high utilization, high strength, high degree of automation, low cost and
durable.
Main specifications of guardrail machine
Length of the main part |
about 8*1*1.5m |
Frame |
400# H steel |
Weight of main part |
12tons |

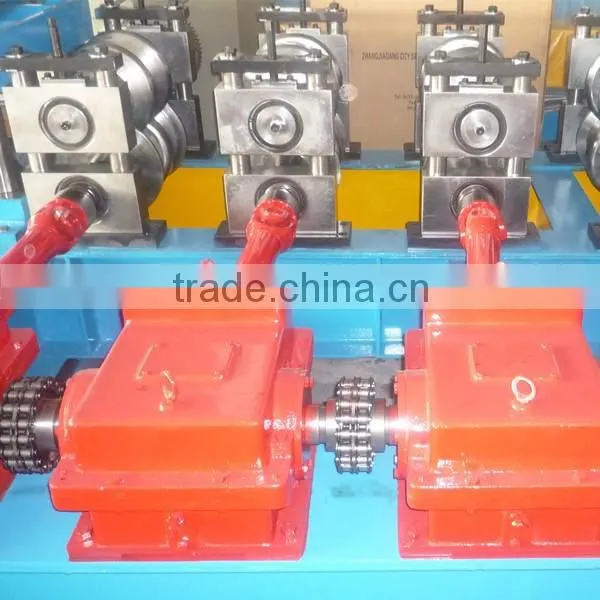

Drive mode |
gear |
Material of rollers |
GCr12MoV |
Material of shafts |
45# steel with tempering |
Diameter of shafts |
φ80mm |

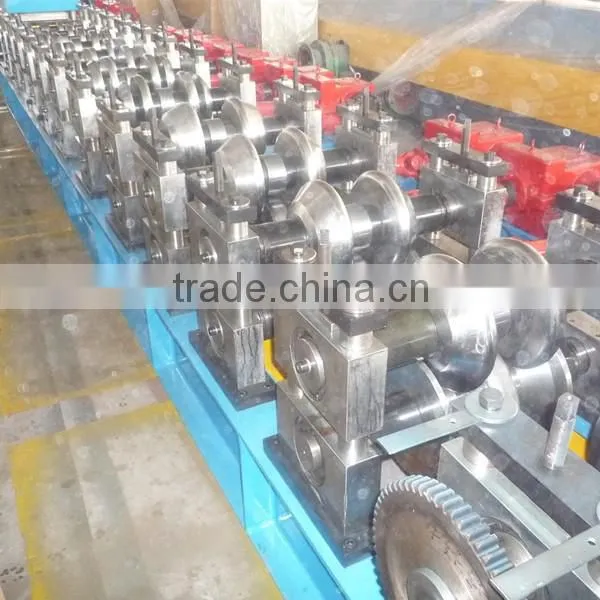

Number of rollers |
20 rollers |
Main power |
22kw |
Forming speed |
8-13m/mins |
Hydraulic oil |
46# |
Hydraulic Power |
5.5KW |

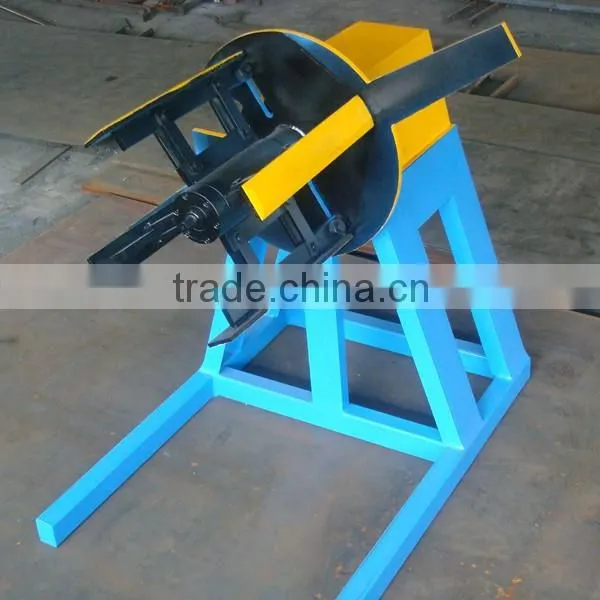

Uncoiler:
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Uncoiling width |
1250mm |
Inner diameter |
450-550mm |
Capacity |
5T |
Entry Beach:
Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee
that the products are neat, parallel and everything is uniformity. Please refer to the equipment
regulation to know the function of locate angle iron.
Punching system:
Hydraulic punching, using the material of CR12, contribute with weld.
PLC control system would be used in this station.
Cradle:
Power:3kw
Length:6M
Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Gcr12 quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
Hydraulic system:
Hydraulic oil |
46# |
Power |
5.5KW |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes.
and two sets of electromagnetism valves
Electric Control System
Feature:
Adopted PLC , transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
Other electric element are Delta
Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation
convenience and safety.
Counter
One counter gauges length, pulses, and decides length.
Omron encoder for length measurement.
Products receiving tables
It adopts welded steel and supported roller to transmit the products.

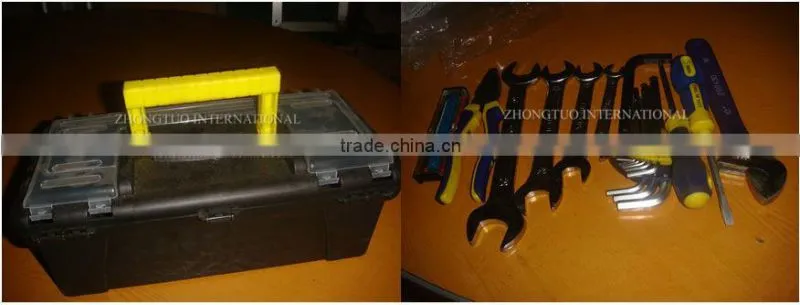

Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
1. Installation and training of machine manufacturer:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale
a.One year guarantee for whole roll forming machine for sale.
b.24 hours technical support by email or calling
c.If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
Packaging Detail
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatlyappreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
