high quality steel highway machine for sale
highway guardrail roll forming machine Process flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving
Parameters of highway guardrail roll forming machine :
1 |
Model No. |
Two waves highway roll forming machine |
2 |
Max coil thickness |
3.5mm |
3 |
Coli material |
Steel or other |
4 |
The bearing capacity of manual decoiler |
5 tons |
5 |
shaft material |
45#steel |
6 |
Out diameter |
100mm |
7 |
numbers of forming steps |
20 stations |
8 |
transmission |
Differential gear transmission |
9 |
Forming speed |
10-15m/min |
9 |
main motor power |
45kw |
10 |
voltage |
380V50HZ Three-phase or you need |
11 |
dimension |
20.5*1.2*1.5m |
12 |
cutting |
Hydraulic cutting |
13 |
Cutting power |
13.5kw |
14 |
blade material |
Cr12 steel with quenched treated 60-62°c |
15 |
control system |
PLC(Delta) |
16 |
length tolerance |
±2mm |
17 |
spare parts |
easy emaged parts:conk 2pcs, fuse-link 4pcs rubber mat: 1 pcs bolt spanner: 1 pcs |
18 |
The whole line including: Hydraulic decoiler, roll forming machine, cutting part PLC control system, run-out table. |
|
Components of highway guardrail roll forming machine :
No. |
Name |
Unit |
Qty |
1 |
decoiler |
set |
1 |
2 |
Main forming machine |
set |
1 |
3 |
PLC control system |
set |
1 |
4 |
Hydraulic pump station |
set |
1 |
5 |
Post cut |
set |
1 |
6 |
Electric motor |
set |
1 |
7 |
Output table |
set |
1 |

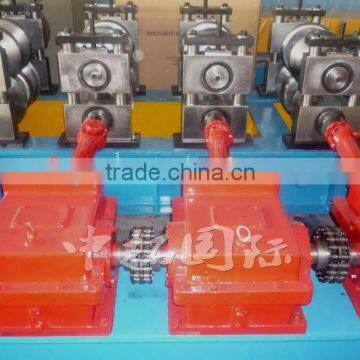

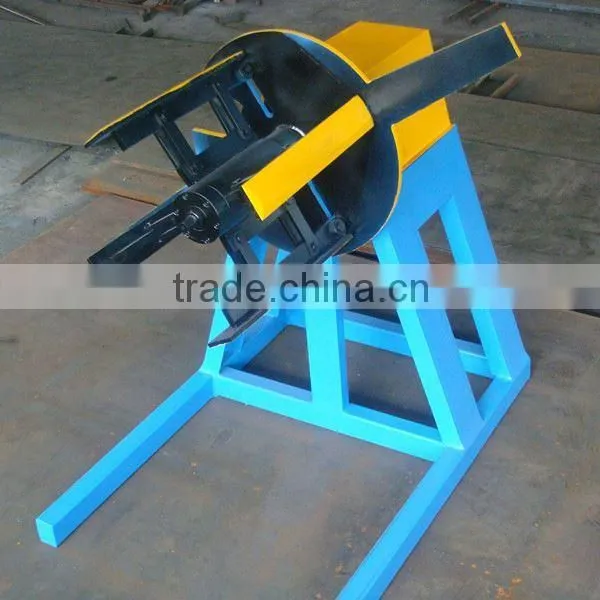

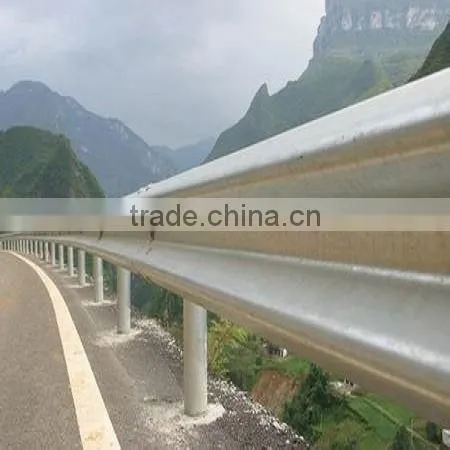

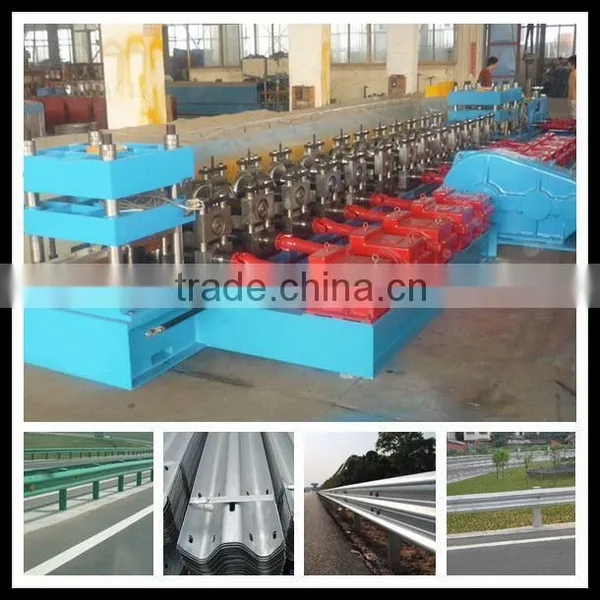

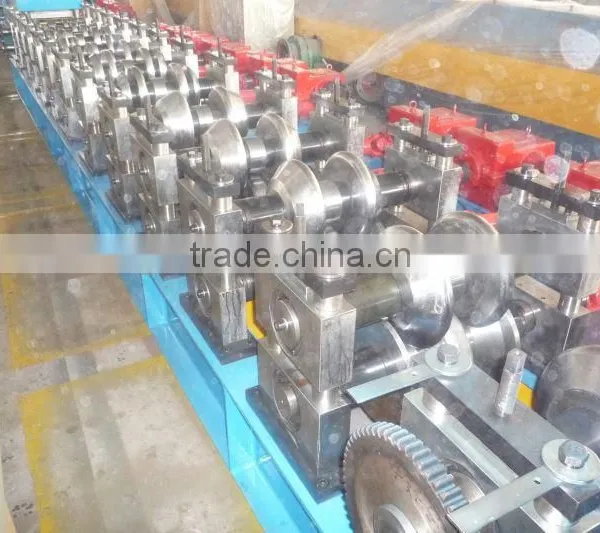

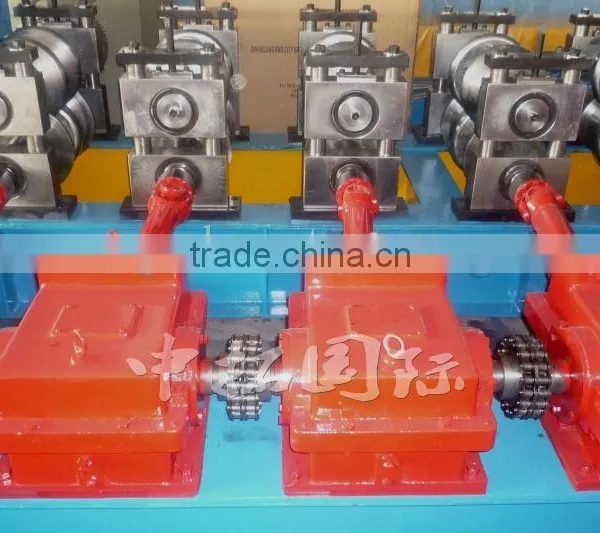

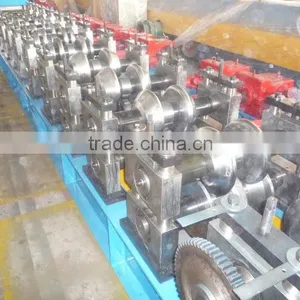

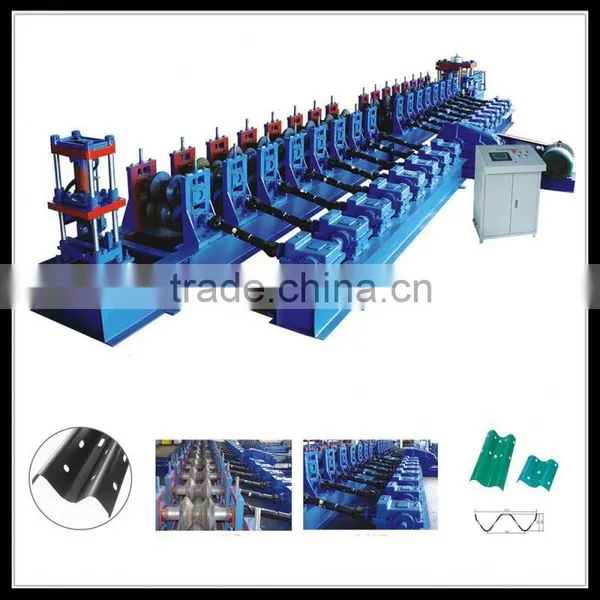

some pictures of machine:
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold rollforming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
4.How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
