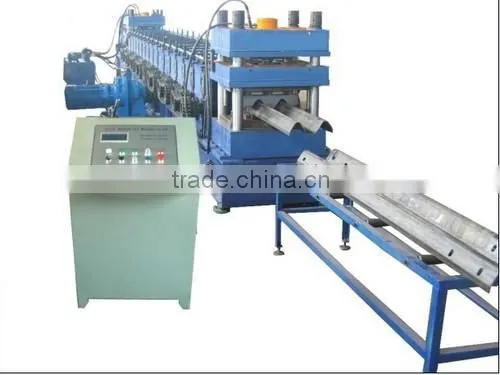

Guardrail installation machine
Guardrail installation machine, also known as crash barrier forming machine, is commonly used for producing crash barrier and W shaped guardrail. In order to improve road safety, the crash barrier is designed to prevent vehicles from leaving the roadway.
Guardrail installation machine is mainly composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.
Working process:
Detailed information of guardrail installation machine :

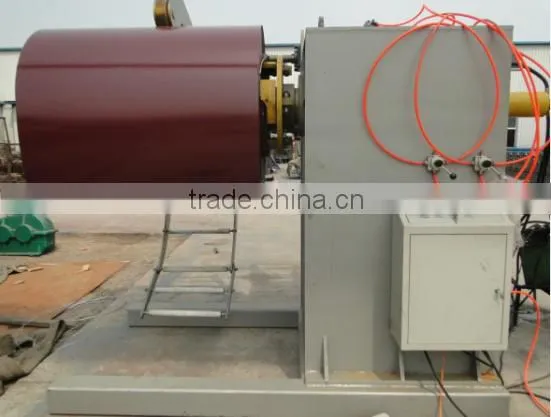

Hydraulic decoiler
Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.
1.ID:500-550mm
2. Coil width:500mm
3. Loading ability:5000kg
4. Hydraulic power:3kw
5.Motor:3kw

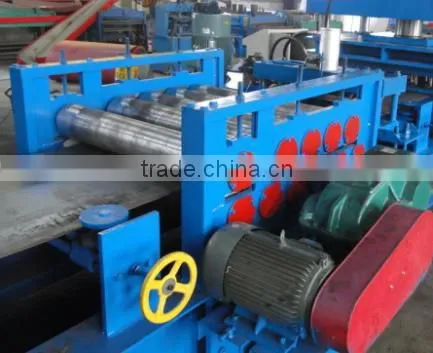

Feeding and leveling part
1. Roller material after quenching
2. 9 rows station for leveling: 4 5
3. The diameter of raw material 95mm ,45 steel after quenching
4. Feed a side wheel GCR15 raw materials, after quenching

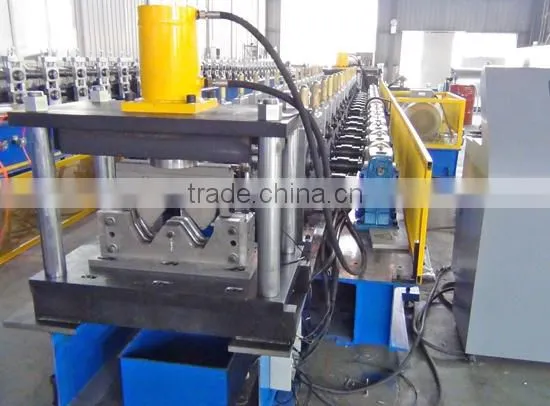

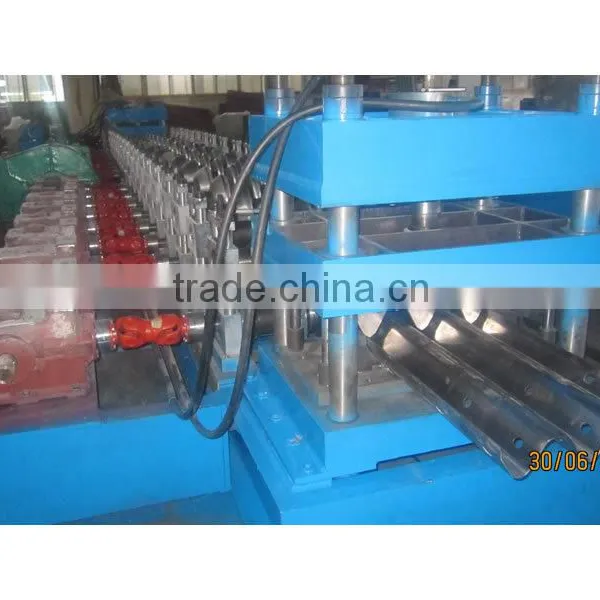

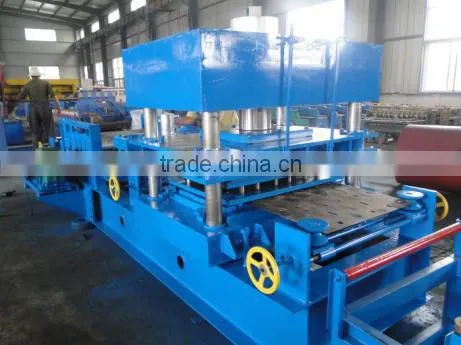

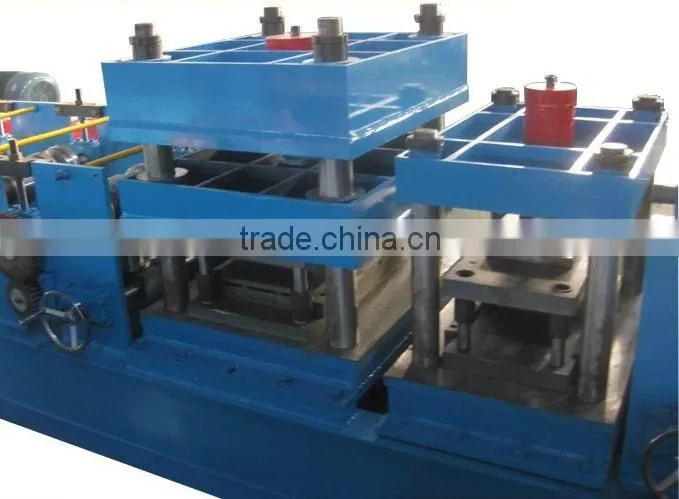

Punching and shearing part
1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt
2.Shearing blade material:Cr12after quenching.
3. Shear error: +/- 2mm

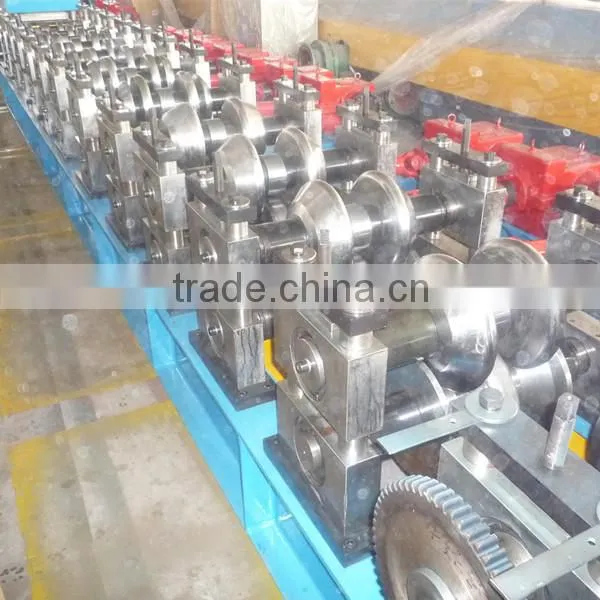

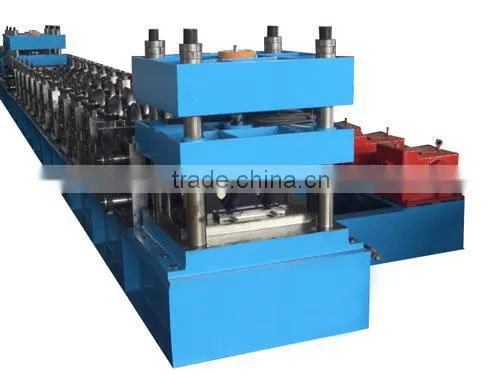

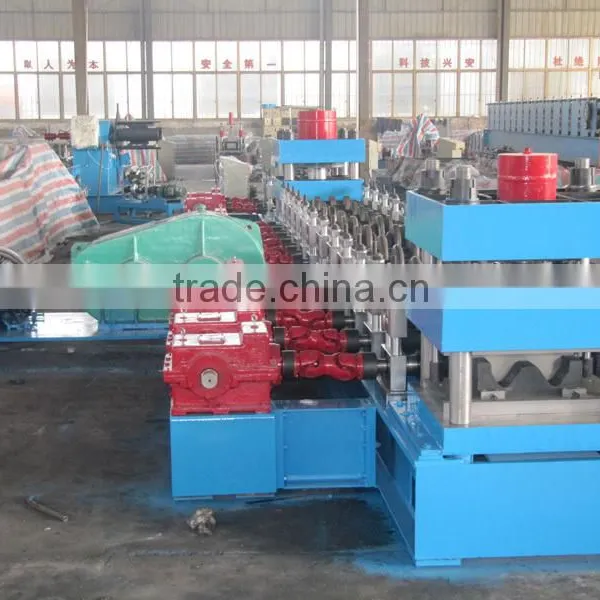

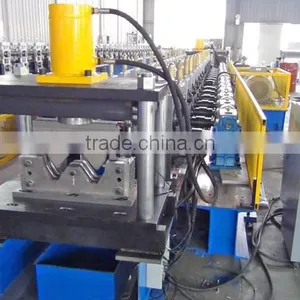

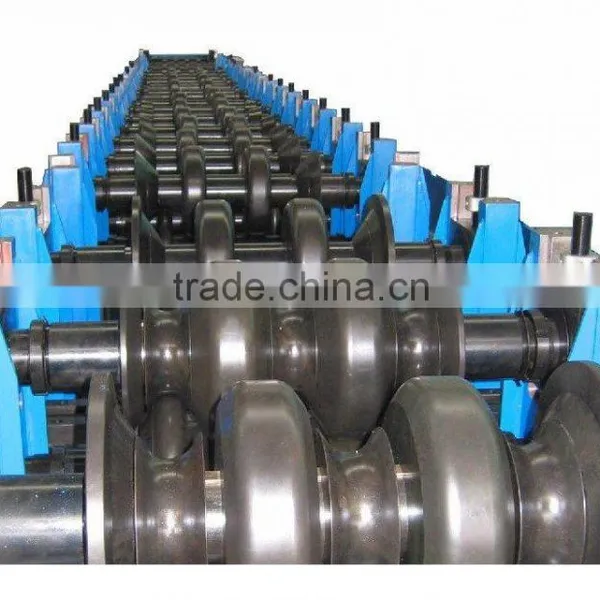

Roll forming machine
Advantage: to make sure long time using, working steady and high speed.
1. Main-length: about 20.5*1.2*1.5m
2. Machine weight: 15.5 Ton
3. Voltage: customer choice
4. Fix wheel types: medium plate
5. Frame: 400# steel
6. Transmission: Chain
7. Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining
8.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt
9. Rolling station:20 stations
10.Main power:45kw
Shearing system
Advantage: to make sure machine working speeds fast, accurate and steady.
Usage: controlled by PLC, driven by hydraulic power to shear accurate and accurately.
Shearing blade material:Cr12 after quenching.
Shear system: automatic hydraulic shear system, advanced, no waste edge, high security.
Shear error: + 2mm
We use PLC and encoder. This type is higher than the photoelectric measurement.
Component: it includes a set of tools, a hydraulic cabinet and a knife machine.

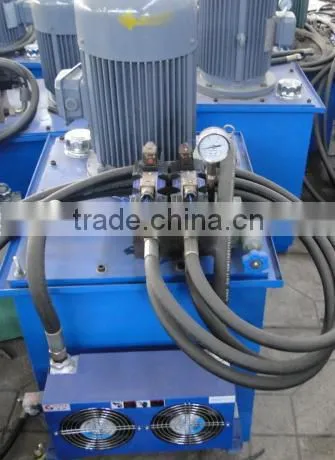

Hydraulic system
1.Power: 18.5kw
2.Hydraulic oil type: 46#
3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.

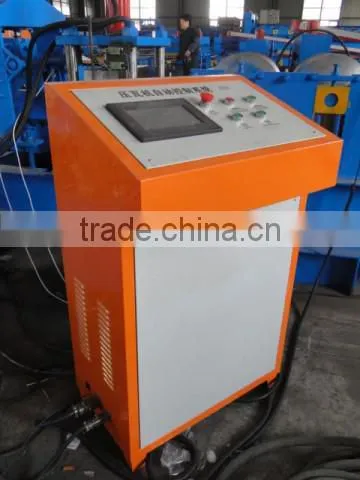

Electrical system
1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.
2.Panasonic PLC, Panasonic inverter
3. automatic fixed length
4. automatic counting
Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold rollforming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
4.How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
