Elevator Guide Rail Manufacturers|high quality Elevator Guide Rail Manufacturers
Specification:
Low energy consuming and low noise.
High working speed.
High accuracy but low price
Zhongtuo Elevator Guide Rail Manufacturers is specialized for making T track or other shapes elevator guide rail by cold roll forming machine principle. We are professional manufacturer of elevator guide rail roll forming machine since 1996 and have successful experiences.
Our roll forming machine for guide rail support thickness 2-3 mm. The whole line of Elevator Guide Rail Manufacturers include the decoiler 3 T to 10 T, roll forming machine include the guide&feeding device and straighten leveling rollers,cutting blade drived by hydraulic power and servo stacker of the cutting system, runout table.
Advantage of Zhongtuo Elevator Guide Rail Manufacturers:
It runs automatically controlled by PLC system. The strong H beam base is treated to avoid the vibration when working. Meanwhile servo tracking cutting aviod add pressure to the whole frame. All the rollers are hardness quenched to guarantee the long life. All the rollers are CNC lathe processed to guarantee the precise. Hydraulic punching and cutting. Case of differential takes place of gear box for high speed working. Servo shearing and cutting for lowing down noise and narrow the space of
factory.
Basic information of Elevator Guide Rail Manufacturers|high quality Elevator Guide Rail Manufacturers:
Roller material |
GCR15 Aluminium processing after quenchin HRC58-62°C，Chrome plated |
Shaft and the diameter of axle |
45#Aluminium-processing ，diameter of axle=￠70mm |
Main part power |
30kw |
Hydraulic pressure |
20Mpa |
Hydraulic power |
11kw |
Hearing plate material |
Cr12Mov， herd steel HRC 58-62°C |
length tolerance |
3m±1.5mm |
voltage |
380V, 50HZ,3 phase |
Frame form |
arch type |
Driving Method |
case of differential |
Size |
15*1.8*1.2(m) |
Delivery date |
60 working days |
Payment Method |
30% T/T in advance and balance 70% after inspection confirmation |
Working proces:
Uncoiling—Feeding—Leveling—Punching—Shaping—Shearing—Production

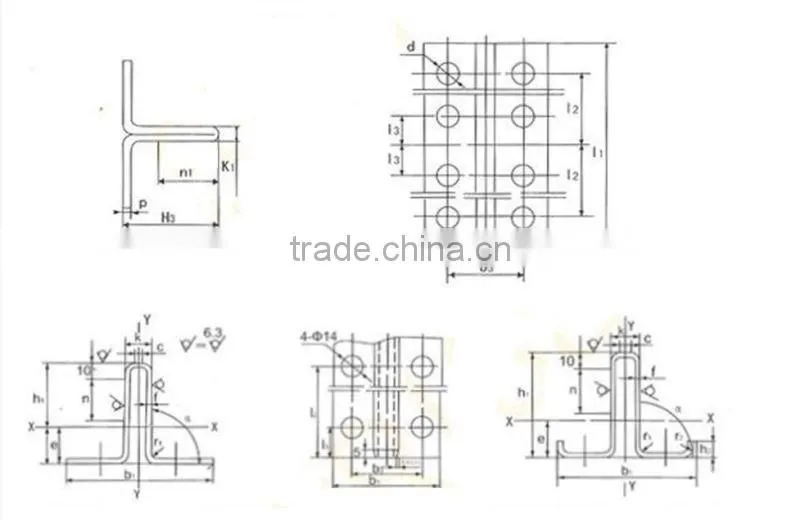

Samples of drawing:

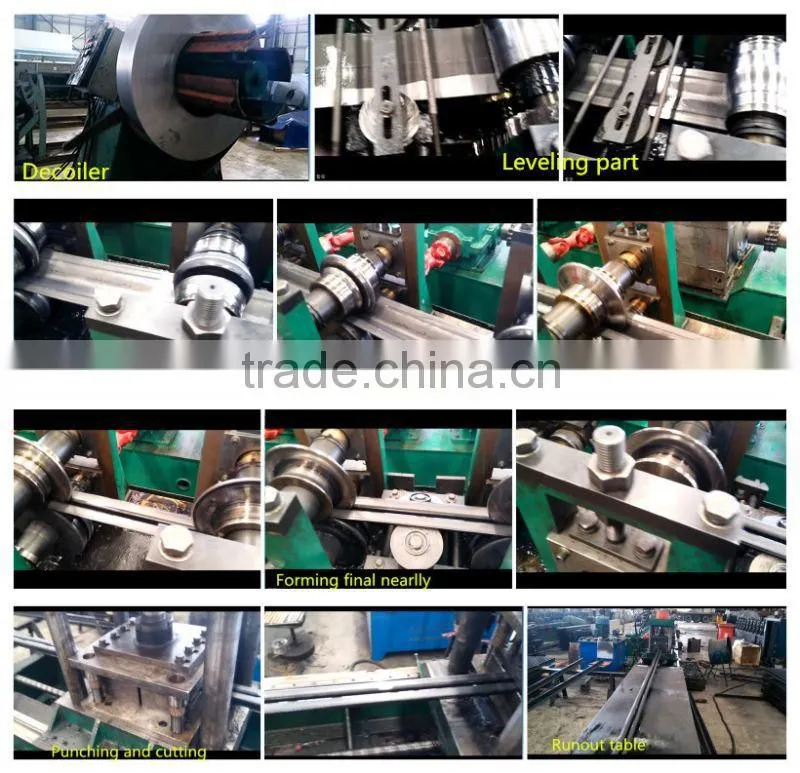

Check how the Elevator Guide Rail Manufacturers works from the following pictures :
Check details from the following pictures:

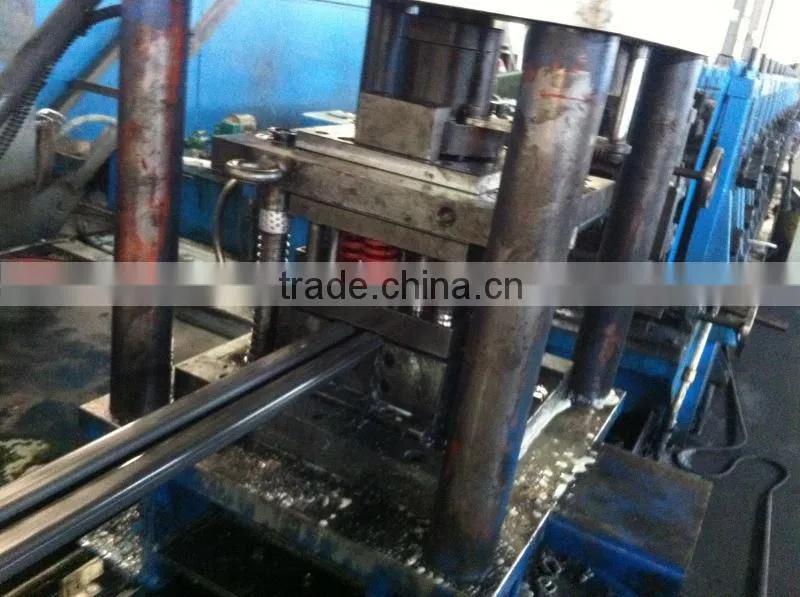

This picturtes is taken from running machine and this part is for shearing and punching.

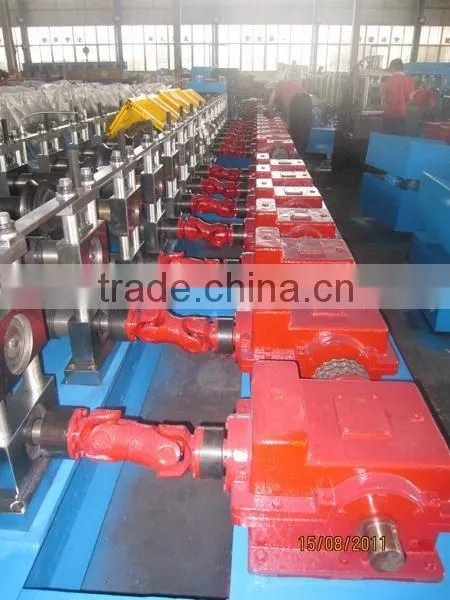

This part is for case of differential which contain gear box inside. By this method, the machine working speed could be enhanced twice.
Service:
-
Before-sales
- We will answer the customer asap. (within 24hours)
- We can design the machine according to customer’s detail requests.
-
After-service:
- In correct operation & maintaining, the machine is guaranteed for one year
- If necessary, we will dispatch technicians to install and commissioning, and also our technicians will teach and training the customer’s workers to use the machine better.
- We will provide long-term technical assistance.

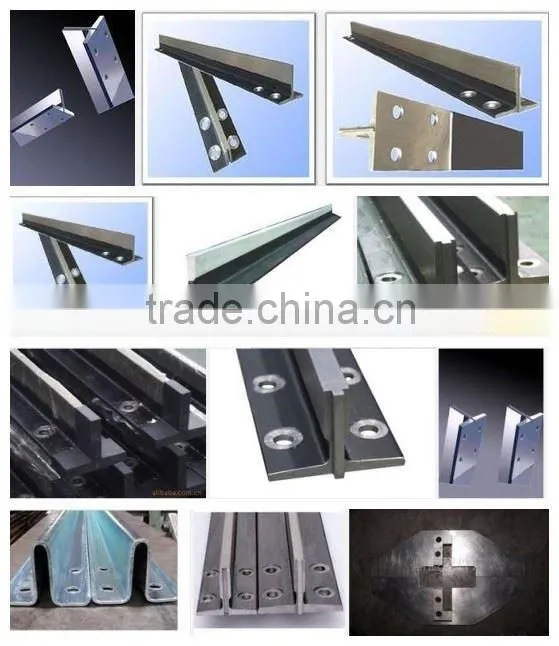

Samples of finished products:
