2D&3D SA1314 CNC Machining Center/ Wooden Window Making Machine
- 5 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Single Arm SA1314 CNC Machining Center for Wood Furniture
-
2015 Sale Promotion SA1314 CNC Machining Center/ Kitchen Cabinet Door Machines
-
ATC Spindle 3 Axis 1300x1400mm CNC Router/ Furniture Making Equipment
-
Made in China 3 Axis 1200x1300mm CNC Router/ Computer Cabinet Making Machine
-
Cheap High Precision 3 Axis 1200x1300mm Machines For Making Furniture
-
2015 Sale Promotion SA1230 Wood Cutting Machine In Furniture
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | WinWin | |
| Model Number | SA1434 | Voltage | AC/380V, 50/60Hz | |
| Power(W) | 6.5KW | Dimension(L*W*H) | 4800x2250x2300mm(Packing size) | |
| Weight | 3100KG | Certification | CE, UL, ISO | |
| Warranty | 1Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2D&3D SA1314 CNC Machining Center/ Wooden Window Making Machine
1. Overview
Single Arm Machining Center standard features include a Italian 12 HP HSD high frequency automatic tool changer spindle with a carousel type rack(in linear type or rotary carousel type, Germany Schmalz moving vacuum table, and material placement stops and are manufactured using global state-of-the-art techniques with all steel construction.
2. Top Quality Components
1.) Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
2.) Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
3.) Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time. 4.) Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
3. Applications
Panel furniture industry: wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, mahjong table, office furniture, wooden sound box, wooden furniture, kitchenware and other processing.
4. Materials Cut
Plywood, MDF, Rose Wood, Solid Wood, etc.
5. Performance Parameter
| No. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1400*3400*350mm |
| 2 | Table Size | 1500×4000mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300 |
| 4 | X,Y,Z repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum pad clamping, moving beam |
| 6 | Frame | Welded structure |
| 7 | Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | X, Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without spindle) 6.5Kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 9.0/12.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Yaskawa servo system |
| 15 | Working Voltage | AC380V/50/60Hz,3PH |
| 16 | Command Language | G code |
| 17 | Operating System | Syntec control System(Osai) |
| 18 | Computer Interface | Ethernet |
| 19 | Flash Memory | 512M(with CF card) |
| 20 | Collet | ISO30, ER32 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Beacam |
| 23 | Running Environment Temperature | 0 - 45 centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 4800X2300X2300mm |
| 26 | N.W. | 2850KG |
| 27 | G.W. | 3100KG |
| 28 | Guarantee | One year from the date of commission |
| 29 | Optional Parts | Air cooling spindle or Water cooling spindle |
| Dust collector | ||
| Osai control system | ||
| Schmalz Vacuum system | ||
| Panasonic Servo motors/Delta servo motors |

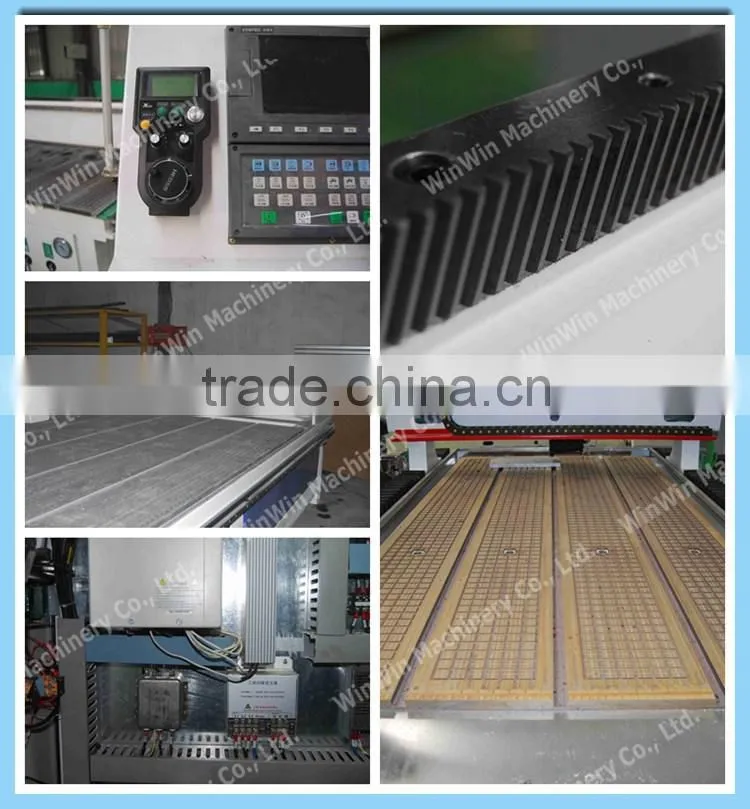

6. Configurations

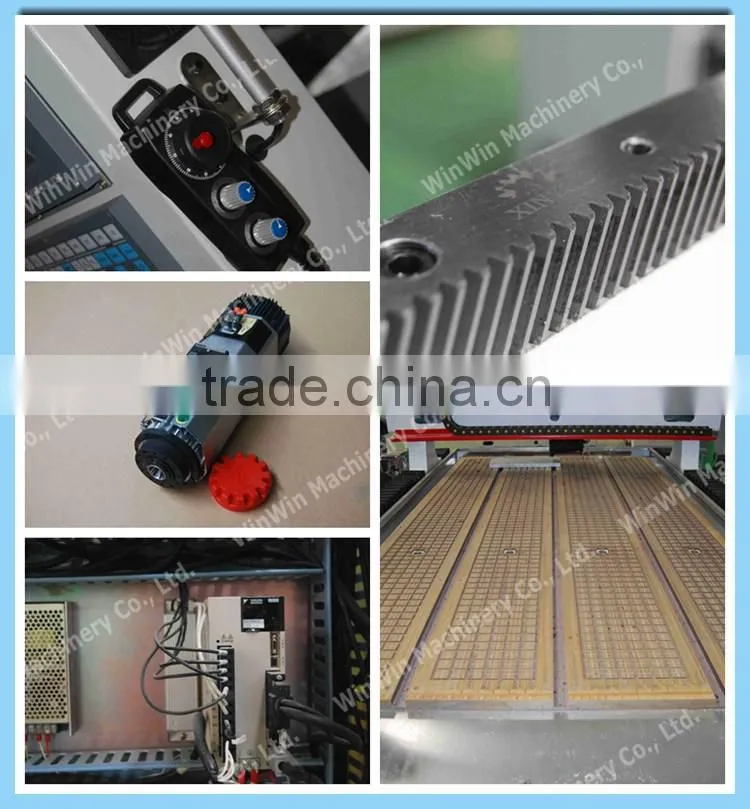

7. Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
