High Precision 3 Axis 3D CNC Router 6090
1. Overview
The CNC Router 6090 is an affordable CNC work platform. Ideal for any size shop requiring a compact machine to run small routing jobs or to be used as an educational tool. The Routers features ball screw drives on all three axes and is controlled using a DSP easy-to-use hand-held micro stepper controller. The controller can run G-Code or dxf file formats.
2. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
3. Performance Parameter
| No | Description | Parameter |
| 1 | X,Y,Z Working area: | 600x900x90 mm |
| 2 | Table Size: | 720x1140 mm |
| 3 | Table Surface: | T-slot table |
| 4 | Frame: | Cast Iron table, Steel tube structure |
| 5 | X, Z Structure: | Round rails and TBI ball Screw, |
| 6 | Y Structure: | Ball Screw, Hiwin Rail Linear Bearings |
| 7 | Max. Power Consumption (Without spindle): | 2.2 KW |
| 8 | Max. Rapid Travel Rate: | 8000mm/min |
| 9 | Max. Working Speed: | 5000mm/min |
| 10 | Spindle Power: | 1.5kw water cooling spindle |
| 11 | Spindle Speed: | 0-24000RPM |
| 12 | Drive Motors: | Stepper system |
| 13 | Working Voltage: | AC220V/50/60Hz,1 Phs |
| 14 | Command Language: | G Code |
| 15 | Operating System: | DSP System(options: Ncstudio/Mach3 PC Software) |
| 16 | Software Compatibility: | Type3/UcancameV9 software, (Option: Artcam software) |
| 17 | Running Environment Temperature: | 0degree - 45 degree |
| 18 | Relative Humidity: | 30% - 75% |
| 19 | Computer interface: | USB |
| 20 | Flash Memory: | 128M(U Disk) |
| 21 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| 22 | X,Y,Z Repositioning Accuracy: | ±0.01 |
| 23 | X,Y Resolution | <0.01mm |
| 24 | Collet: | ER16 |
| 25 | Packing Size: | 1600X1300X1700mm |
| 26 | N.W.: | 300kg |
| 27 | G.W.: | 400KG |
| 28 | Guarantee | One year from the date of commission |

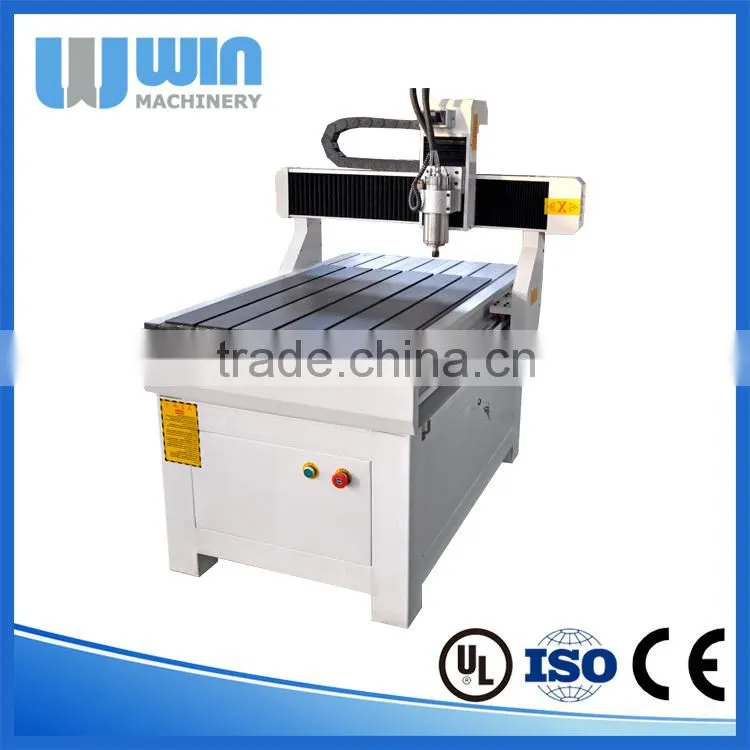

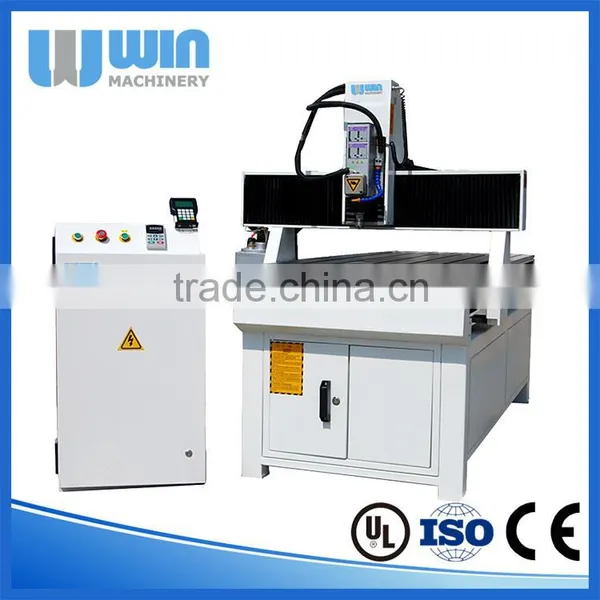

4. Details
5.Samples

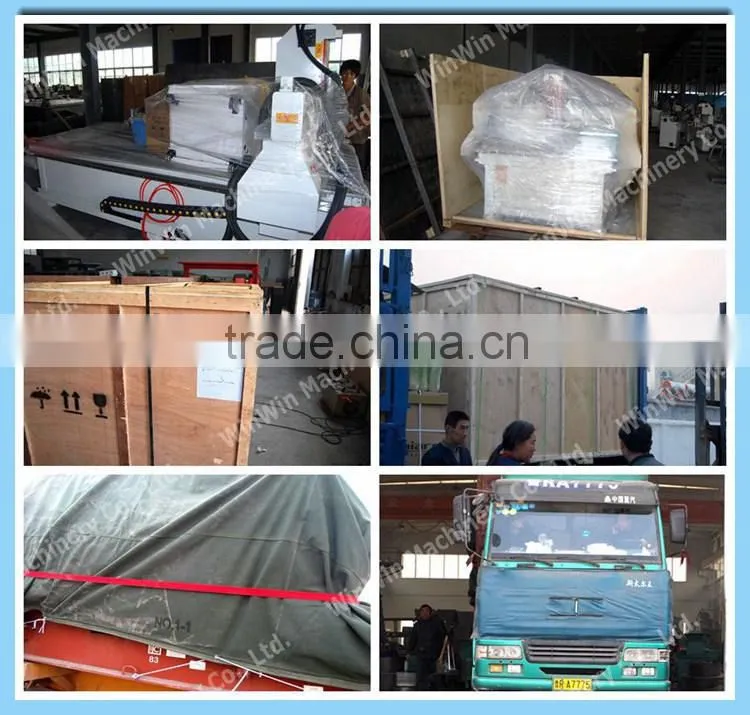

6. Packing&Delivery
7. Guarantee & After Sales Service
1.)The CNC Router 6090 is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.

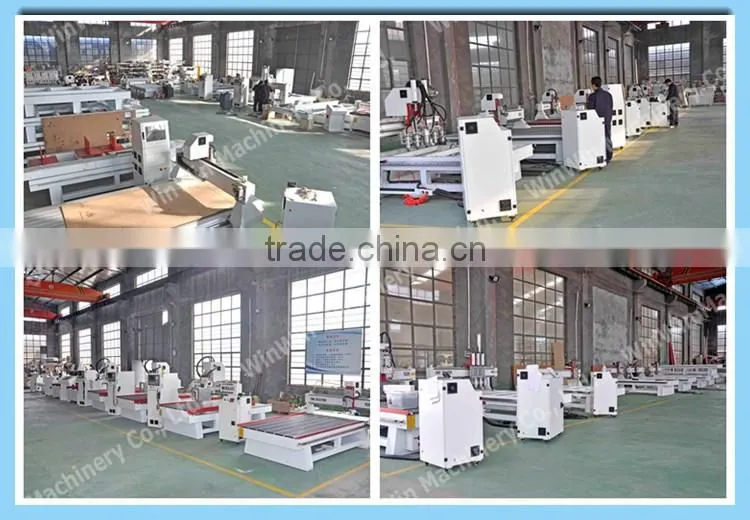

8. Factory
9. Contact US
1.How about the delivery time?
Normal 3axis CNC machine-within 2weeks.
ATC CNC machining center-within 4weeks.
4axis CNC machine-within 50days.
5axis CNC Router-within 6months.
2.What kind of payments do you support?
T/T.L/C ,other kinds please contact with us.
3.What’s the MOQ?
For whole machine, MOQ=1.
4.Can you produce according to customer’s design?
Sure ,we are professional manufacturer ,OEM are also welcome.
5.Can you tell me your main customers?
That’s our customer’s privacy ,we should protect their information.
At the same time, please rest assured that your information is also safe here.
6.Consult
We will recommend the most suitable machine to you after being informed by your requirements, such as the main jobs you wanna the machine to process, the materials you will wanna to process, the working area you want, the max cutting thickness, etc.
