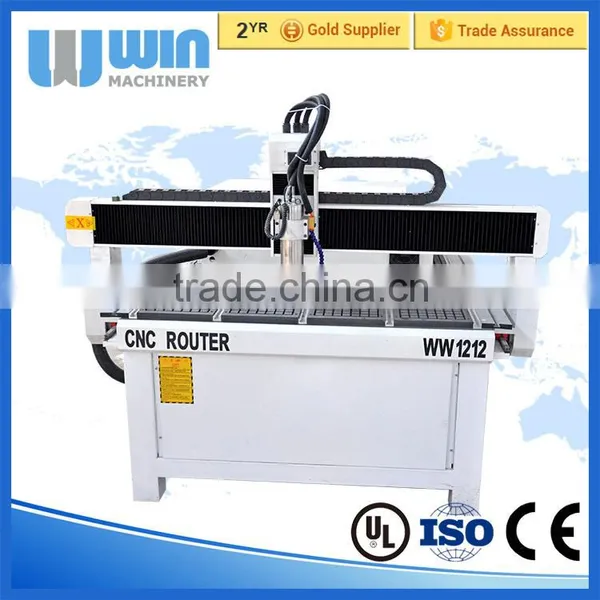

Cheap CNC Lathe Machine WW1212W

Cheap CNC Lathe Machine WW1212W thumbnail-1
Cheap CNC Lathe Machine WW1212W thumbnail-2
Cheap CNC Lathe Machine WW1212W thumbnail-3
Cheap CNC Lathe Machine WW1212W thumbnail-4
Cheap CNC Lathe Machine WW1212W thumbnail-5
Cheap CNC Lathe Machine WW1212W thumbnail-6
Cheap CNC Lathe Machine WW1212W photo-1
Cheap CNC Lathe Machine WW1212W photo-2
Cheap CNC Lathe Machine WW1212W photo-3
Cheap CNC Lathe Machine WW1212W photo-4
Cheap CNC Lathe Machine WW1212W photo-5
Cheap CNC Lathe Machine WW1212W photo-6
US$ 4,600 - 9,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
WinWin Machinery Co., Ltd.(Jinan)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name WinWin
Model Number WW1212W
Voltage AC220v, 50/60Hz
Power(W) 2.2KW
Dimension(L*W*H) 1700*1700*1500mm
Weight 600KG
Certification CE, UL, ISO
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Cheap CNC Lathe Machine WW1212W

Overview

This CNC Router is suitable for advertising working. It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. Working with dust hood on all three axis, it can stop dust away from the rails and ball screws, and to keep the machine working for longer time.
We use accurate LM linear (HIWIN) for Y axis, with options such as water cooling system or mist cooling system etc.

Advantages

1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3) Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Applications

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Materials Cut

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Specifications for WW1212W CNC Router
NO.
Description
Parameter
01
X,Y,Z Working Area
1200x1200x200mm
02
Table Size
1260×1460mm
03
X,Y,Z Traveling Positioning Accuracy
±0.01/300mm
04
X,Y,Z Repositioning Accuracy
±0.01mm
05
Table Surface
Vacuum and T-slot Combined (Option: T-slot Table)
06
Frame
Welded Structure
07
X, Y, Z Structure
Ball Screw, Hiwin Rail Linear Bearings
08
Collet:
ER16
09
Max. Power Consumption
(Without Spindle) 2.2Kw
10
Max. Rapid Travel Rate
10000mm/min
11
Max. Working Speed
6000mm/min
12
Spindle Power
1.5kw water cooling spindle
13
Spindle Speed
0-24000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC220V/50/60Hz
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER25
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3/UcancameV9 Software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
1900X1900X1700mm
26
N.W.
4000KG
27
G.W.
600KG
28
Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors
No.
Option Part
1
Vaccum Pump: holding the sheet materials.
2
Mist-cooling System: cooling down the tools durning cutting metals.
3
Dust Collector: collect the dust during machine processing.
4
Rotary: carry round materials for 4D engraving.
5
ATC Function: changing tools automatically.
Video

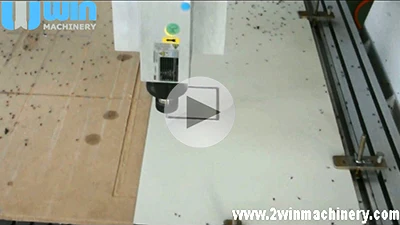

Normal CNC Router to Cut MDF


CNC Router to Engrave on Aluminum


Detailed Images

Spindle

Brand: HSD
Original: Italy
Italian Air-cooling spindle, or top quality water-cooling
spindle.

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

Electrical Parts

Brand: Omron, Schneider, Delta.
Original: Germany, China
All electrical components, cabinet, assembling and wiring meet the standard of CE and ANSI.

Driving System

Brand: YASKAWA etc.
Original: Japan, China
Whatever stepper or servo driving system we use, all of
them are top quality with CE & CCC.

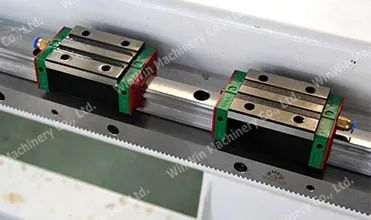

Transmation System

Brand: HIWIN, THK, TBI
Original: Taiwan, Japan
Ball screw made in Germany, rack&pinion with bigger

size, Taiwan Hiwin & Japan THK adopted.

Wire

Original: China
High flexible shielding cable, working between -75℃ to
115℃. 95% shielding scope.

Certifications
Basic Accessories
Packing & Delivery
Packaging
Size
190 (L) * 190 (W) * 170 (D)
Weight
0.60 T



Packaging Details

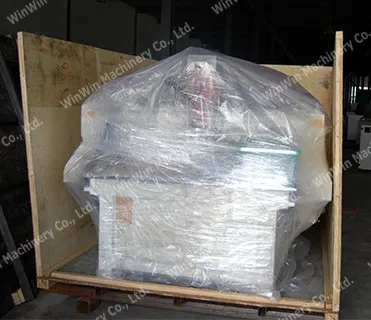

The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after the payment.

Guarantee & After Sales Service

1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
