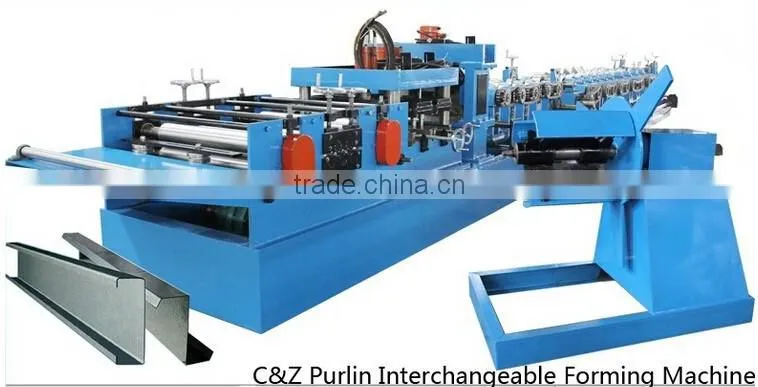

CZ interchangable purlin roll forming machine
Details of each parts:
Main parameter of CZ interchangeable roll forming machine

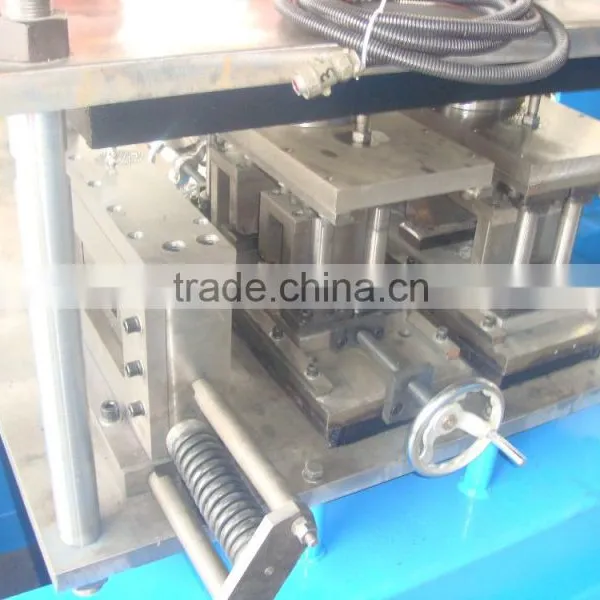

a. Pre-punching and cutting part
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
Material of blades: Gcr12MoV quenched

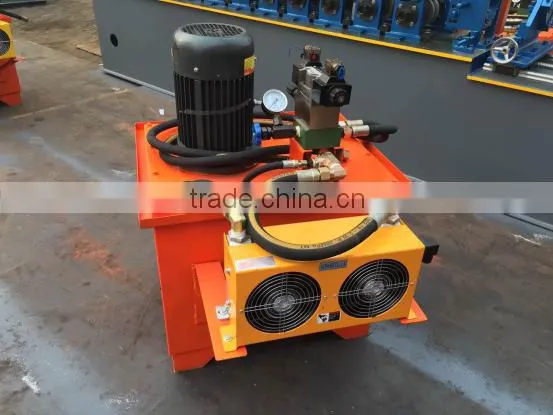

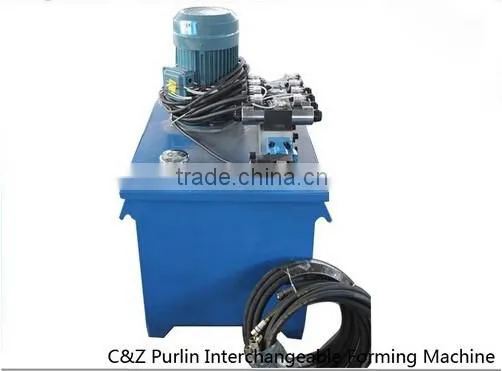

Power supply : hydraulic power
Power :7.5 kW
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch
b.Roll forming part:
1)Number of forming steps:20 steps
2)Material of shafts:45# steel, hardening and tempering,HRC40-45°
Outer diameter:80 mm
3)Material of rollers:GCr15 or Cr12 quenched, HRC 58-60°
4)Transmission: chain
5)Forming speed:20 m/min
6)Motor:18.5 kW
7)Voltage:380V,50Hz,3 phase
8)Frame : middle plate welded
9)Dimensions:12400 x 1800 x 1800 mm
10)Weight of machine: about9.8 tons
11) Leveling: one set, seven rollers
12)Changing speed from one profile to another or from one size to another size: 25 minutes.
13)Suitable material: 1.5-3.0 mm, Q195~235 cold rolled steel, hot-zinc coil
14)Material of roller: GCr15, 40Cr, quenched,

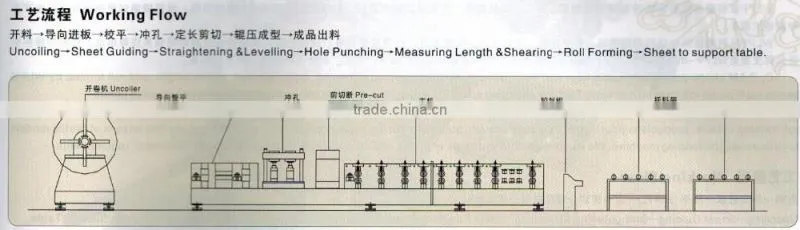

Working flow:
Drawings profile:

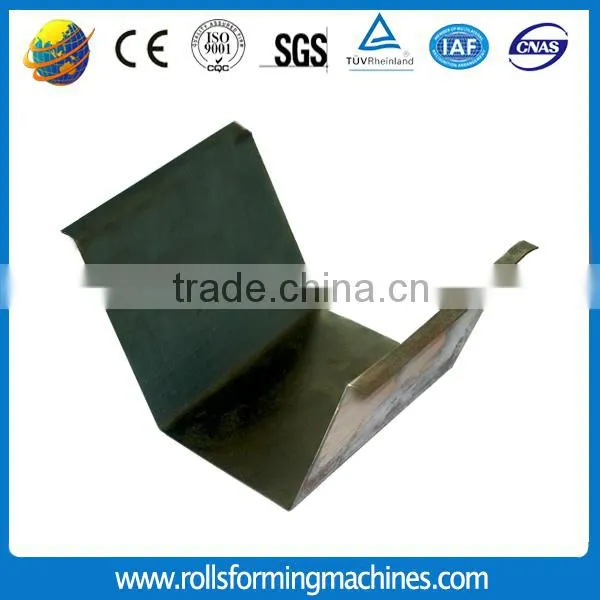

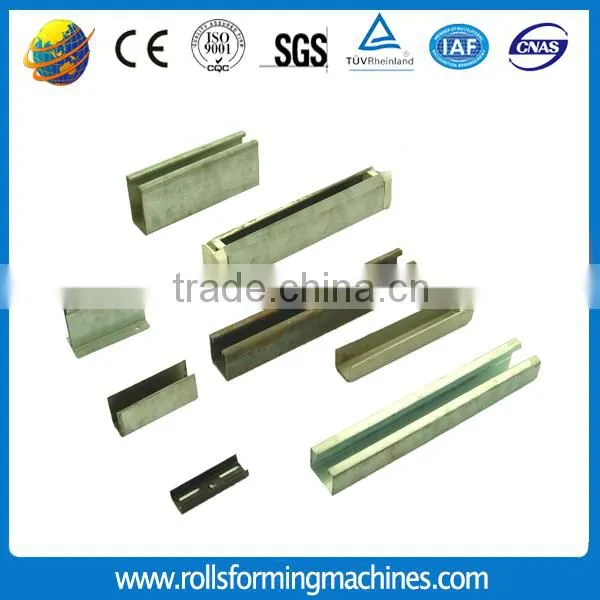

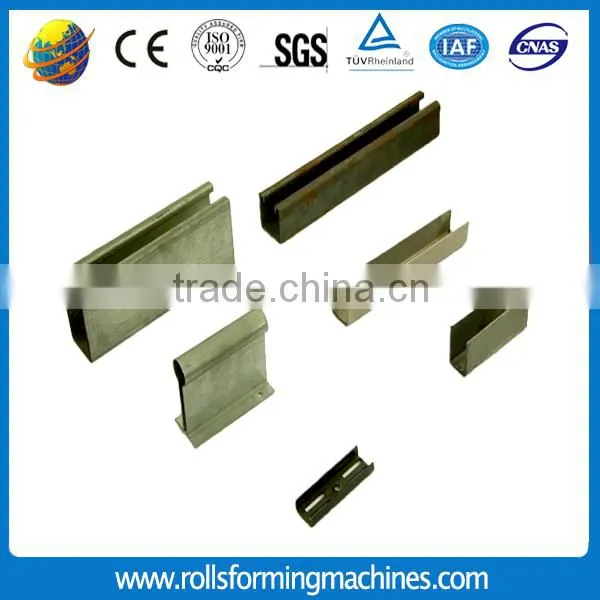

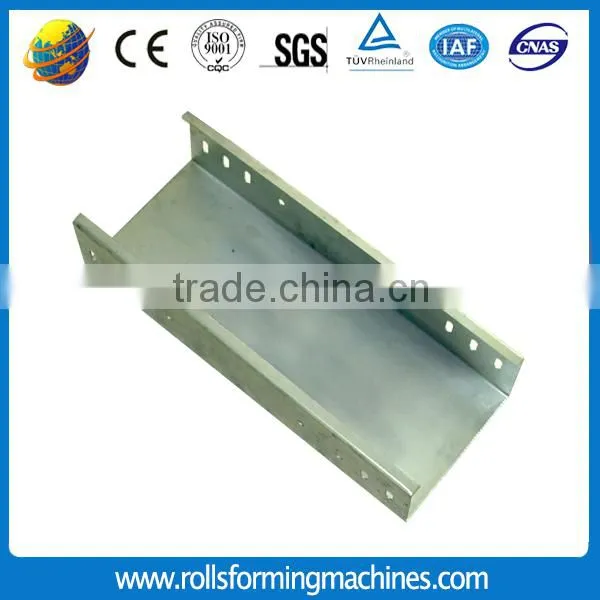

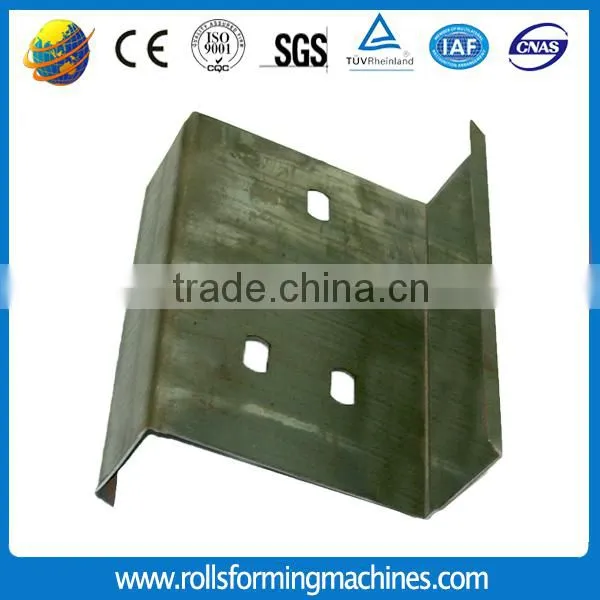

Finished product for your reference:

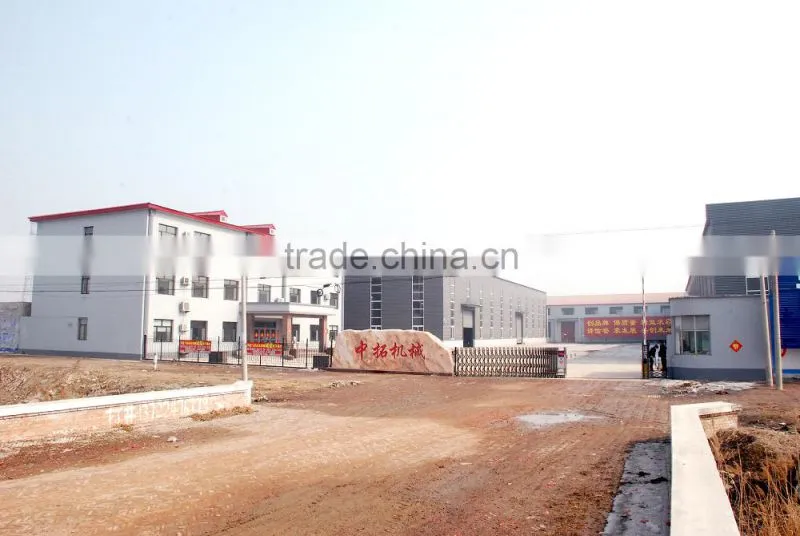

Factory scene:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 20 days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
