Sheet Glass Automatic Gluing Machine
Hollow glass automatic gluing machine is the production of hollow glass or aluminum tank glass curtain wall coater process and ancillary equipment, we can supply out two-component polysulfide or two-component silicone rubber, A, B component respectively, by adhesive glue pump hydraulic and pneumatic drive systems grading pressurized supply outward up to a certain pressure, reversing mechanism apparatus using PLC control, with sensitive and reliable, continuous and stable pressure of the working medium to provide a large, energy-saving features . To ensure uniform coating machine glue, good adhesive effect, high production efficiency.

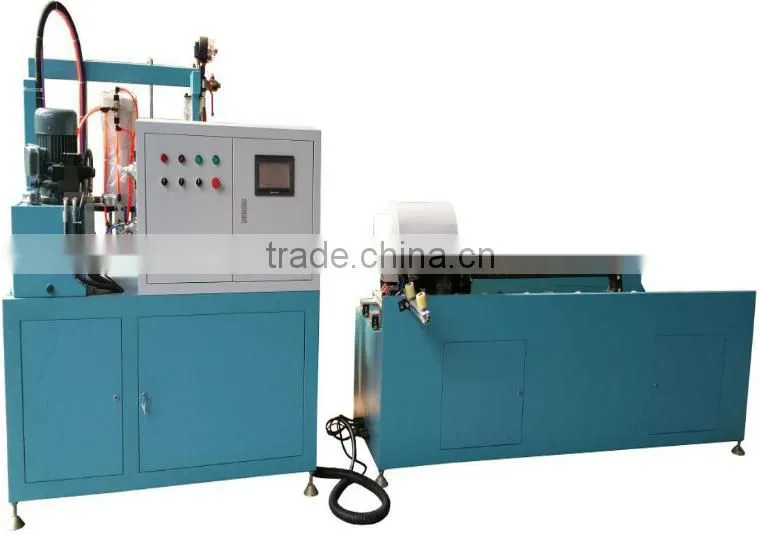

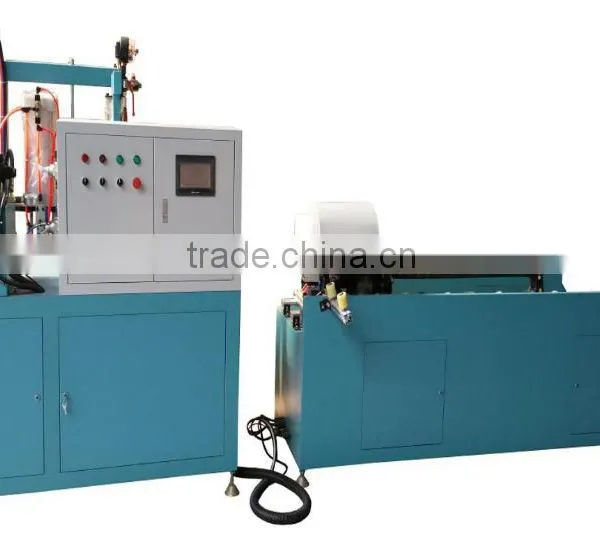

The machine size(L*H*W):4.3*2*1.2 m
Make up of two parts: supplying glue machine and gluing machine
Glass size:
Min size(L*W):300*300 mm
Max size(L*W):2500*2500 mm
Thickness:16--40 mm

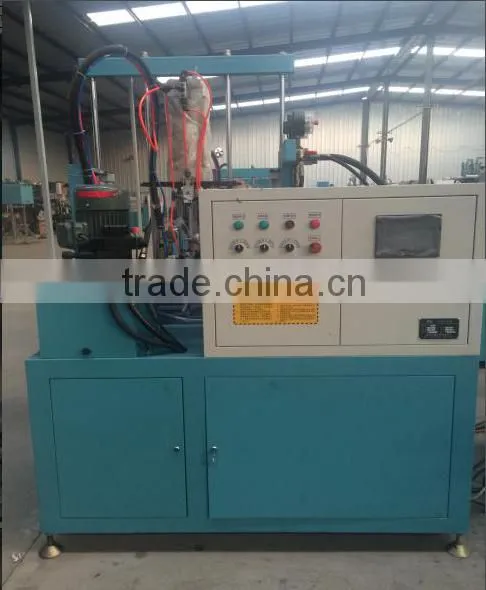

Supplying glue machine
The machine size(L*H*W):
1.5*2*1.2 m
Make up of four parts:
Hydraulic station,supplying glue air cylinder Storage glue station Control station

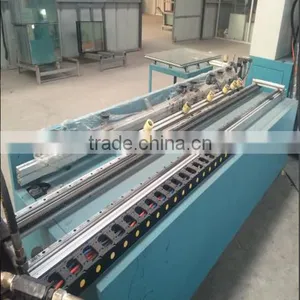

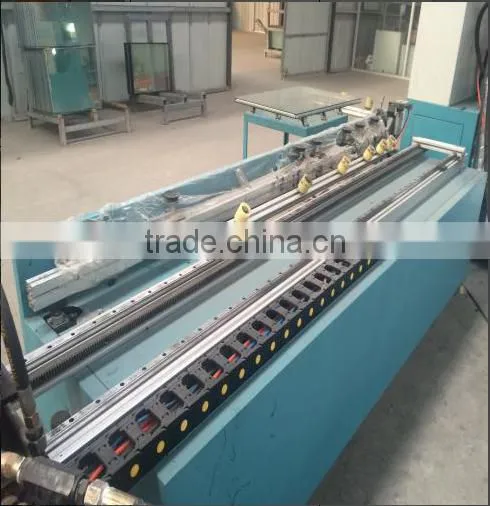

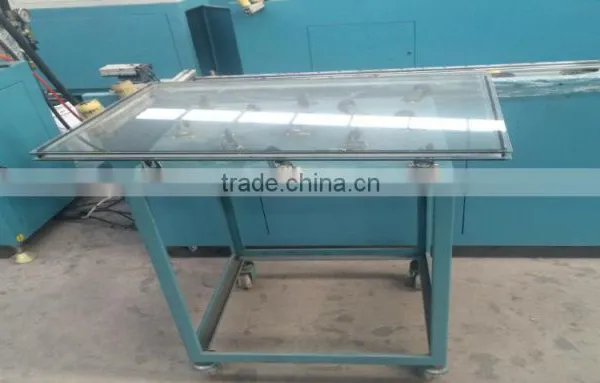

gluing machine
Size(L*H*W):2.8*0.7*0.7 m
Make up of machine beginning and Running line
Double glass coating speed: 12-15 m/min
Three layers coating speed: 5-40 m/min
Guide rail (2 strips): SBG-20-2800 MM
Sliding block(2 pieces): SBG-20

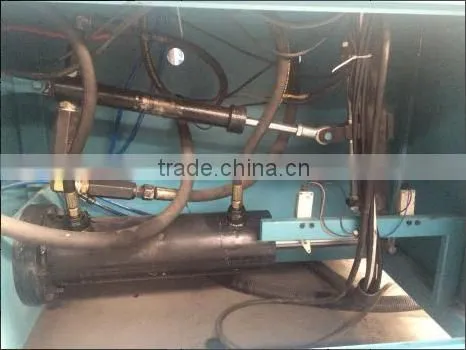

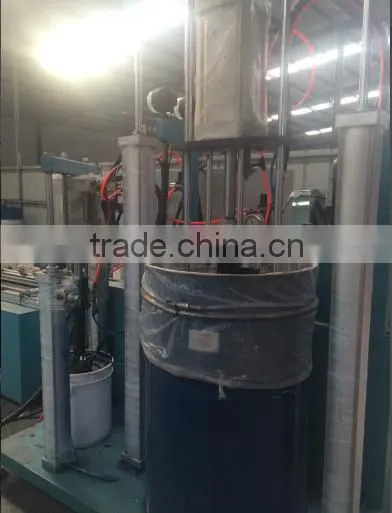

Supplying glue air cylinder
cylinder gas:SC-160×250(1 strip) and FSC-160×75-S (1 strip)
Vacuum Generators (9 pieces): VML0506
Storage glue station
To ensure that customers in the gluing process of continuous gum, played the role of a secondary pressure

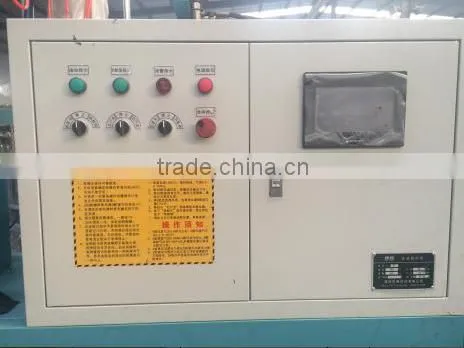

Control Box
Control to work for the melter and gluing machines
Brand name : Taiwan Taida (On customer`s request)
Touch screen:TK6070IQ
frequency converter:SY3200-P4ROT4 3PH 380V

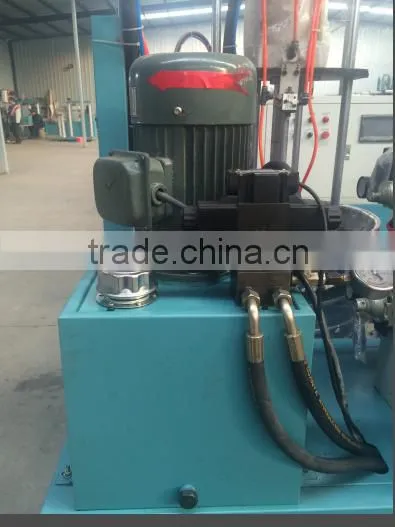

Hydraulic station
Power:0.75KW
Electrical machine: 2.2 KW
Voltage: 380V (on customer`s request)
Gear pump: 2.2 KW
Magnetic exchange valve: DSG-01-3C60-N-50
