240W Switching Power Supply 5v.12v.15v.24v.36v.48v.60v.70v

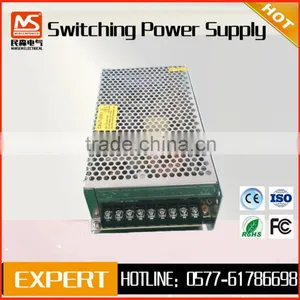

240W Switching Power Supply 5v.12v.15v.24v.36v.48v.60v.70v thumbnail-1
240W Switching Power Supply 5v.12v.15v.24v.36v.48v.60v.70v photo-1
US$ 10 - 1,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
minsen
Model Number:
S-240-12
Contact Supplier Request Quote Chat Now
Yueqing Minsen Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name minsen
Model Number S-240-12
Output Power 201 - 300W
Output Type Single
Input Voltage 220V
Output Voltage 12V/24V
Output Frequency 470HZ
Output Current 12V 20A



Product Description



240w Specifications sheet
model S-240-5 S-240-7.5 S-240-12 s-240-13.5 S-240-15 S-240-24 S-240-27 S-240-48
 DC Output voltage  5V  7.5V  7.5V  13.5V 15V  24V 27V 48V
 Output voltage range(Note:2)  ±2%  ±2%  ±1%  ±1%  ±1%  ±1%  ±1%  ±1%
 Rated output current 45A 33A 20A 18A 16.5A 10A 9A 5A
 Output current range  0~45A  0~33A  0~20A  0~18A  0~16.5A  0~10A  0~9A  0~5A
 Wave and noise(Note:3)  75mVp-p  75mVp-p  75mVp-p  75mVp-p  75mVp-p  75mVp-p    100mVp-p  100mVp-p
 Inlet stability(Note:4)  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%
 Load stability(Note:5)  ±1%  ±1%  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%  ±0.5%
 DC output power  225W  240W  240W  240W  240W  240W  240W  240W
 Efficiency  74%  79%  83%  83%  84%  85%  85%  86%
 Adjustable range  4.5~5.6V  6~9V 10~13.2V   12~15V  13.5~18V  20~26.4V  26~32V  41~56V
 AC input voltage range          90~132VAC/180~264VAC selected by switch 47~63Hz, 254~370VDC
 Input current          3.6A/115V 1.8A/230V
 AC Inrush current          25A/115V 50A/230V
 Leakage current          <3.5mA/240VAC
 Overload protection        105 ~ 150% Type: pulsing hiccup shutdown Reset: auto recovery.
 Over-voltage protection          115%~135%
 Temperature coefficient          ±0.03%/°C(0~50°C)
 Setup, rise, hold up time          200ms, 100ms, 20ms
 Vibration          10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes
 Withstand voltage          I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
 Isolation resistance          I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
 Working temperature and humidity          -10°C~+60°C (Refer to output derating curve), 20%~90%RH
Store temperature and humidity          -20°C~+85°C, 10%~95%RH
dimension          199X110X50mm (L*W*H)
 Weight          0.82Kg
 Safety standards          Design refer to UL 1950
 EMC standards          Design refer to FCC PART15J class A
Note:
1. The parameter under the testing condition : 230VAC input, rated load, 25°C70% RH. Temperature.
2. Tolerance: Including setting tolerance, circuit stability and load stability. (Note: 5).
3. Wave test: Adopting “A12” double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: the lowest voltage will be up to the highest voltage when the circuit overload.
5. Load stability test: The load is from 0% to 100%.
6. C3, 4, 32 must be knocked down.
