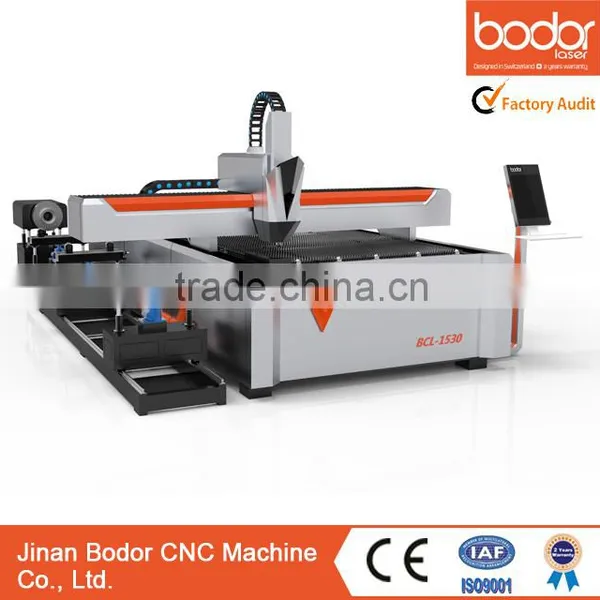

Dual-use Metal Sheet and Tube CNC Laser Cutting Machine
- 70 Set / Sets per Month
- Qingdao Tianjin Shanghai etc
- T/T Credit Card
Product Details
Condition: | New | Laser Type: | Fiber Laser | Applicable Material: | Metal |
Cutting Thickness: | 0-20mm | Cutting Area: | 1500*3000mm | Cutting Speed: | 20m/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Cypcut |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China | Brand Name: | Bodor |
Model Number: | BCL-FBR | Certification: | CE, ISO, SGS, Other, CE, ISO, SGS, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

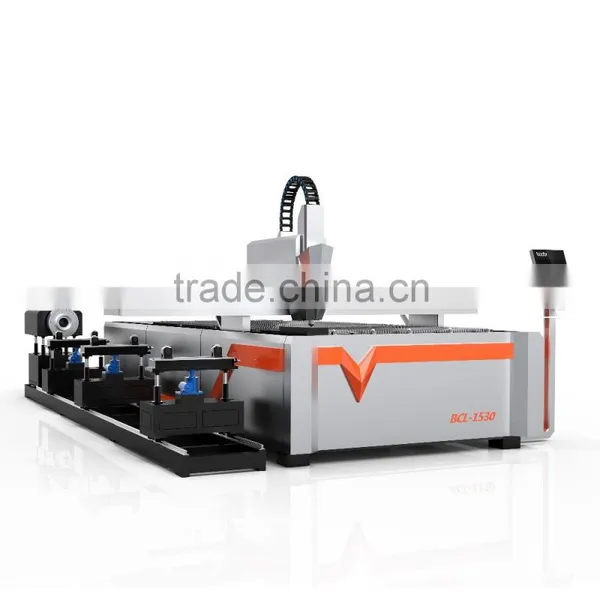

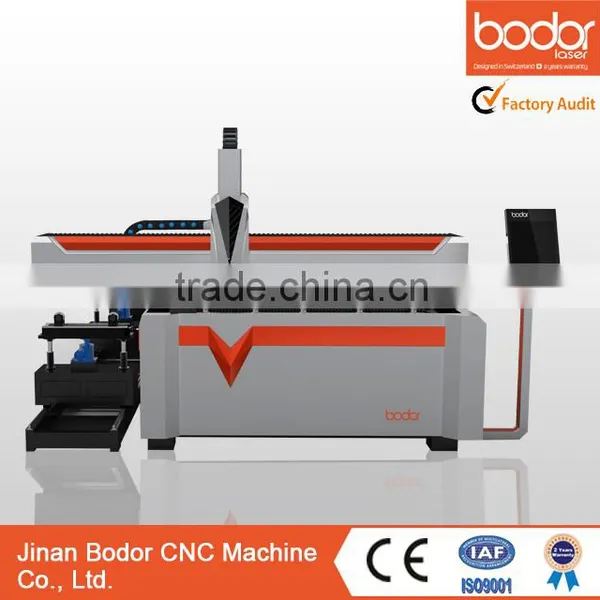

Dual-use Metal Sheet and Tube
CNC Laser Cutting Machine
Main Features
1. Self-design rotary and plate working process combination save high cost and space.
2. Available for different diameter and length tubes.

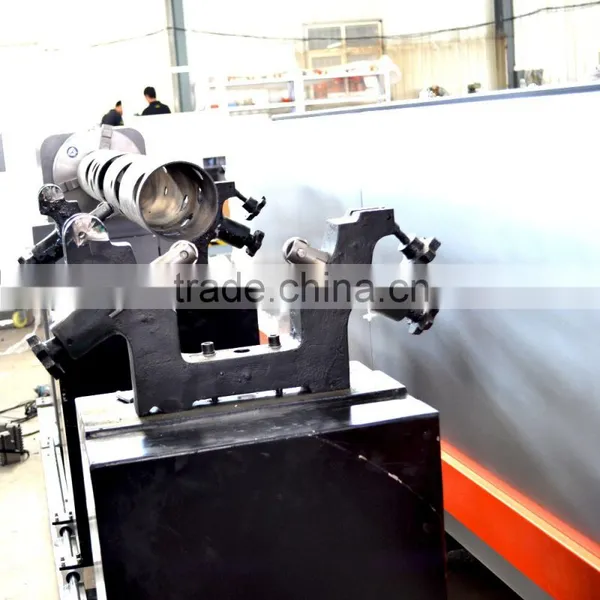

3. Electric-drive motor in rotary device adjust speed freely. Easy-work, lower noisy, high rotary speed, high accuracy.
4. Intersecting line can be cut. Different diameter tube can be welded together. Best choice for tubular construction.
Technical Parameter
Model | BCL 1530FBR | Option |
Working Area | 1500*3000mm | According to Demands |
Driving Mechanism | Rack | |
Laser Module | Fiber Laser Module 400-2000W | |
Max. Cutting Speed | 25m/min | |
Positioning Accuracy | ≤±0.08mm/1000mm | |
Pulse Width | 0.1-20ms | |
Min. Line Width | 0.15mm | |
Cooling Mode | Water Cooling Chiller | |
Power System | Japan Servo Motor | |
Power Requirements | 380V/50Hz/100A |
Applications
Available for cutting such metal plate and steel tubes as staineless steel,carbon steel,alloy steel,spring steel,copper,aluminum,gold,silver,litanium.
Applied to industries of advertising board,sheet metal structure,Hv/Lv electrical ark production,textile machinery parts,kitchen utensila,car,machinery,elevator,electric parts,spring coil slice,subway line spare parts,etc.
>Excellent beam quality (light-concentrating beam from optical fiber)
>Simple , compact, electrically and optically efficient (small footprint and low power consumption by fiber amplification)
>Compatibly powerful and reliable (realized by high brightness, high power semiconductor lasers as pumping light)
>Maintenance free (the entire optical fiber setups without lenses, mirrors)
>multilingual, more than 11 foreign languages
>2 years warranty
1.Machine cleaning → 2.Protective film wrapping → 3.Wooden box sealing → 4.Box nailing → 5.Wooden box delivery → 6.Container loading → 7.Cotainer Sealing → 8.Transportation
Free Sample Cutting +2 Years Warranty +Free Technital Training +Installation and Commission Support +24 Hours On-line Service +Multilingual Service +Prompt Delivery +English Version User Manual and Operation Video
Jinan Bodor CNC Machine Co., Ltd. specializes in various laser equipments R&D and production, such as laser cutting,
engraving and marking, all series machine are with two-year's warranty. Also we can supply some different languages like
English, French, Arabic, Spanish, Russian, Korean, Portuguese, German. Meanwhile, customize personalized equipments ispossible according to customers' requirements.
Within this field, Bodor passed CE and FDA certification. Moreover, Bodor has successfully practiced ISO quality
system and 5S management, which assures high-efficient production and products' reliability. After years of hard work, Bodor's products have commanded a ready market in 80 Countries of North America, West Europe, South Asia, South America and Mid East.
Facing the chances and challenges of Global Economic Integration, and opportunities of Knowledge Economy Era, the
wisdom and self-motivated Bodor stuff, brave and passionate and confirmedly to implement the Enterprise management policy: "Scientific Management, Continuous Improvement, Rapidly Development, Credit First, Quality First". We aim to be a Professional, Branding, and International suppliers for various industrial solutions.
Quality and credit goes all the way. Bodor, a company born through market competition, has very thick national culture,
and develops shoulder to shoulder with world and this Era, can achieve our dreams step by step with the high technology.
