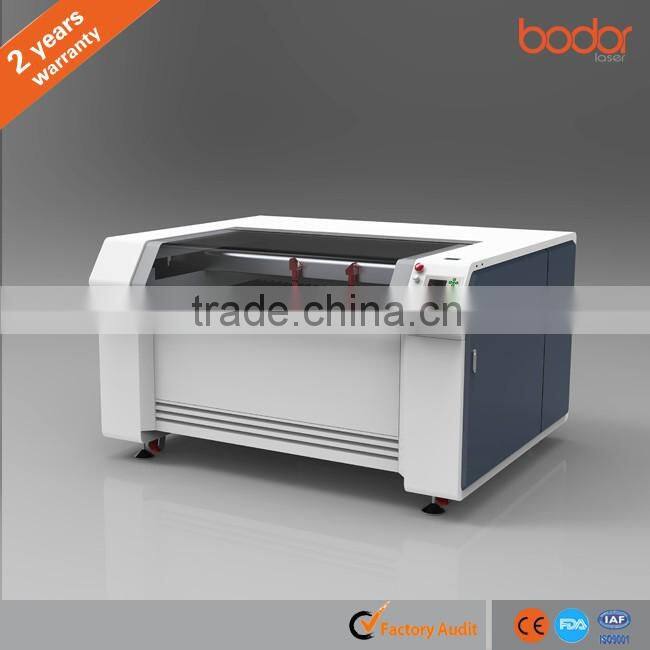

Help CenterChina Bodor Laser Cutting Machine BCL-X2H Series With Low Price
Related Products
-
CNC Laser Engraving Cutting Machine BCL-XP of ChinaUS$ 4,500 - 8,000MOQ: 1 Set -
Taiwan Laser Iron Sheet Cutting Machine BCL-XUS$ 3,200 - 5,200MOQ: 1 Set
-
High Precise CO2 Metal&non Metal Cutting Bed Cutting Machine With Ball ScrewUS$ 8,999 - 9,800MOQ: 1 Set
-
Table Top Co2 Laser Cutting and Engraving Machine From BodorUS$ 2,200 - 3,000MOQ: 1 Set
-
Cnc Co2 Double Head Laser Beauty Cutting and Engraving Machine From BodorUS$ 5,000 - 10,000MOQ: 1 Set
Model |
BCL1309X(H)2H(M) |
BCL1610X(H)2H(M) |
1812X(H)2H(M) |
Working Area |
1300*900mm |
1600*1000mm |
1800*1200mm |
Laser Power |
60w/80w/100w |
||
Laser Type |
CO2 Sealed Laser Tube,10.6μm |
||
Cooling Type |
Water Cooling |
||
Engraving Speed |
0-60000mm/min |
||
Cutting Speed |
0-40000mm/min |
||
Laser Output Control |
0-100% Set by Software |
||
Min.Engraving Size |
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
||
Highest Scanning Precision |
4000DPI |
||
Locating Accuracy |
≤+0.01mm |
||
Controlling Software |
DSP Control System |
||
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
Compatible Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
||
Color Separation |
Yes |
||
Drive System |
High-precision 3-phase Stepper Motor |
||
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
Working Environment |
Temperature:0-45C,Humidity5-95%(No Condensate Water) |
||
Option |
Up&Downtable,Honeycomb Worktable,Rotary Device,Auto-focus Device |
||
Gaurantee and after sale service:
Gurantee the whole machine for one year and laser tube for 3 months(The longest warranty time is 10 months.); offer lifelong repair; laser tube’s average life is 6000-10000 working hours(depends on the laser power); Offer 24 - hour technical support.

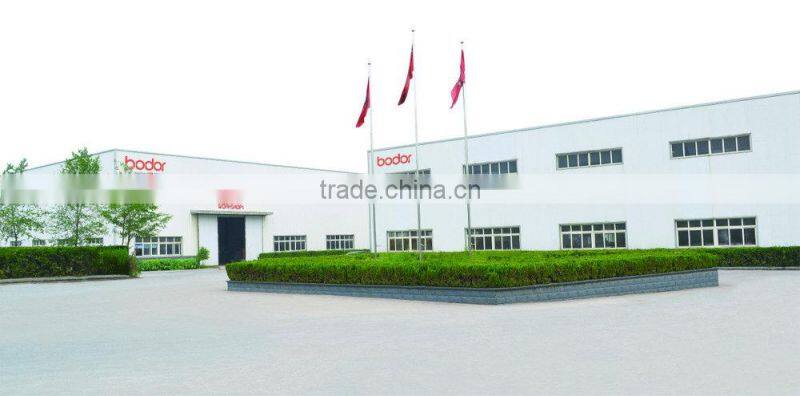

Jinan Bodor CNC Machine Co.,Ltd was founded in 2002. In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bosor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bo... View detail
