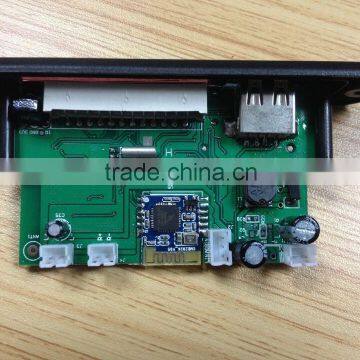

Help CenterProfessional Buletooth Module,buletooth Mp3 Decoder Board
Related Products
-
JRHT-G003 Buletooth and Usb SpeakerUS$ 1 - 6.5MOQ: 1000 Pieces -
BM-X8 Mp3 Player Decoder Board With Usb and SD CardUS$ 1.55 - 2.25MOQ: 1000 Pieces
-
ES-316L Mp3 Player Decoder Board With Usb and TF CardUS$ 1.55 - 2.25MOQ: 1000 Pieces
-
JR-M011 Mp3 Player Board ,mp3 ModuleUS$ 4 - 4.5MOQ: 1000 Pieces
-
Hot Sale JR-M011 Speaker Parts,audio AmplifierUS$ 4 - 4.5MOQ: 1000 Pieces
support USB and SD card
support mp3;wma form decode;
support buletooth solid play;
with sound 3W*2
With remote control for infrared;
with line input
with lcd display;
with FM;
5v/12v voltage,can chooes
PCB borad size:76*40mm
DC input:5V/12V
frequency input::single/solid voice
Distortion |
≤0.15% |
Separation |
≥50dB |
Output |
≥510mv |
S/N |
≥75dB |
Frequency response |
70HZ-18KHZ |
FM frequency range |
87.5-108MHZ |
Bit Rate |
32kbps-320kbps |
Operation Relative Humidity |
35% |
Storage Relative Humidity |
35% |
Storage Temp |
0 Deg.C-50Deg.C |
Ambient Temp |
-10Deg.C-+60Deg.C |
EQ |
Jazz, pop, classic, normal, country |
Remote Distance |
8M |
USB Interface |
USB2.0 high speed |
Storage Device |
USB&SD |
|
|
1, Functions instruction
Features:
1.Support EQ, single cycle, random choice
2.Support to switch external signals directly
3.Support IR remote control in 8 meter
4.Support USB&SD card switchover
5.Support MP3/WMA format

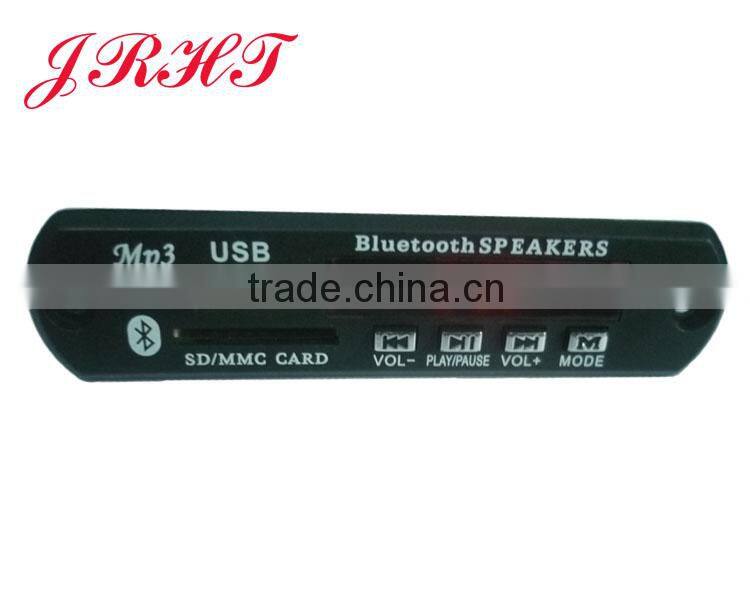

2, Mainboard keys operation instruction
S1: (PLAY/PAUSE/RANDOM) Short press for play or pause circularly.
Long press for on/off random play function.
S2: (PREV/VOL-) Short press for LAST, long press for VOL-.
S3: (NEXT/VOL+) Short press for NEXT, long press for VOL+.
300 PIECE IN ONE CARTON
CARTON SIZE:50*33*26CM
delivery date:15days after payment
