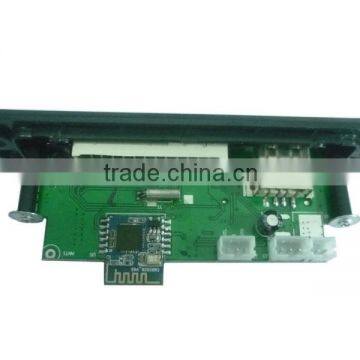

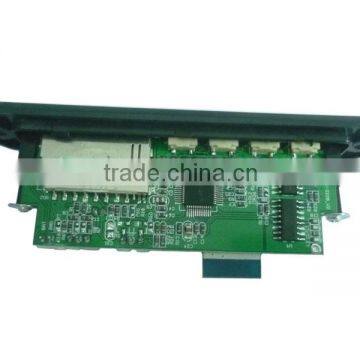

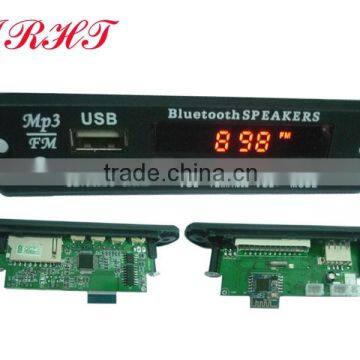

Help CenterJR-M011 Mp3 Player Board ,mp3 Module
Related Products
-
Hot Sale JR-M011 Speaker Parts,audio AmplifierUS$ 4 - 4.5MOQ: 1000 Pieces -
Hot Sale JR-M011buletooth Mp3 Pcba BoardUS$ 4 - 4.5MOQ: 1000 Pieces
-
Promotion JR-M011B Mp3 Module,sound ModuleUS$ 4 - 4.5MOQ: 1000 Pieces
-
BM-X8 Mp3 Player Electronic Circuit Boards Quality ChoiceUS$ 1.45 - 1.85MOQ: 1000 Pieces
-
BT04 Buletooth Audio Amplifier Decoder BoardUS$ 2.1 - 2.14MOQ: 3000 Pieces
Support USB,SD card
Support MP3 decoding;
Support bluetooth stereo play;
With IR remote control
With the LINE input
with led display
Support FM radio
Support 5v/12v voltage
PCB size:75*25mm
Panel size:106*25mm
DC Input:5V/12V optional
Specifications
1.Support MP3/USB/SD/AUX/FM
2.88:88 LED display&colour light
3.Resume function
4.IR remote control
Distortion |
≤0.15% |
Separation |
≥50dB |
Output |
≥510mv |
S/N |
≥75dB |
Frequency response |
70HZ-18KHZ |
FM frequency range |
87.5-108MHZ |
Bit Rate |
32kbps-320kbps |
Operation Relative Humidity |
35% |
Storage Relative Humidity |
35% |
Storage Temp |
0 Deg.C-50Deg.C |
Ambient Temp |
-10Deg.C-+60Deg.C |
EQ |
Jazz, pop, classic, normal, country |
Remote Distance |
8M |
USB Interface |
USB2.0 high speed |
Storage Device |
USB&SD |
|
|
1, Functions instruction
Features:
1.Support EQ, single cycle, random choice
2.Support to switch external signals directly
3.Support IR remote control in 8 meter
4.Support USB&SD card switchover
5.Support MP3/WMA format
2, Mainboard keys operation instruction
S1: (PLAY/PAUSE/RANDOM) Short press for play or pause circularly.
Long press for on/off random play function.
S2: (PREV/VOL-) Short press for LAST, long press for VOL-.
S3: (NEXT/VOL+) Short press for NEXT, long press for VOL+.
Founded: 2011
Total Staff: 21-50,including around 5 R&D Staff
Product Line: mini Card& USB reader speaker, portable FM radio speaker, MP3 decoder board, Car no disk drive , Magic ball stage light mp3 decoder board, MP3 bluetooth , ect.
We can add USB/SD function or USB/TF function and FM radio on MP3 decoder board , mini speaker, Car no disk drive
Remarks: 1) More new designs are on the way
2) We do best service to every customer, the more you order, the better price you will get.
3) If you have any problems, please feel free to contact with us.
