Specifications
support USB and SD cardsupport mp3;wma form decode;
support buletooth solid play;
With remote controlfor infrared;
(Introduction)

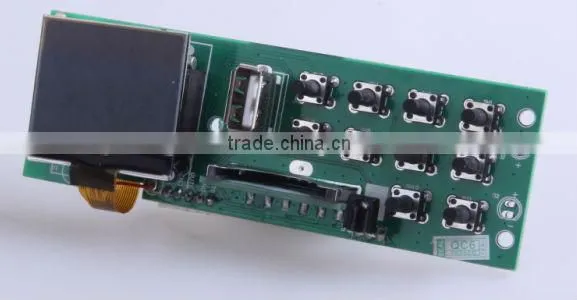

A highly integrated single-chip multimedia MP3 audio decoders, an increase of extracellular signal switch,
USB / SD switch, digital display more convenient intuitive to operate; and add a radio function, so that more
extensive programs; more enhanced U disk and SD compatibility. The products are widely used in home music
center, car audio and computer multimedia audio, professional audio active, IPOD stereo, mini stereo, AV
amplifier, massage chairs, electronic gifts, electronic toys. This product has been in mass production, stable
performance.
Note: The MP3 format can only decode, and WMA format files can not be decoded.
Features
3.3V ~ 5V single power supply (working voltage is 3.3V ~ 5V)
You can add 7805 to support 12V step-down IC
Support USB, SD, MMC cards for playback
Support FAT12, FAT16 file system
Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song
Supports 8-448kbps in the MP3 songs
Support AUX (for connecting external audio, and can be remote control or buttons to
control external audio volume)
Support from the direct signal switch, USB / SD card directly to switch, and external
audio volume control
With digital display
With FM (with FM radio, can automatically scan, storage units)
With 3W amplifier (with power amplifier features directly connected to the speakers
can play music, the output power 3W)
Power-down memory (when powered off, re-energized, when power will play the
songs)
Volume memory (when the power play, the volume in front of a shutdown as)
Music player remote control (with remote control can control all playback functions)
Repeat
Panel keys description
1, PREV/VOL-: In USB / SD playback on this button for the song. FM radio state in the
choice of a press station. Press the volume reduction.
2, PLAY / PAUSE: in USB / SD player status is play / pause. Press to enter the state radio
station automatic search (AUX state useless.)
3, NEXT / VOL +: In USB / SD playback on a song for the Press; in the state short by FM radio
to select the next station. Press the volume increase.
4, PPT: Press once to open the single cycle, single cycle again to cancel.
5, EQ: sound field mode NORMAL → JAZZ → ROCK → POP → CLASSIC →
COUN switch.
6, MODE: Press this key to cycle through the input USB → SD / MMC → AUX → FM. USB
playback, the display "USB" light; SD / MMC playback, the display "SD" light; AUX state, display
"AUX" light; FM state, the display "FM" lit.
