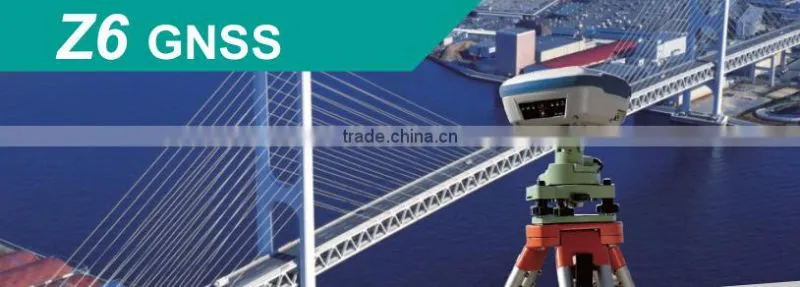

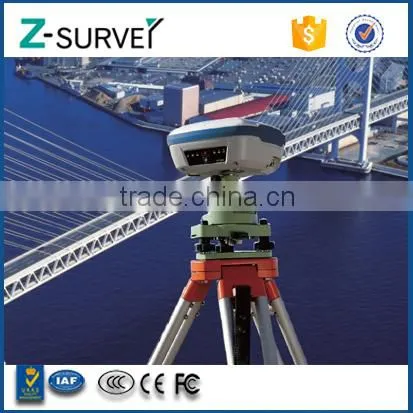

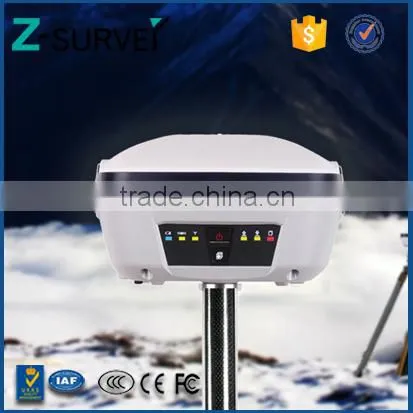

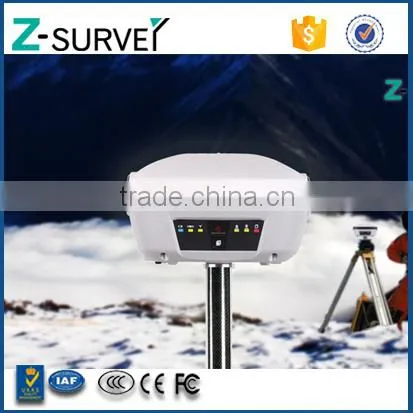

Z-survey Z6 GNSS Receiver, Powerful Survey Equipment, Leica Total Station
The Z-Survey Z6 GNSS is a highly integrated receiver combining GNSS chip, antenna, UHF and GPRS
modules together with the excellent fabrication process, makes you confident of facing any challenge.
With the ability to track every satellite signals from all existing constellations and a wide range of satellite
signals, the Z6 provides more powerful antiinterference ability, higher measurement precision as well as
more optimized solution for very long baselines, which eliminate you the worries in any harsh environment.
Leica total station
Z-survey Z6 GNSS RTK Kit
| Z6 GNSS RTK | 220 Channel | ||
| Part Number | Description | Pcs |
| Z6 Kit w/ Internal Tx/Rx: 450-470 MHz | ||
| Z6 Kit w/ Internal CHC Rx: 450-470 MHz | 1 | |
| 1173 806 217 | Z6 GNSS Receiver | 1 |
| 0402 000 006 | UHF Whip Antenna | 1 |
| 0406 000 038 | Transport Hard Case | 1 |
| 0403 000 038 | GNSS to PC Data Cable | 1 |
| 0101 060 019 | Internal Tx/Rx Datalink leica total station | 1 |
| Z Series Base Accessory Kit | ||
| Z Series Base Accessory Kit | 1 | |
| 0505 990 001 | Battery Charger w/ Power Adapter with Cord | 1 |
| 0405 000 007 | Lithium Battery | 2 |
| 0403 000 043 | H.I. Tape | 1 |
| 0403 000 046 | Tribrach w/ Optical Plummet | 1 |
| 0403 000 044 | Tribrach Adaptor | 1 |
| 0404 000 047 | Extension Pole | 1 |
| 0403 000 108 | External Power Cable | 1 |
| Z Series Rover Accessory Kit | ||
| 0505 010 005 | Z Series Rover Accessory Kit | 1 |
| 0505 990 001 | Battery Charger w/ Power Adapter with Cord | 1 |
| 0405 000 007 | Lithium Battery | 2 |
| 0404 000 004 | 2M Range Pole w/ Bag leica total station | 1 |
leica total station
leica total station
leica total station
| GNSS characteristics | |
| 220 channels | with simultaneously tracked satellite signals |
| - GPS: L1C/A, L1C, L2C, L2E, L5 | |
| - GLONASS: L1C/A,L1P, L2C/A, L2P, L3 | |
| - SBAS: WAAS, EGNOS, MSAS | |
| - Galileo: E1, E5A, E5B (test) | |
| - BeiDou: B1, B2 (optional) | |
| Advanced multipath mitigation technology | |
| Low noise carrier phase measurement leica total station | |
| Performance specifications | |
| Real Time Kinematics (RTK) | - Horizontal: 8 mm + 1 ppm RMS |
| - Vertical: 15 mm + 1 ppm RMS | |
| - Initialization time: typically < 10 s | |
| - Initialization reliability: typically > 99.9% | |
| Post Processing Static | - Horizontal: 3 mm + 0.5 ppm RMS |
| - Vertical: 5 mm + 0.5 ppm RMS | |
| - Baseline Length:≤300 km | |
| Communications leica total station | |
| 1 x RS232 serial port | 1 x high speed USB |
| Integrated 3G modem (WCDMA) | Integrated Bluetooth ® |
| 1 x Radio antenna connector | 1 x GPRS antenna connector |
| CHC radio modem internal Rx: 410430/450470 MHz | |
| Optional radio modem(2) | - Internal Rx/Tx: 403473 MHz |
| - External Tx DL5C: 5W/10W/20W/28W | |
| Protocols | - RTCM2.x, RTCM3.x, CMR, CMR+ input and output |
| - NMEA0183 output | |
| - HCN outputs for GNSS raw data | |
| Data Storage | 4 GB internal memory, up to 32 GB expansion |
| Physical | |
| Size (LxWxH) | 180 x 80 mm (7.1 x 3.2 in) |
| Weight | 1.2 kg with battery (42 oz) |
| Operating temperature | -45 °C to +75 °C (-49°F to 167°F) |
| Storage temperature | -50 °C to +85°C (-58°F to 185°F) |
| Humidity | 100% condensation |
| Waterproof and dust proof | IP67 protected from temporary immersion to depth of 1 meter |
| Shock | survives a 2meter drop on to concrete |
| Electrical leica total station | |
| Power consumption | 2.8W |
| Liion battery capacity | 2200mAh |
| Battery life | typical 4.5 hours in RTK mode |
| External power input | 918 VDC |
| Software(optional) | |
| Landstar field data collection software leica total station | |
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages. leica total station
leica total station
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted
leica total station
CHC will always dedicate the best service to you. leica total station
|
Shanghai Huace Navigation Technology LTD.
599 Gaojing Road, Building C,
Reliable - Powerful - Competitive |
|
