CHC N71 Powerful gps rtk Reference Station Receiver



CHC N71 Powerful GPS rtk , Reference Station Receiver, GNSS

The  CHC  N71  GNSS gps rtk  provides  a  cost­effective  answer  to demanding applications such as

geodetic reference station, academic research, precision agriculture RTK network, deformation monitoring,
centimeter accuracy RTK sensor for marine survey, dredging or any GPS/GNSS machine guidance

when high performances and reliability are required.

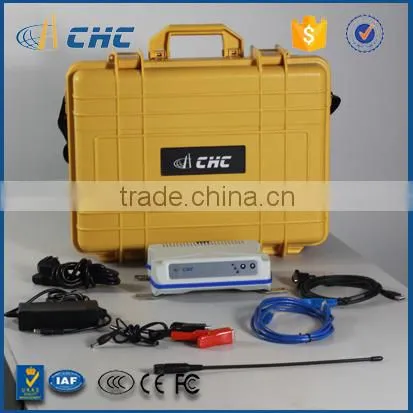

N71 GNSS/ gps rtk Kit

N71 GNSS | 220 Channel
Part Number Description Pcs
N71 Kit
0505 090 001 N71 Kit w/ Internal CHC Rx: 450-470 MHz 1
1171 896 410 N71 GNSS receiver 1
0403 000 038 GPS to PC Data Cable 1
0405 000 005 Power adapter with cord 1
Antenna Kit
0402 000 021 A110G Geodetic GPS Antenna Kit 1
  A110G Geodetic L1 GPS Antenna 1
0402 000 022 A220GR Geodetic GNSS Antenna Kit 1
  A220GR Geodetic GNSS Antenna 1
0402 000 023 C220GR Geodetic Choke Ring Antenna Kit 1
  C220GR Choke Ring GNSS Antenna 1
CORS software
0505 090 003 CRNet CORS software(Up to 3 Station) 1
0505 090 004 CRNet Software 1 Additional Station 1
Additional Accessory
0406 000 010 Transport Hardcase 1
0402 000 006 UHF Whip Antenna (Need Frequency Range) 1
0402 000 018 External GPRS Antenna 1
0403 000 108 External Power Cable 1
0490 000 095 2m Ethernet Cable 1
0403 000 012 5m GPS Antenna Cable (TNC/TNC) 1
0403 000 010 10m GPS Antenna Cable (TNC/TNC) 1

gps rtk

Key Features

N71  gps sensorCHC N71 Powerful GPS rtk , Reference Station Receiver, GNSS



Outstanding GNSS Performances

The N71 offers outstanding performances with proven and innovative GNSS functionality. The future proof multi-constellation tracking feature increases availability in obstructed sky conditions such as construction sites in urban areas while securing RTK accuracy. The very low noise GNSS carrier phase measurement and low level elevation tracking technology make the N71 a powerful reference station solution.



Versatile and rugged
The N71 innovative design integrates a built-in 220-channel GNSS core and optional UHF and GSM/GPRS modules in one single rugged aluminum enclosure. Numerous data formats and output messages can easily be configured to fit into existing GNSS equipment pool.



Exceptional Performances to Price Ratio
CHC N71 is the most affordable high-end multi-applications GNSS sensor solutions for demanding system integrators and RTK network providers.

  GNSS reference staion receiver

Specifications

 N71 gps rtk

    GNSS characteristics

220 channels with simultaneously tracked satellite signals

  • GPS: L1C/A, L2E, L2C, L5
  • GLONASS: L1C/A,L1P, L2C/A, L2P
  • SBAS: WAAS, EGNOS, MSAS
  • Galileo: GIOVE-A and GIOVE-B (test)
  • Advanced multipath mitigation technology
  • Low noise carrier phase measurement with <1 mm precision in a 1 Hz bandwidth.

               Performance specifications
  • Real Time Kinematics (RTK)
    • Horizontal: 10 mm + 1 ppm RMS
    • Vertical: 20 mm + 1 ppm RMS
    • Initialization time: typically < 10 s
    • Initialization reliability: typically > 99.9%
  • Post Processing Static
    • Horizontal: 2.5mm + 1ppm RMS
    • Vertical: 5mm + 1ppm RMS
    • Baseline Length: ≤ 300 km

    Communications
  • 1x LAN port:1x Lemo 10 pin 1 shell, 3 wire serial with power input, 1x USB 4 wire
    • 1 port with RJ45 connector supports links to 10BaseT/100BaseT networks.
    • HTTP, HTTPS, TCP/IP, UDP, FTP, NTRIP Caster, NTRIP Server, NTRIP Client
    • Proxy server support
    • Routing table support
    • NTP Server, NTP Client support
    • UPnP and Zeroconf support
    • Email Alerts and Position Monitoring
  • Optional internal GPRS modem: - Quad-band international modem with SMA antenna connector
  • Optional radio modem:
    • Internal Rx: 410-430(3) / 430-450(3) / 450-470 MHz
    • External Tx DL5: 1W - 20W adjustable         gps rtk
  • Protocols:Internal data logging storage capacity: 64 Mb
    • Correction formats; RTCM2.1, RTCM2.3, RTCM3.0, CMR, CMR+
    • Position/Status I/O: NMEA0183 v2.30, GSOF
    • Observables: RT17, RT27, BINEX, RTCM 3.x
    • Up to 50 Hz output standard

    Physical
  • Size (LxWxH): 195 x 145 x 51 mm (7.7 x 5.7 x 2.0in)
  • Weight: 1.35 kg (48 oz)
  • Operating temperature: -30 °C to +65 °C (-22°F to 149°F)
  • Storage temperature: -40 °C to +75°C (-40°F to 167°F)
  • Humidity: 100% condensation
  • Waterproof and dust proof: IP65 and MIL-STD 810F
  • Shock: survives a 1.5-meter drop on to concrete

    Electrical
  • Power consumption: 2.6 W nominal, dependent on usersettings
  • External power input: 9-18 VDC

    User Interface
  • PC Control Utility via Serial
    • Allows for advance receiver setup of UHF, GPRSModem, data logging
  • Web User Interface
    • Secure
    • Allows remote configuration, data retrieval and firmware updates
    • Setup of multiple streaming / monitoring ports

    Antenna option

 A220GR GNSS Geodetic Antenna, and C220GR GNSSChoke Ring Antenna

Packaging Details

N71 gps rtk

CHC N71 Powerful GPS rtk , Reference Station Receiver, GNSS

CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.



Production Lines

N71 GPS rtk

CHC N71 Powerful GPS rtk , Reference Station Receiver, GNSS

 CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
