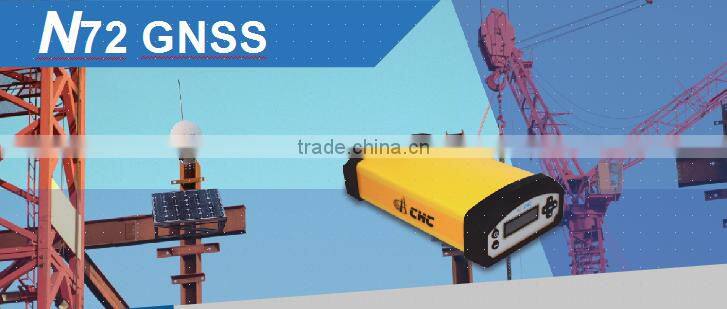

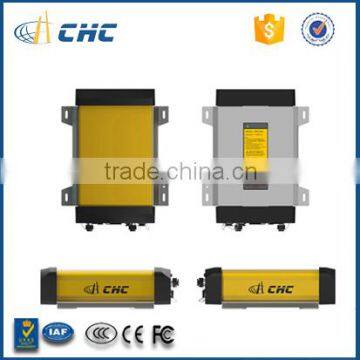

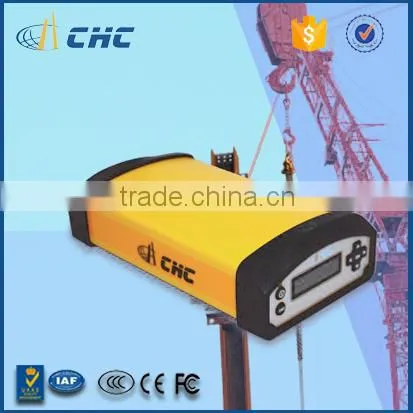

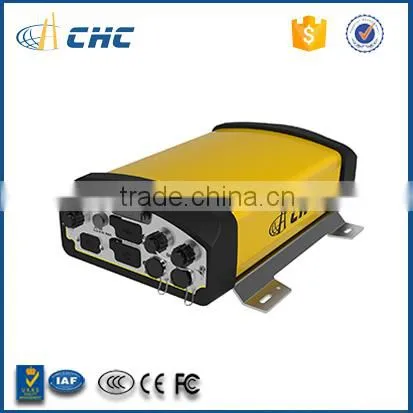

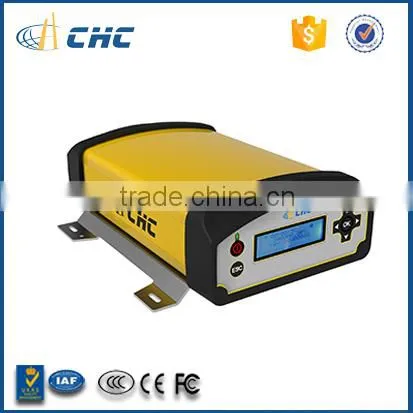

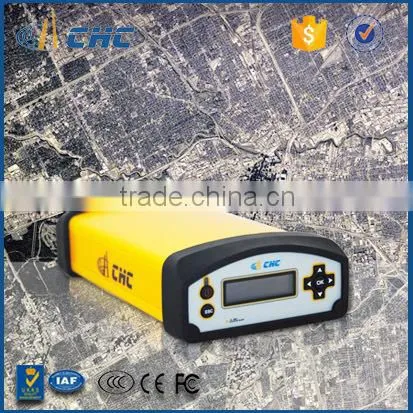

CHC N72 Powerful GPS Sensor Reference Station Receiver
The CHC N72 GNSS sensor provides advanced multi-industry solutions to various demanding applications such as mining monitoring, geologic hazard monitoring, water conservancy monitoring, machine control, vehicle dispatching, etc.
Easy-to-use, compact and rugged, designed for advanced monitoring performances, the N72 GNSS sensor makes field work more comfort for the surveyors.
N72 GNSS/GPS Sensor Kit
| N72 GNSS | 220 Channel | ||
| Part Number | Description | Pcs |
| N72 Kit | ||
| 0505 150 001 | N72 GNSS Kit | 1 |
| 1172080 000 021 | N72 GNSS receiver | 1 |
| 0403 000 038 | GPS to PC Data Cable | 1 |
| 0405 000 005 | Power adapter with cord | 1 |
| Antenna Kit | ||
| 0402 000 021 | A110G Geodetic GPS Antenna Kit | 1 |
| A110G Geodetic L1 GPS Antenna | 1 | |
| 0402 000 022 | A220GR Geodetic GNSS Antenna Kit | 1 |
| A220GR Geodetic GNSS Antenna | 1 | |
| 0402 000 023 | C220GR Geodetic Choke Ring Antenna Kit | 1 |
| C220GR Choke Ring GNSS Antenna | 1 | |
| CORS software | ||
| 0505 090 003 | CRNet CORS software(Up to 3 Station) | 1 |
| 0505 090 004 | CRNet Software 1 Additional Station | 1 |
| Additional Accessory | ||
| 0406 000 010 | Transport Hardcase | 1 |
| 0402 000 006 | UHF Whip Antenna (Need Frequency Range) | 1 |
| 0402 000 018 | External GPRS Antenna | 1 |
| 0403 000 108 | External Power Cable | 1 |
| 0490 000 095 | 2m Ethernet Cable | 1 |
| 0403 000 012 | 5m GPS Antenna Cable (TNC/TNC) | 1 |
| 0403 000 010 | 10m GPS Antenna Cable (TNC/TNC) | 1 |
1 gps sensor

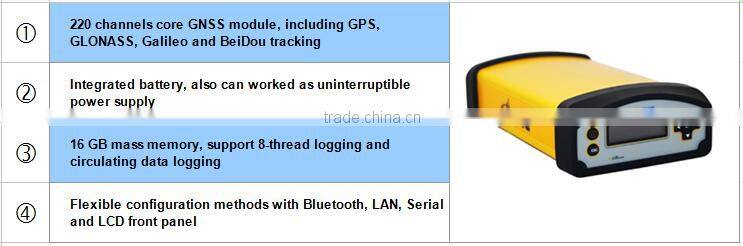

Excellent Data Management Capability
With 16 GB mass memory, N72 supports continuous data logging for 3 years with 15 s. In addition, N72 supports external portable hard drive and USB flash disk which enable huge storage extension. Meanwhile, various formats of data can be stored simultaneously. Combined with the technology of circulating data storage and 8-thread storage, the up-to-date data can be recorded. While for data output, local USB port, FTP push and web page download are all available for users. Also, data could be directly stored into the external portable hard drive and USB flash disk.
Flexible Configuration Methods
N72 adopts liquid crystal display for front panel. Users can configure the system parameters through Network, serial ports and front panel randomly.
Powerful Web Page
Based on Linux system, users can remotely access the receiver by web browser to realize multiple operations, such as checking the running status, setting the outputs of data, downloading the observable data, FTP pushing, Email alerting, remotely restarting, modifying system configuration, firmware updating and registering
Diverse Power Supply Modes
Integrated with built-in 7800 mAh battery, N72 may survive continuous working for 12 hours. The internal battery can be charged automatically and when it is fully charged, the receiver will cut off the power supply which may increase the service life of the battery. Under the situation of power supply interruption, the internal battery can work as UPS, realizing the seamless switch between internal and external power supply. Also, N72 supports the power supply from the complement of wind, light and electricity.gps sensor
N72 gps sensor
GNSS characteristics |
220 channels with simultaneously tracked satellite signals
|
Performance specifications |
|
Communications |
|
Physical |
|
Electrical |
|
User Interface |
|
Antenna option |
A220GR GNSS Geodetic Antenna, and C220GR GNSSChoke Ring Antenna |
N71 gps sensor
CHC provides the most reliable packaging to perfictly protect the equipment from transportation damages.
N71 GPS Sensor
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure every device on your hands is with good quality and can be trusted.
N71 gps sensor
CHC will always dedicate the best service to you.
|
Shanghai Huace Navigation Technology LTD.
599 Gaojing Road, Building C,
Reliable - Powerful - Competitive |
|
CHC N71 GPS Sensor will surely make your work more efficient!
