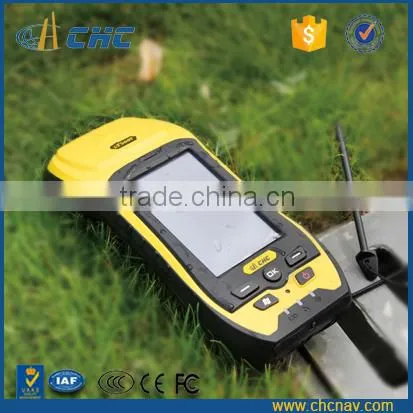

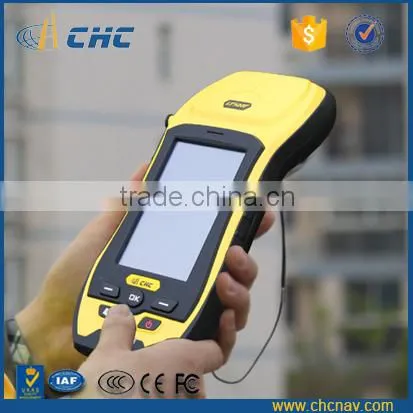

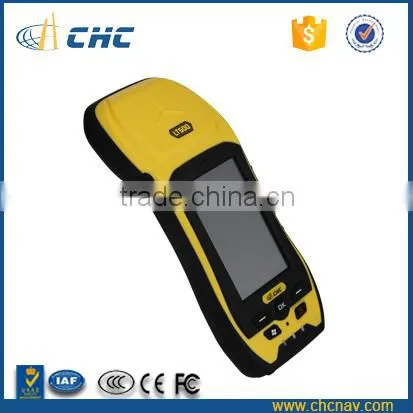

CHC LT500T magellan handheld gps survey instrument data controller
handheld gps
The LT500 series is a rugged, versatile GNSS handheld receiver, that LT500N/LT500T/LT500H covers three
accuracy ranges from submeter to centimeter accuracy and is the most cost effective positioning solution for
Survey, Construction and GIS professionals.
| LT500T GNSS (DM Level) | 220 Channel L1 GPS+GLO+BDS | ||
| Part Number | Description | Pcs |
| LT500T Kit | ||
| 0505 120 005 | LT500T Kit | 1 |
| 1250 341 222 | LT500T GNSS Receiver | 1 |
| 0406 000 041 | Carry Pouch | 1 |
| 0403 000 083 | Data Cable | 1 |
| 0405 000 063 | Li-ion battery | 1 |
| 0405 000 099 | Power Adapter | 1 |
| 0103 020 183 | Stylus | 1 |
| Software | ||
| 0408 000 008 | SurvCE GPS Only Data Collection Software | 1 |
| 0408 000 021 | DigiTerra Professional Software | 1 |
LT500H L1/L2 GPS+GLONASS, L1 BDS, L1 Galileo Tracking
The LT500H addresses a centimeter level position accuracy utilizing the internal cellular modem to access a local reference station network under RTK working mode.
LT500T L1 GPS+GLONASS+BDS+Galileo
The LT500T is designed to work in the projects requiring the decimeter accuracy, in the application as utilities, underground pipelines and land records management when high accuracy is required.d gps
LT500N L1 GPS
Embedded with professional GPS engine, the LT500N prepares the user to capture submeter data with SBAS differential correction signals or DGPS correction information from the local reference station.
Productive sensors
User productivity is greatly enhanced with the builtin gyroscope, an innovative laser plummet for positioning the accurate handheld receiver over a point, an Ecompass for showing the direction and a Gsensors for leveling. Optional RFID and 1D/2D bar code scanners help automate complex inventory tasks.
Stay connected
Builtin standard 3.5G cellular modem and WiFi keep you connected to RTK corrections' networks and provide seamless internet access. Bluetooth is available for connection with other hardware such as laser range finder, underground pipeline locator.
KEY FEATURES
|
|
|
|
|
|
CHC Navigation are dedicated to providing reliable and competitive GNSS solutions with high performance. Most of CHC products have achieved IP67 dustproof and waterproof level.
| Type | LT500H | LT500T | LT500N |
| Channel | 120 | 220 | 12 |
| Satellite Signals | GPS: L1, L2. GLONASS: L1, | GPS: L1 GLONASS: L1. | GPS: L1 |
| Update Rate | 1 Hz, or higher | 1 Hz, or higher | 1 Hz, or higher |
| Protocols | RTCM2.x/RTCM3.x | RTCM2.x/RTCM3.x | RTCM2.x |
| Cold Start | < 50s | < 45s | < 60s |
| Hot Start | < 35s | < 30s | < 30s |
| Reacquisition | < 1s | < 2s | < 1s |
| Stand alone GPS | 1.2m | 2m | 2.5m |
| Realtime Correction | 1cm | 25cm | 60cm |
| With SBAS | 50cm | 50cm | 1m |
| Real-time Correction | Horizontal: 1cm | Horizontal: 25cm | Horizontal: 60cm |
| Post Processing Static | Horizontal: 5 mm ± 1 ppm | Horizontal: 5 mm ± 1 ppm | Horizontal: 5 mm ± 1 ppm |
System Configuration | · Windows® Embedded Handheld 6.5 operation system · Processor: 1 GHz · Memory · 5.0 megapixel camera with autofocus |
| Display | · 4.3” sunlight readable screen · Resolution: WVGA 480 X 800 pixel |
Communications | · Cellular Modem · Bluetooth: 2.1 + EDR · WiFi: 802.11 b/g · USB Port |
Physical | · Size (LxWxH): 236 x 97 x 77 mm (9.3 x 3.8 x 3.0 in) · Weight: 897 g with battery (31.6 oz) · Operating temperature: -30 °C to 70 °C (-22°F to 158 °F) · Storage temperature: -40 °C to 80 °C (-40°F to 176 °F) · Dust proof and waterproof: IP67 · Shock: survives a 1.2meter drop on to concrete |
Electrical | · Li-ion battery capacity: 11.1V, 2600 mAh · Battery life: up to 13 hours (Autonomous GNSS usage) · Charging time: 4 hours (typical) |
Sensors | · Gyroscope · Laser plummet · Ecompass · Gsensor · RFID(optional) · 1D and 2D bar code scanner(optional) |
handheld gps
CHC provides the most reliable packaging to perfectly protect the equipment from transportation damages.
Rugged design helps you to work in kind of hursh environment. handheld gps
No matter it is traditional survey work or GIS work, the built in high performance GNSS models makes your work more efficeint and easy.
CHC has the latest production facilities, professional production lines and strict testing requirement to make sure
every device on your hands is with good quality and can be trusted.
Founded in 2003, CHC designs, manufactures and markets a wide range of professional GPS/GNSS solutions in more than 100 countries. Headquartered in Shanghai (China) and with offices worldwide CHC is a leading GNSS manufacturer with a strong international presence and employs more than 800 professionals worldwide.
